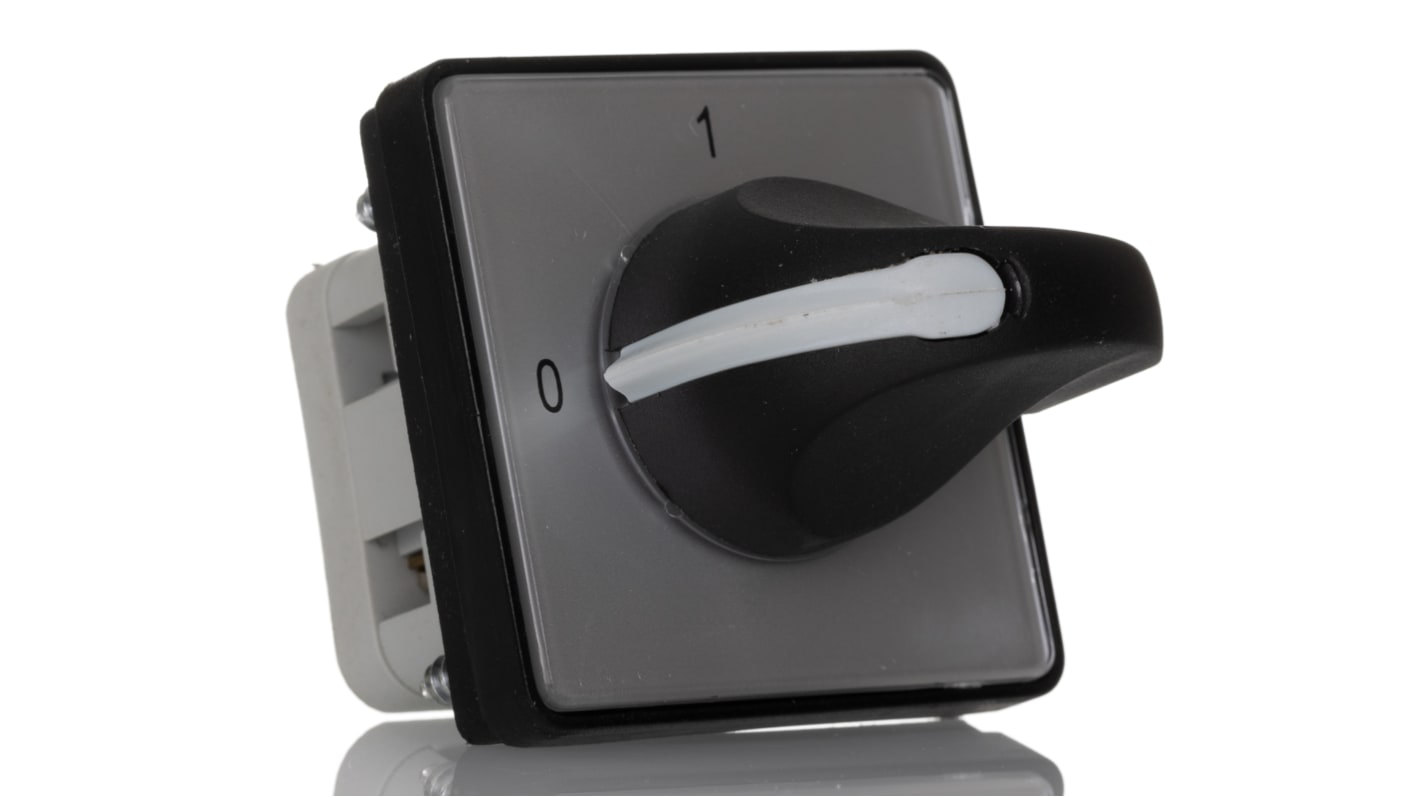

RS PRO, SP 2 Position 90° Rotary Cam Switch, 500V ac, 12A, Knob Actuator
- RS stock no.:
- 265-7690
- Manufacturer:
- RS PRO
53 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Price (Excl VAT) Each
R 231,31
(exc. VAT)
R 266,01
(inc. VAT)
| Units | Per unit |
| 1 + | R 231,31 |
- RS stock no.:
- 265-7690
- Manufacturer:
- RS PRO
- COO (Country of Origin):
- ES
RS PRO Single Pole 2 Position 90° Rotary Cam Switch (500V/ 12A)
A tough and reliable 90° rotary cam switch with Single Pole configuration and 2 selectable positions designed for harsh industrial environments. Constructed with Silver Alloy contacts for a long mechanical and electronic lifespan.
The 2 position cam switch is enclosed in a Thermoplastic casing for impact resistance with captive screw clamps and 4 fixing holes for a secure installation, removable protection covers on all terminals and an IP rating of IP65 once installed providing excellent protection from dust, and water.
Easy to operate with knob actuation the 2 position cam switch features a plate size of 50mm x 50mm marked with symbols 0 and 1 and is easily connected using 2 x 4mm solid or 2 x 2.5mm flexible conductors. A hardwearing and reliable rotary cam switch ideal for industrial use.
The 2 position cam switch is enclosed in a Thermoplastic casing for impact resistance with captive screw clamps and 4 fixing holes for a secure installation, removable protection covers on all terminals and an IP rating of IP65 once installed providing excellent protection from dust, and water.
Easy to operate with knob actuation the 2 position cam switch features a plate size of 50mm x 50mm marked with symbols 0 and 1 and is easily connected using 2 x 4mm solid or 2 x 2.5mm flexible conductors. A hardwearing and reliable rotary cam switch ideal for industrial use.
Features and Benefits
Rotary cam switch
Single Pole configuration
2 positions
Marked 0 and 1
IP65 rated
Contact rating of 12 A
Voltage rating of 500Vac
Knob actuator
Class II double insulation
Operating temperature of -5 to +40°C
Short circuit protection
Pollution degree 3
Thermoplastic case
Plate dimensions of 50 x 50mm
Single Pole configuration
2 positions
Marked 0 and 1
IP65 rated
Contact rating of 12 A
Voltage rating of 500Vac
Knob actuator
Class II double insulation
Operating temperature of -5 to +40°C
Short circuit protection
Pollution degree 3
Thermoplastic case
Plate dimensions of 50 x 50mm
Approvals and Standards: CE/ UKCA, EN 60947-3, UL508
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Attribute | Value |
|---|---|
| Pole and Throw Configuration | SP |
| Cam Switch Type | Rotary Cam Switch |
| Normal State Configuration | 1NO |
| Electrical Phase | 1 |
| Maximum Current | 12A |
| Maximum Voltage | 500V ac |
| Number of Positions | 2 |
| Terminal Type | Screw |
| Angle of Throw | 90° |
| Length | 50mm |
| Width | 50mm |
| Depth | 63.3mm |
| Actuator Type | Knob |
| Dimensions | 50 x 50 x 63.3mm |
