- RS stock no.:
- 247-9229
- Mfr. Part No.:
- S8101-46R
- Manufacturer:
- HARWIN
1250 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each (On a Tape of 50)
R 3,759
(exc. VAT)
R 4,323
(inc. VAT)
Units | Per unit | Per Tape* |
50 - 200 | R 3,759 | R 187,95 |
250 - 450 | R 3,665 | R 183,25 |
500 - 950 | R 3,555 | R 177,75 |
1000 + | R 3,412 | R 170,60 |
*price indicative |
- RS stock no.:
- 247-9229
- Mfr. Part No.:
- S8101-46R
- Manufacturer:
- HARWIN
Technical data sheets
Legislation and Compliance
Not Applicable
- COO (Country of Origin):
- GB
Product Details

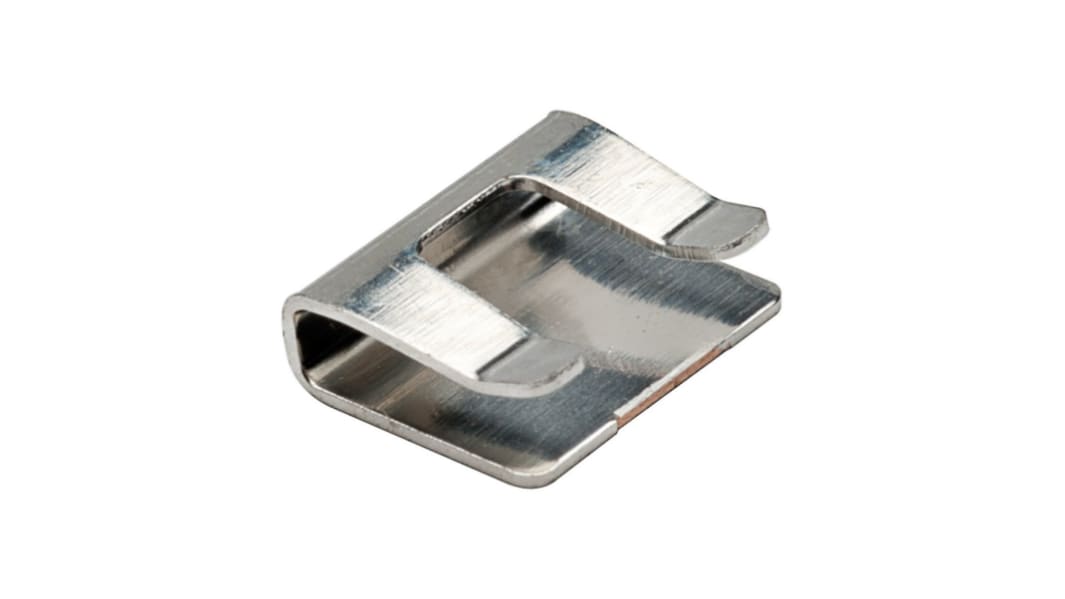

EZ Boardware SMT Cable Clips
A range of EZ Boardware SMT Cable Clips for use with insulated cables from 0.9 to 3 mm diameter, can be used with grounding coaxial cables. The EZ Boardware Copper alloy Tin plated SMT Cable Clips can be reflow soldered along with other components and have a low profile and small footprint.
Coax Grounding and Cable Retention:
788-4833 : 1.12 mm diameter: 2 x 0.9 mm diameter
788-4836 : RG178, RG179, RG316: 2 x 1.0 mm diameter
788-4830 : RG174, RG179, RG316: 3 x 1.0 mm or 2 x 1.5 mm diameter
788-4849 : 2 x 1.5 mm or 1 x 2.0 mm diameter
788-4842 : RG58: 3 x 2.0 mm or 1 x 3.0 mm diameter
Coax Grounding and Cable Retention:
788-4833 : 1.12 mm diameter: 2 x 0.9 mm diameter
788-4836 : RG178, RG179, RG316: 2 x 1.0 mm diameter
788-4830 : RG174, RG179, RG316: 3 x 1.0 mm or 2 x 1.5 mm diameter
788-4849 : 2 x 1.5 mm or 1 x 2.0 mm diameter
788-4842 : RG58: 3 x 2.0 mm or 1 x 3.0 mm diameter
Specification
Attribute | Value |
---|---|
Cable Clip/Clamp Style | Grounding Clip |
Maximum Bundle Diameter | 1mm |
Affixing Method | Surface Mount |
Material | Tin Plated Copper Alloy |
Colour | Silver |
Operating Temperature Range | -40 → +105 °C |
Dimensions [L x W x D] | 5.00 x 4.00 x 1.50mm |
