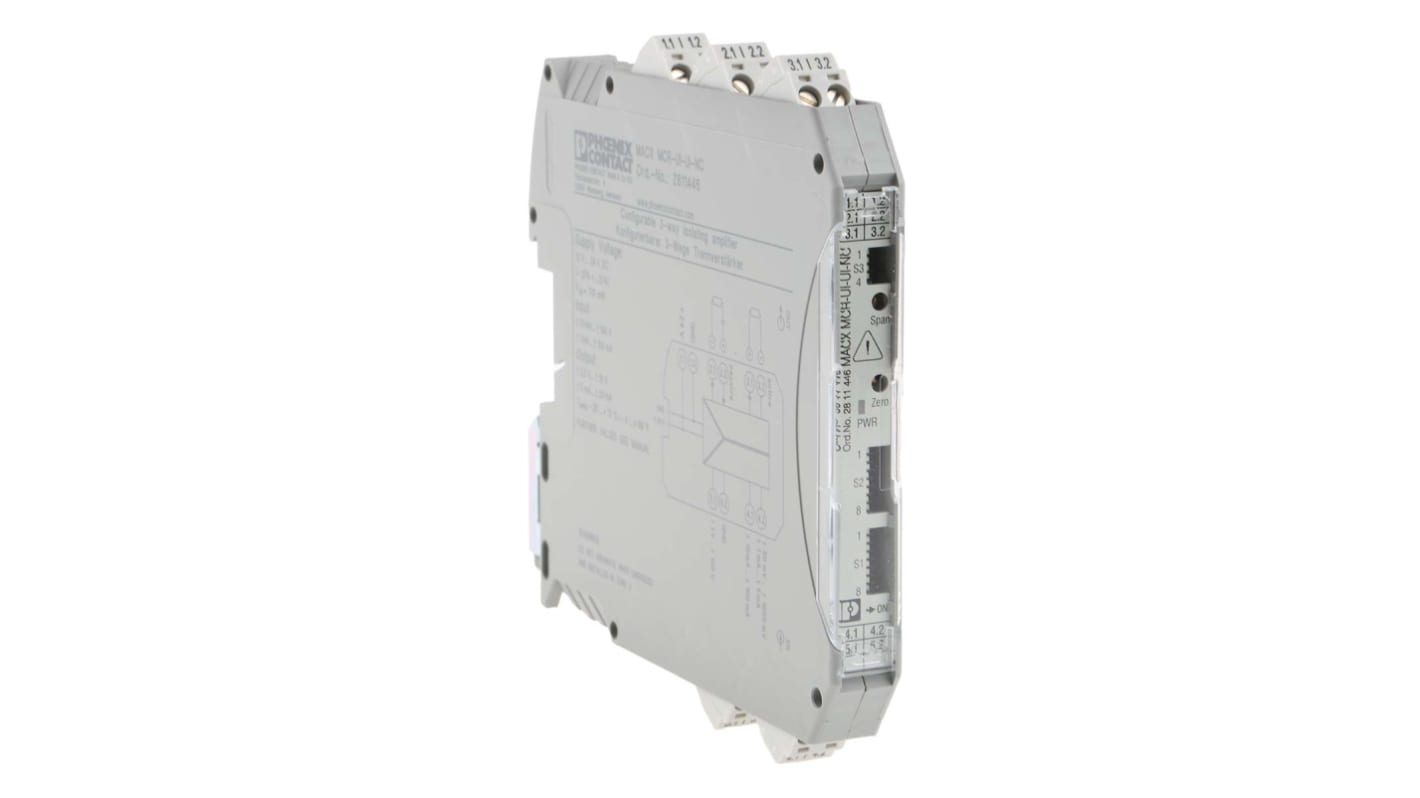

Phoenix Contact 1 Channel Galvanic Barrier, Isolating Amplifier, Current, Voltage Input, Current, Voltage Output, ATEX
- RS stock no.:
- 715-7967
- Mfr. Part No.:
- 2811446
- Manufacturer:
- Phoenix Contact
On back order for despatch 2024/05/20
Added
Price (Excl VAT) Each
R 8 505,34
(exc. VAT)
R 9 781,14
(inc. VAT)
| Units | Per unit |
| 1 + | R 8 505,34 |
- RS stock no.:
- 715-7967
- Mfr. Part No.:
- 2811446
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Configurable Analogue 3 way isolation Amplifier
Configurable input and oytput signals
3 way isolation
Low power consumption
Power supply possible through the foot element (T-Connector)
3 way isolation
Low power consumption
Power supply possible through the foot element (T-Connector)
Group and Category
II 3 G Ex nA nL II T4
Specification
Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Module Type | Isolating Amplifier |
| Barrier Type | Galvanic Barrier |
| Output Signal Type | Current, Voltage |
| Maximum Voltage | 100V |
| Interface | HART |
| Hazardous Area Certification | ATEX |
| Input Signal Type | Current, Voltage |
| Safety Current Resistance | 10Ω |
| Supply Voltage | 12 → 24V dc |
| Maximum Current | 100mA |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Safety Current Maximum | 100mA |
| Safety Voltage Maximum | 100 V |
| Series | MACX MCR-UI-UI |
| Operating Temperature Range | -20 → +70°C |
