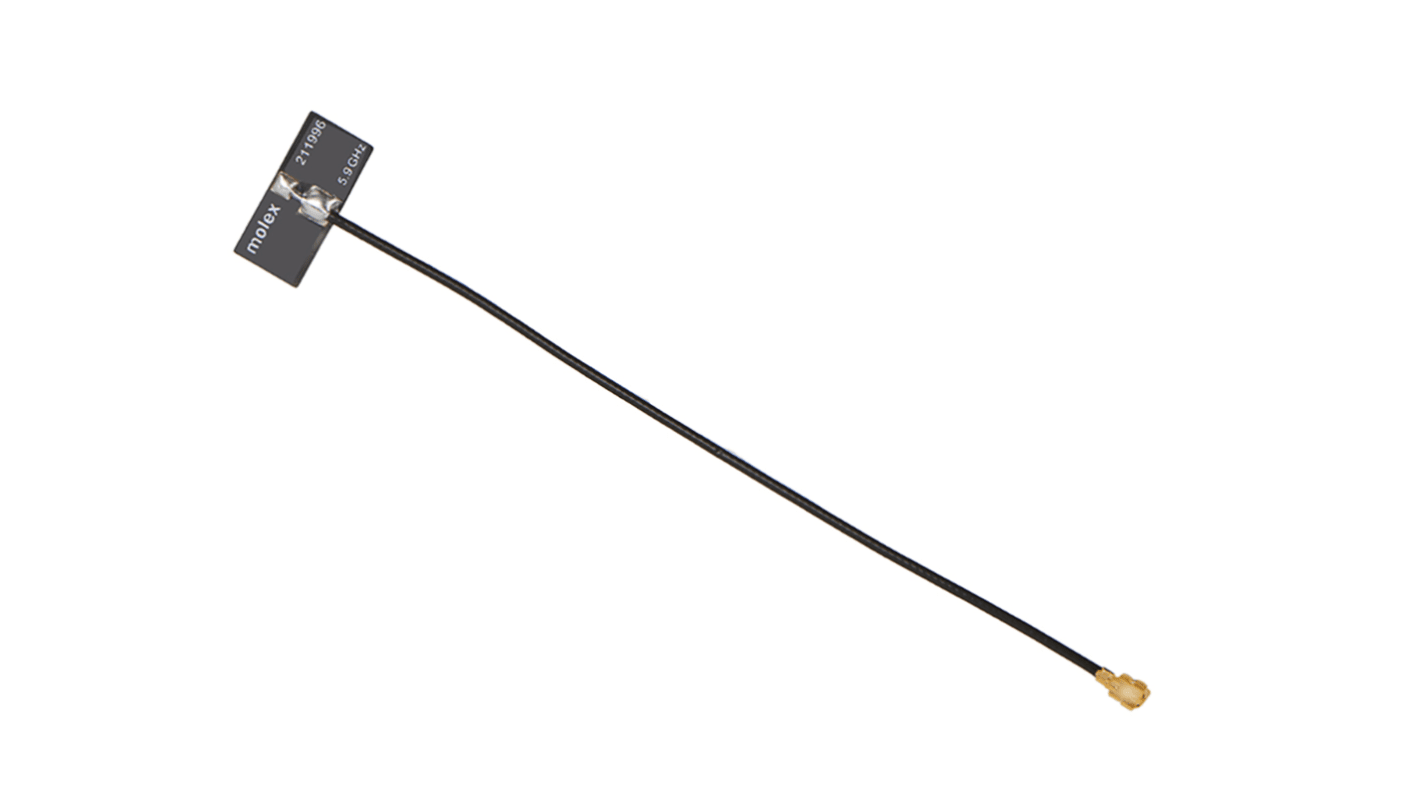

Molex 211996-0100 Patch WiFi Antenna, Bluetooth (BLE), WiFi
- RS stock no.:
- 189-6012
- Mfr. Part No.:
- 211996-0100
- Manufacturer:
- Molex
30 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Pack of 5)
R 18,236
(exc. VAT)
R 20,971
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 + | R 18,236 | R 91,18 |
| *price indicative | ||
- RS stock no.:
- 189-6012
- Mfr. Part No.:
- 211996-0100
- Manufacturer:
- Molex
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Easy peel and stick - Enables instant application on non-metal surface
Cable and connector can be customized - Provides design flexibility
Highly compact - Offers significant space savings while supporting high performance needs
micro-coaxial cable(50, 100, 150, 200, 250, 300mm options) - Extends connectivity for maximum design flexibility
Dual band balanced antenna with ground-plane independent design - Reduces engineering resources and costs needed to mitigate PCB ground-induced radiation
UFL-type connector - Secures to the application’s device radio
Topside of the poly-flexible antenna - Makes for easy peel-and-stick mounting anywhere within the device chassis
Rigid PCB antenna with two holes on both sides for screw-nut mounting - Offers more robust securing of antenna to device chassis in rugged applications
Double-sided adhesive on the antenna reverse - Enables instant application anywhere on the inner wall of the device chassis by just removing its tape liner
micro-coaxial cable (50, 100, 150, 200, 250, 300mm options) - Extends connectivity for maximum design flexibility
Cable and connector can be customized - Provides design flexibility
Highly compact - Offers significant space savings while supporting high performance needs
micro-coaxial cable(50, 100, 150, 200, 250, 300mm options) - Extends connectivity for maximum design flexibility
Dual band balanced antenna with ground-plane independent design - Reduces engineering resources and costs needed to mitigate PCB ground-induced radiation
UFL-type connector - Secures to the application’s device radio
Topside of the poly-flexible antenna - Makes for easy peel-and-stick mounting anywhere within the device chassis
Rigid PCB antenna with two holes on both sides for screw-nut mounting - Offers more robust securing of antenna to device chassis in rugged applications
Double-sided adhesive on the antenna reverse - Enables instant application anywhere on the inner wall of the device chassis by just removing its tape liner
micro-coaxial cable (50, 100, 150, 200, 250, 300mm options) - Extends connectivity for maximum design flexibility
Specification
Attribute | Value |
|---|---|
| RF Protocols | Bluetooth (BLE), WiFi |
| Frequency Range | 5.9 GHz |
| Antenna Physical Form | Patch |
| Mounting Type | Adhesive Mount |
| Gain | 5.5dBi |
| Cable Length | 100mm |
| Antenna Directivity | Omnidirectional |
| Weight | 0.555g |
| Width | 7.60mm |
| Series | 211996 |
