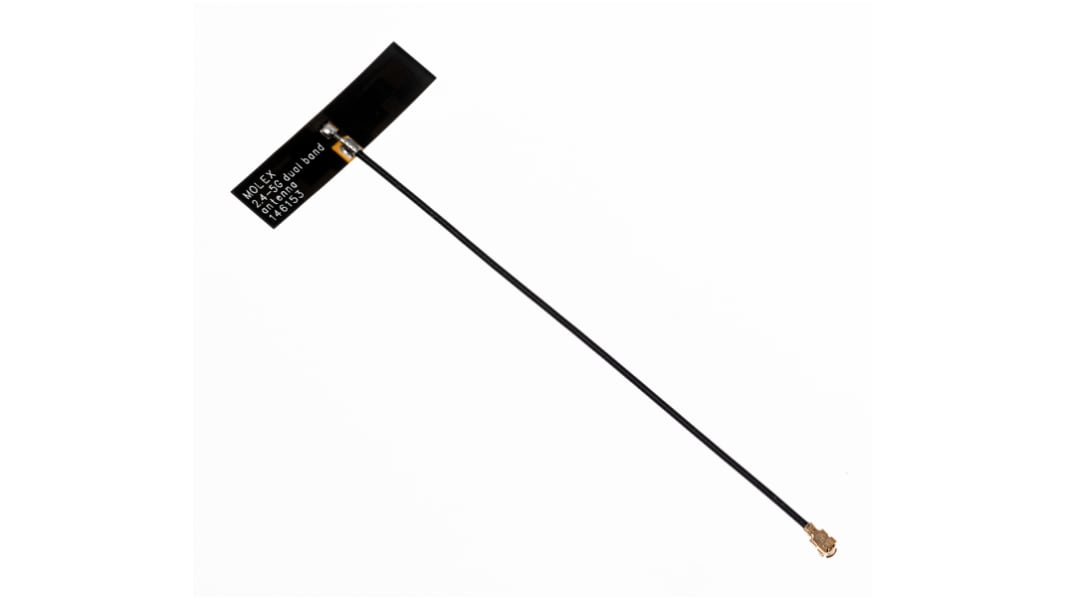

Molex 146153-0100 T-Bar WiFi Antenna, WiFi (Dual Band)
- RS stock no.:
- 172-2982
- Mfr. Part No.:
- 146153-0100
- Manufacturer:
- Molex
On back order for despatch 2024/08/22
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Box of 3200)
R 35,787
(exc. VAT)
R 41,155
(inc. VAT)
| Units | Per unit | Per Box* |
| 3200 + | R 35,787 | R 114 518,40 |
| *price indicative | ||
- RS stock no.:
- 172-2982
- Mfr. Part No.:
- 146153-0100
- Manufacturer:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
2.4 GHz / 5 GHz Balance Wi-Fi Antennas with Cable, Molex
These balance Wi-Fi antennas from Molex are available in two lengths: 100 mm (9076517) and 250 mm (9076510). With a micro-coaxial cable, both antennas ensure that you have a consistent and fast Wi-Fi connection for use with your devices.
The Wi-Fi antennas are ideal for use within applications such as Machine to Machine communication (M2M), smartmeters, Industrial, Scientific & Medical (ISM) band systems, cameras, navigation devices, mobile gaming devices and ZigBee IEEE 802.15.4 devices.
Features & Benefits of the Wi-Fi Antennas
• Dual band (2.4 GHz and 5 GHz)
• Double-sided adhesive mounting
• Linear polarization
• Omnidirectional radiation pattern
• Ground-plane independence
• High levels of radiation efficiency
• Operating temperature range: -30° C to +85° C
The Wi-Fi antennas are ideal for use within applications such as Machine to Machine communication (M2M), smartmeters, Industrial, Scientific & Medical (ISM) band systems, cameras, navigation devices, mobile gaming devices and ZigBee IEEE 802.15.4 devices.
Features & Benefits of the Wi-Fi Antennas
• Dual band (2.4 GHz and 5 GHz)
• Double-sided adhesive mounting
• Linear polarization
• Omnidirectional radiation pattern
• Ground-plane independence
• High levels of radiation efficiency
• Operating temperature range: -30° C to +85° C
2.4GHz Antennas
Specification
Attribute | Value |
|---|---|
| RF Protocols | WiFi (Dual Band) |
| Internal/External | Internal |
| Frequency Range | 2.4 GHz, 5 GHz |
| Antenna Physical Form | T-Bar |
| Antenna Mounting Type | Adhesive |
| Mounting Type | Adhesive Mount |
| Gain | 3, 4dBi |
| Antenna Directivity | Omnidirectional |
| Cable Length | 100mm |
| Weight | 0.574g |
| Width | 9mm |
| Series | 146153 |
