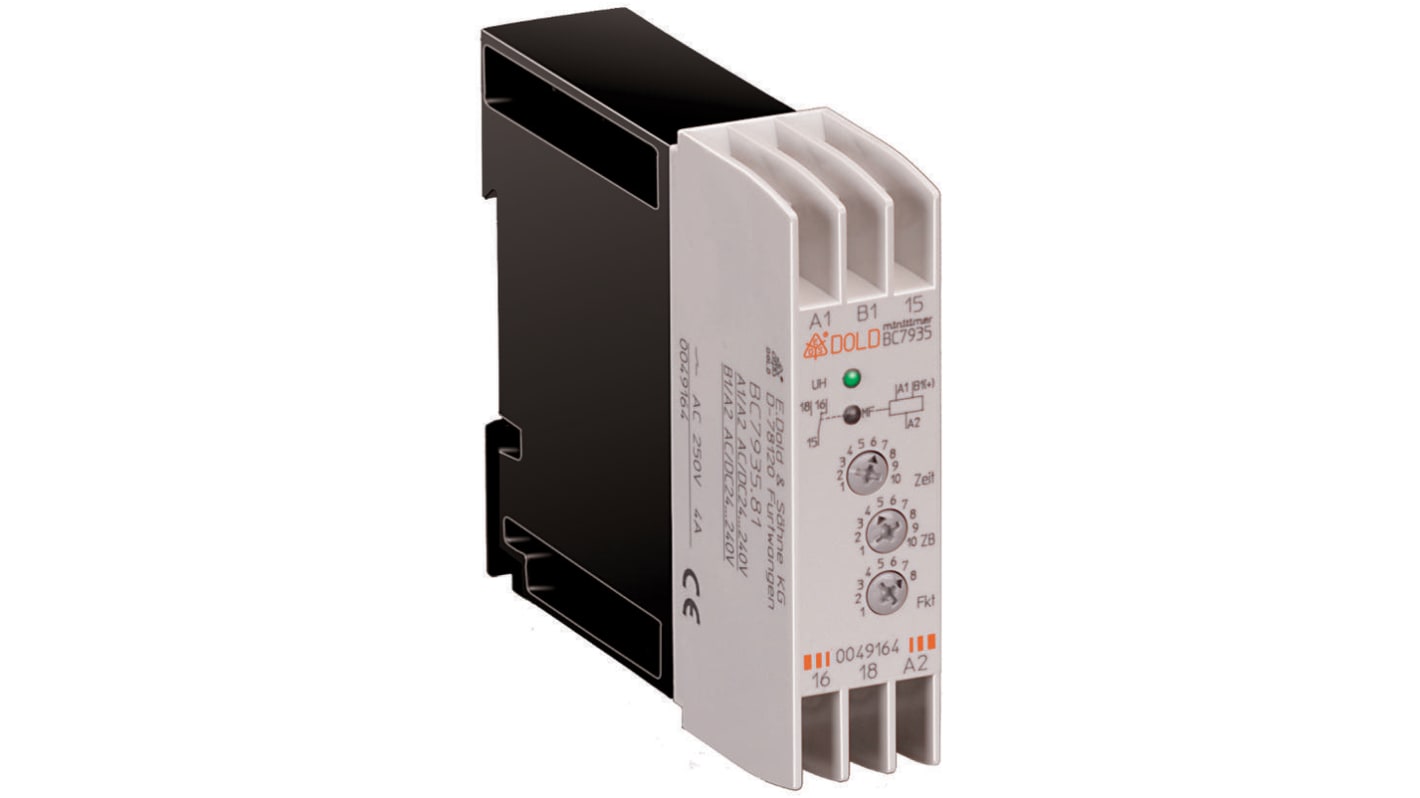

Dold BC7935N Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.5 → 10s, SPDT
- RS stock no.:
- 358-7178
- Mfr. Part No.:
- BC7935N.81 AC/DC24-240V 0.05S-300H
- Manufacturer:
- Dold
On back order for despatch 2024/05/21
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 2 820,65
(exc. VAT)
R 3 243,75
(inc. VAT)
| Units | Per unit |
| 1 - 4 | R 2 820,65 |
| 5 - 9 | R 2 750,13 |
| 10 + | R 2 667,63 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS stock no.:
- 358-7178
- Mfr. Part No.:
- BC7935N.81 AC/DC24-240V 0.05S-300H
- Manufacturer:
- Dold
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Multi-functional and multi-voltage relay (BC7935)
Time range from 0.05 s to 300 h can be adjusted in 10 time ranges
8 functions can be configured (response delay, fallback delay, response and fallback delay, pulse on, pulse off, pulse-generating, pulse-forming, timed)
Multi-voltage input 24 → 240 Vac / Vdc
1 changeover
3 LED indicators: voltage supply, contact position, flashing indicator for time lapse
8 functions can be configured (response delay, fallback delay, response and fallback delay, pulse on, pulse off, pulse-generating, pulse-forming, timed)
Multi-voltage input 24 → 240 Vac / Vdc
1 changeover
3 LED indicators: voltage supply, contact position, flashing indicator for time lapse
Standards
Complies with DIN EN 61 812-1
Specification
Attribute | Value |
|---|---|
| Supply Voltage | 24 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Mode of Operation | Flash Start with Impulse, Fleeting ON Break, Fleeting ON Make, Operate Delay, Operate/Release Delay, Pulse Delay, Pulse Former, Release Delay |
| Time Range | 0.5 → 10s |
| Number of Contacts | 1 |
| Number of Timer Functions | Multi Function |
| Contact Configuration | SPDT |
| Time Increment | Hours, Minutes, Seconds |
| Maximum Current | 3A |
| Maximum Voltage | 240V ac/dc |
| Terminal Type | Screw |
| Power Supply | External |
| Width | 22.5mm |
| Minimum Voltage | 24V ac |
| Maximum Operating Temperature | +60°C |
| Length | 84mm |
| Depth | 97mm |
| Series | BC7935N |
| Time Delay | (Recovery) <=50ms |
| Minimum Operating Temperature | -20°C |
