Product Details

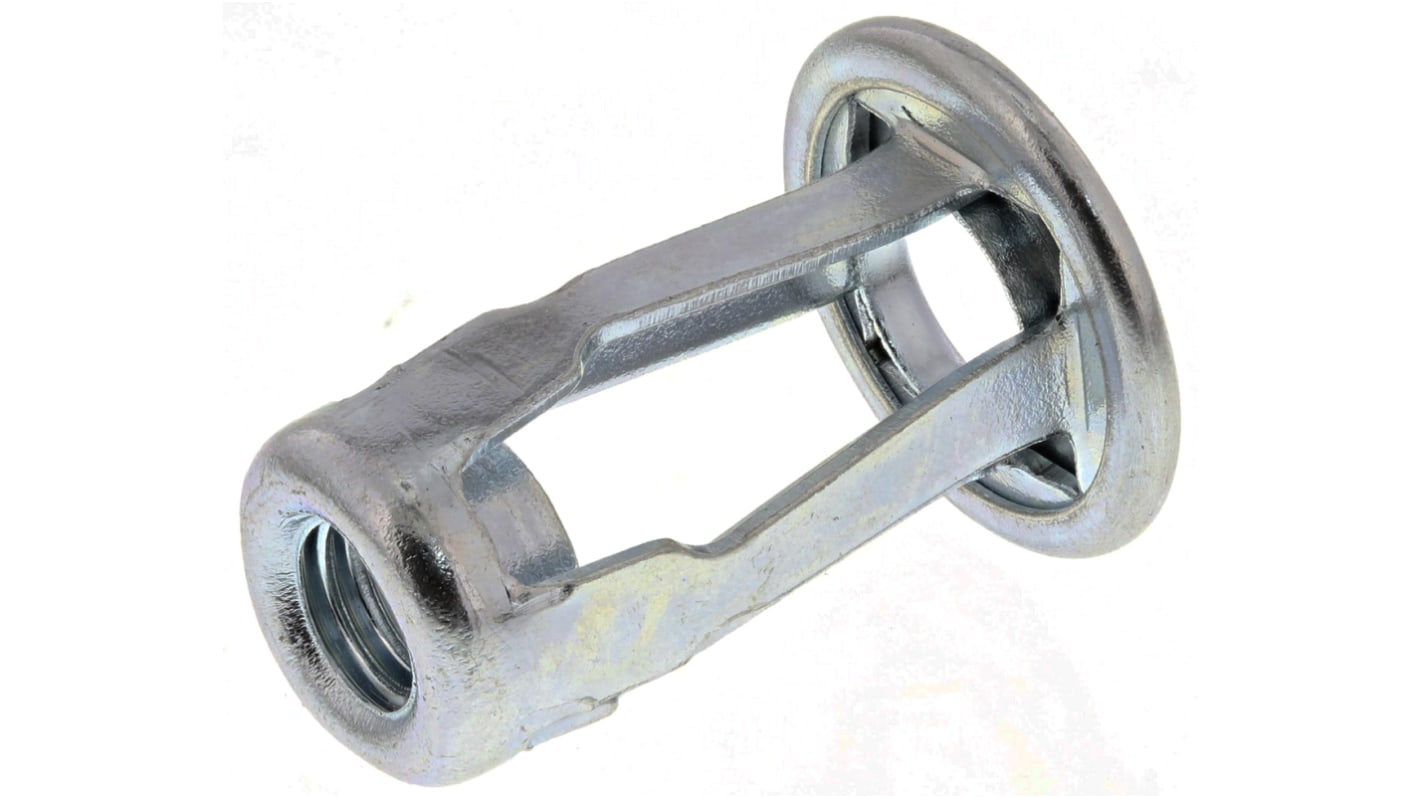

RS PRO Bright Zinc-Plated, M6 Steel Threaded Insert, 15.88 mm diameter 11.43 mm Depth 23.34 mm
This RS PRO M6 steel threaded insert is a type of fastener you can use to create a secure hold in soft materials such as plasterboards as well as plastic, steel and aluminium sheets. Inserts like this one allow you to create a metal thread in the soft assembly material to ensure a strong connection.
This insert is made of mild steel with zinc plating for added resistance to corrosion and rust. The product is self-adjusting, which means the insert will adapt to the thickness of the material you place it in. It's supplied with a friction wrench to help you install it using ordinary screws.
It also features standard, 6 mm M6 threads, ensuring you can use it with screws with standard threads. The insert complies with Restriction of Hazardous Substances (RoHS) standards, so you can rest assured it contains only minimal amounts of any harmful materials.
This insert is made of mild steel with zinc plating for added resistance to corrosion and rust. The product is self-adjusting, which means the insert will adapt to the thickness of the material you place it in. It's supplied with a friction wrench to help you install it using ordinary screws.
It also features standard, 6 mm M6 threads, ensuring you can use it with screws with standard threads. The insert complies with Restriction of Hazardous Substances (RoHS) standards, so you can rest assured it contains only minimal amounts of any harmful materials.
Features and Benefits
Body depth of 23.34 mm
Body outside diameter of 11.13 mm
Bright zinc-plated (BZP) finish
Fixing hole diameter of 11.43 mm
Flange diameter of 15.88 mm
Steel material
Maximum material thickness of 9.53 mm
Minimum material thickness of 4.75 mm
M6 thread size
Body outside diameter of 11.13 mm
Bright zinc-plated (BZP) finish
Fixing hole diameter of 11.43 mm
Flange diameter of 15.88 mm
Steel material
Maximum material thickness of 9.53 mm
Minimum material thickness of 4.75 mm
M6 thread size
Specification
Attribute | Value |
---|---|
Thread Size | M6 |
Flange Diameter | 15.88mm |
Fixing Hole Diameter | 11.43mm |
Body Outside Diameter | 11.13mm |
Body Depth | 23.34mm |
Material | Steel |
Stainless Steel Type | 9.53 mm |
Finish | Bright Zinc Plated |
Thickness of Material Maximum | 9.53mm |
Thickness of Material Minimum | 4.75mm |
