- RS stock no.:
- 623-5505
- Manufacturer:
- POP
On back order for despatch 2024/05/01
Not Available for premium delivery
Added
Price (Excl VAT) 1 Bag of 100
R 519,81
(exc. VAT)
R 597,78
(inc. VAT)
| Bag(s) | Per Bag | Per unit* |
| 1 - 5 | R 519,81 | R 5,198 |
| 6 - 11 | R 506,81 | R 5,068 |
| 12 + | R 491,61 | R 4,916 |
| *price indicative | ||
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS stock no.:
- 623-5505
- Manufacturer:
- POP
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

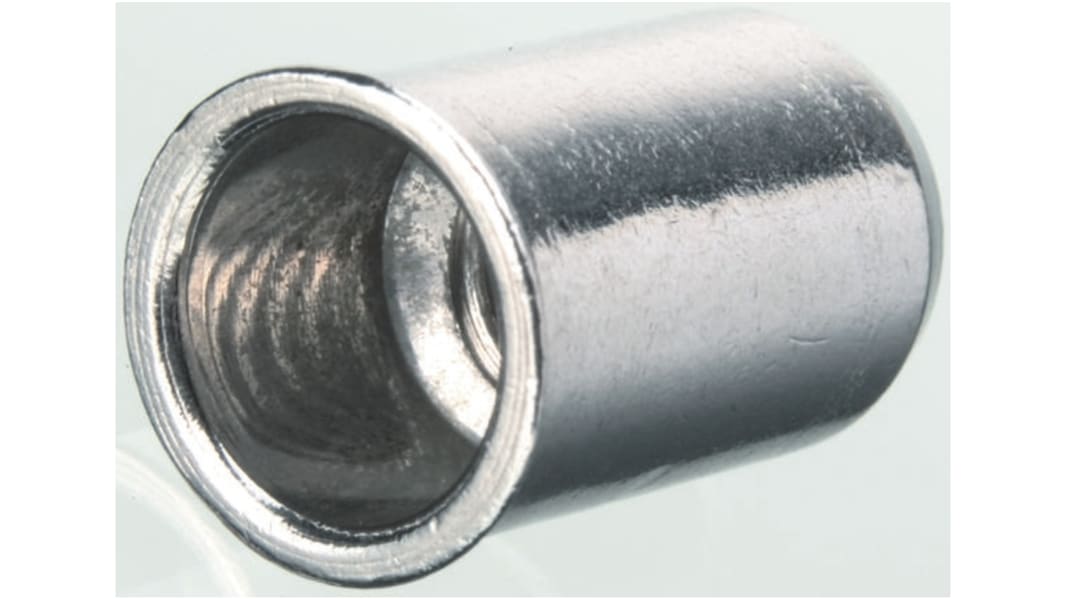

Thin Sheet Threaded Inserts
Reduced head, open end threaded insert available in zinc plated & clear passivated steel and stainless steel
Provide a simple and effective way to join materials with the benefit of an internal thread
Ideal for providing high quality, load bearing threads in various materials where alternative methods cannot maintain torque and pull out loads
Ideally suited to applications where access is only available from one side of the workpiece
A4 Grade Stainless Steel products
Provide a simple and effective way to join materials with the benefit of an internal thread
Ideal for providing high quality, load bearing threads in various materials where alternative methods cannot maintain torque and pull out loads
Ideally suited to applications where access is only available from one side of the workpiece
A4 Grade Stainless Steel products
Clinchnuts & Thread Inserts
Specification
Attribute | Value |
|---|---|
| Thread Size | M4 |
| Flange Diameter | 7mm |
| Fixing Hole Diameter | 6.4mm |
| Body Outside Diameter | 6.3mm |
| Body Depth | 10.4mm |
| Material | Steel |
| Finish | Galvanised |
| Thickness of Material Maximum | 1.5mm |
| Thickness of Material Minimum | 0.5mm |
