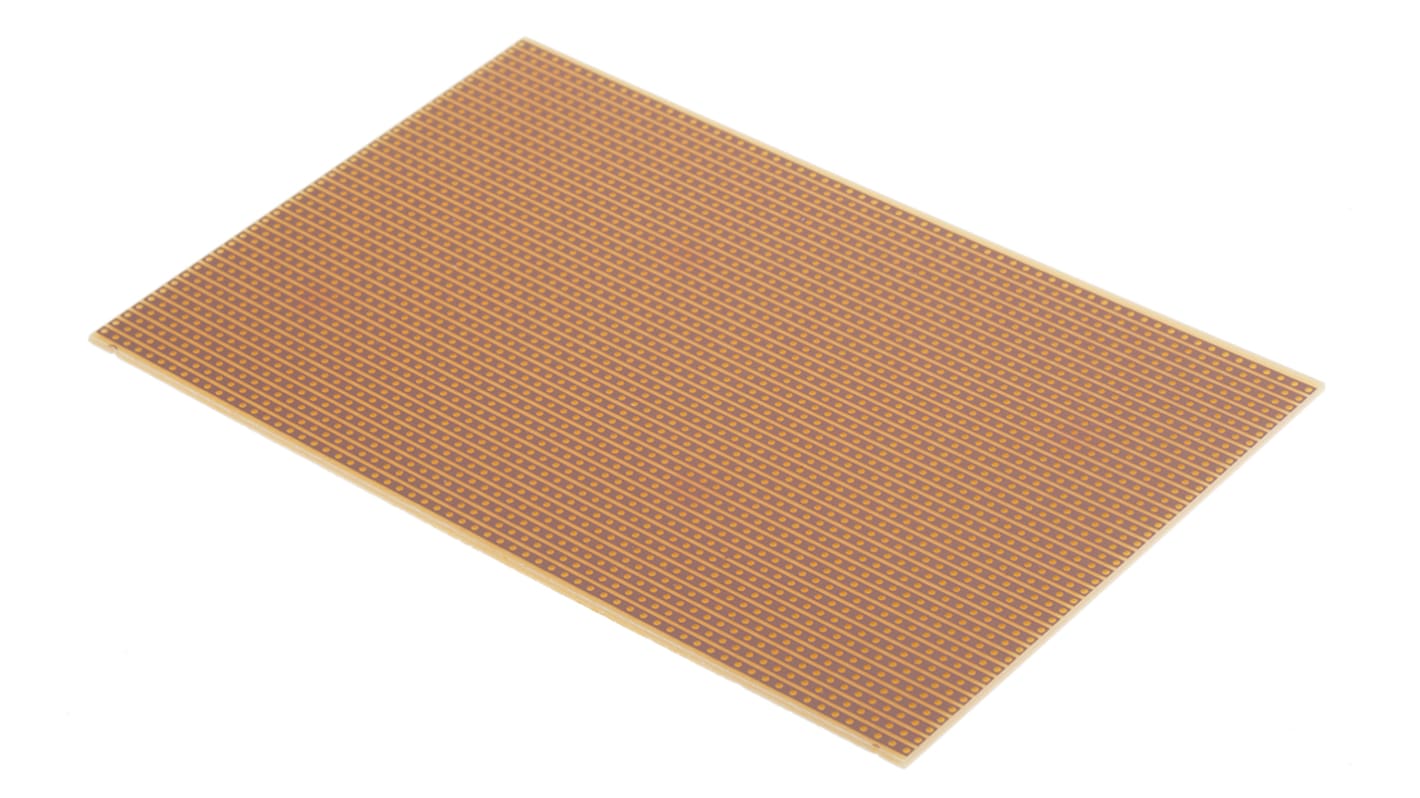

09-1034, Single-Sided Stripboard FR-2 160 x 100 x 1.6mm FR1
- RS stock no.:
- 100-4328
- Mfr. Part No.:
- 09-1034
- Manufacturer:
- Vero Technologies
On back order for despatch 2024/05/24
Added
Price (Excl VAT) Each
R 153,33
(exc. VAT)
R 176,33
(inc. VAT)
| Units | Per unit |
| 1 - 14 | R 153,33 |
| 15 - 49 | R 150,26 |
| 50 - 99 | R 145,75 |
| 100 - 249 | R 139,92 |
| 250 + | R 134,32 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS stock no.:
- 100-4328
- Mfr. Part No.:
- 09-1034
- Manufacturer:
- Vero Technologies
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Vero’s Copper Stripboard
Vero’s brilliant copper stripboard will suit your purpose for doing simple prototyping work or for development circuitry. It is manufactured from a copper clad laminate board. It features pierced copper tracks and a base material of SRBP. Stripboards also give you brilliant access to solder your components with relative ease.
Features and benefits:
• Create a simple printed circuit with the copper strips forming the interconnections
• This stripboard can be cut into a smaller board
• Single sided copper
• Tracks are bonded to SRBP board and pierced to accept terminal pins.
• Board Size: 160x100x1.02mm
• Fibreglass material
• This stripboard can be cut into a smaller board
• Single sided copper
• Tracks are bonded to SRBP board and pierced to accept terminal pins.
• Board Size: 160x100x1.02mm
• Fibreglass material
Why a stripboard and not a breadboard?
Stripboards and breadboards are slightly different. A breadboard is for early stage prototyping where soldering is not required where as a stripboard can be used for soldering. Breadboards make great use for testing components and basic circuitry. With stripboards you can solder components and make it more of a permanent circuit over a breadboard.
Stripboards and breadboards are slightly different. A breadboard is for early stage prototyping where soldering is not required where as a stripboard can be used for soldering. Breadboards make great use for testing components and basic circuitry. With stripboards you can solder components and make it more of a permanent circuit over a breadboard.
Stripboard cutter: 543-535
DIN Type Matrixboard
Matrix boards with 1mm holes on a 2.50mm pitch.
Specification
Attribute | Value |
|---|---|
| Base Material | Synthetic Resin Bonded Paper |
| Number of Sides | 1 |
| Dimensions | 160 x 100 x 1.6mm |
| Copper Thickness | 35µm |
| Hole Diameter | 1.02mm |
| Hole Layout | 39 x 64 |
| Hole Pitch | 2.5 x 2.5mm |
| FR Material Grade | FR1 |
| Length | 160mm |
| Thickness | 1.6mm |
| Width | 100mm |
