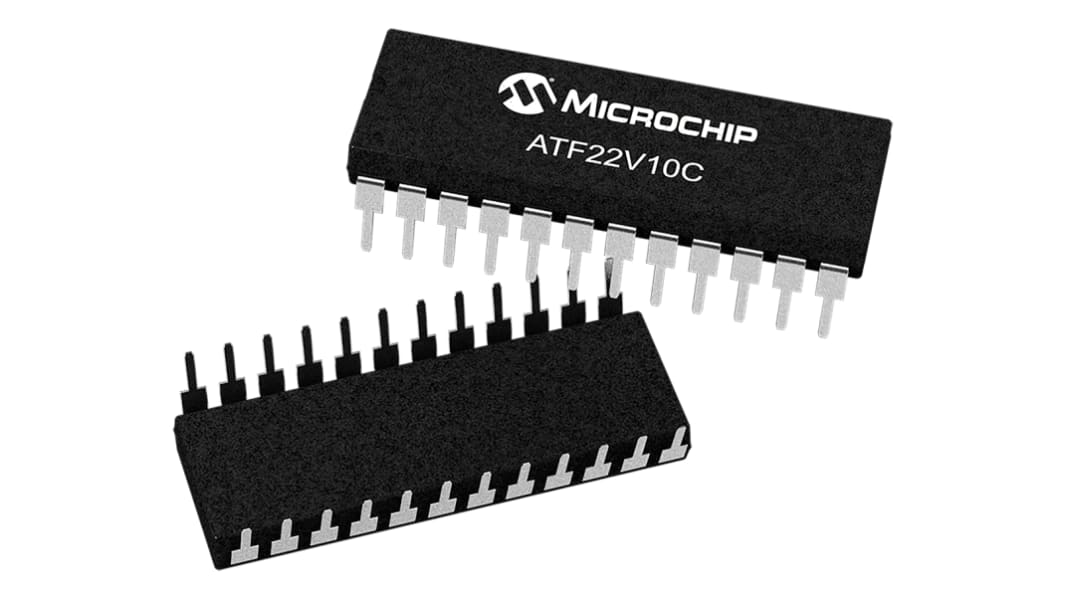

Microchip ATF22V10C-7PX, SPLD Simple Programmable Logic Device ATF22V10C 350 Gates, 10 Macro Cells, 10 I/O, 最低166MHz
- RS stock no.:
- 127-8215
- Mfr. Part No.:
- ATF22V10C-7PX
- Manufacturer:
- Microchip
8 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Pack of 2)
R 53,565
(exc. VAT)
R 61,60
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | R 53,565 | R 107,13 |
| 10 - 48 | R 52,225 | R 104,45 |
| 50 - 98 | R 50,66 | R 101,32 |
| 100 - 498 | R 48,635 | R 97,27 |
| 500 + | R 46,69 | R 93,38 |
| *price indicative | ||
- RS stock no.:
- 127-8215
- Mfr. Part No.:
- ATF22V10C-7PX
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Simple Programmable Logic Device, Microchip
From Atmel, this high-performance programmable logic device boasts low power, high reliability and an industry standard architecture.
Specification
Attribute | Value |
|---|---|
| Family Name | ATF22V10C |
| Number of Gates | 350 |
| Number of Macro Cells | 10 |
| Number of User I/Os | 10 |
| Maximum Internal Frequency | 最低166MHz |
| Re-programmability Support | Yes |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 24 |
| Maximum Propagation Delay Time | 7.5ns |
| Fabrication Technology | CMOS, TTL |
| Dimensions | 32.13 x 7.11 x 4.95mm |
| Height | 4.95mm |
| Maximum Operating Supply Voltage | 5 V |
| Minimum Operating Temperature | -40 °C |
| Width | 7.11mm |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Length | 32.13mm |
