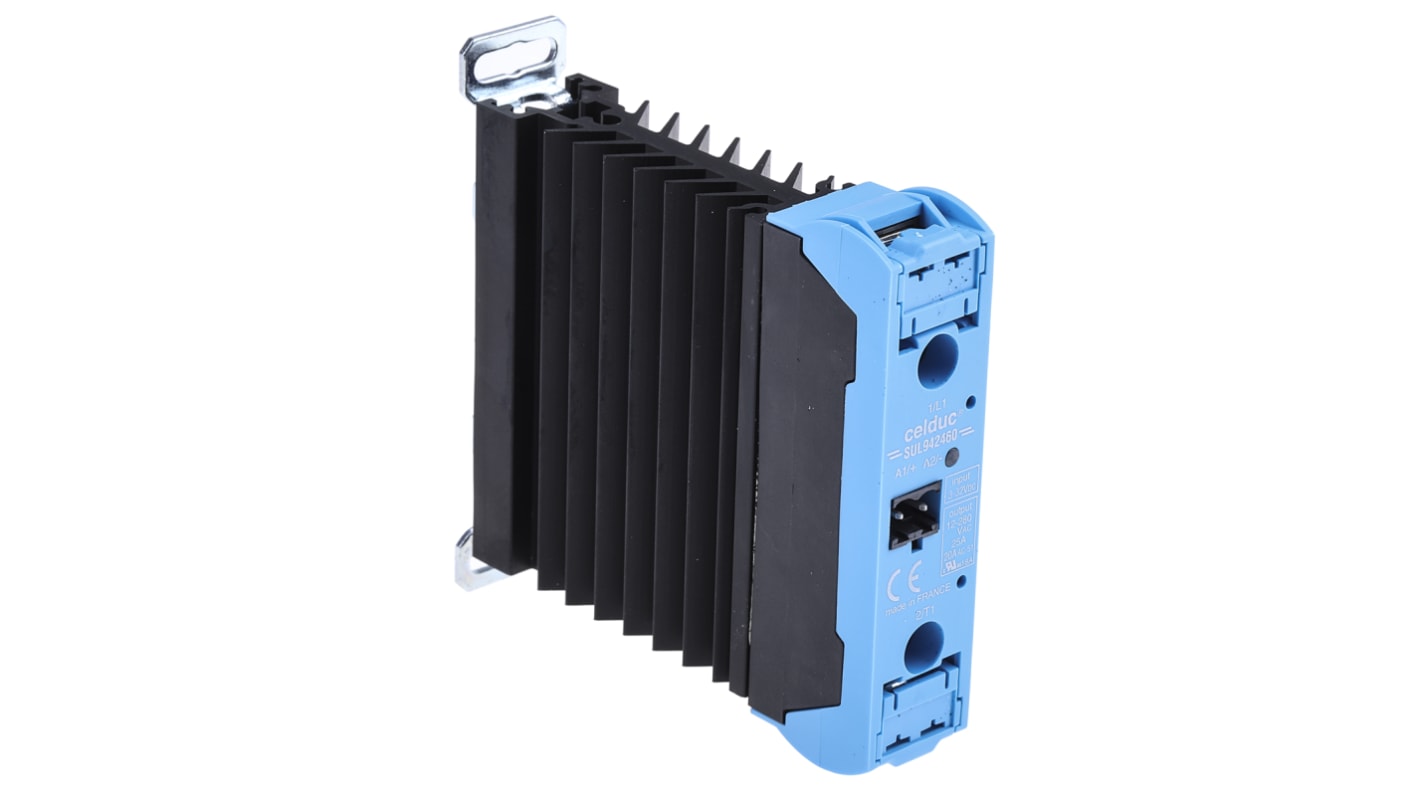

Celduc SUL9-SUM9 Series Solid State Relay, 25 A Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control
- RS stock no.:
- 917-4844
- Mfr. Part No.:
- SUL942460
- Manufacturer:
- Celduc
Subtotal (1 unit)**
R 1 234 21
(exc. VAT)
R 1 419 34
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Units | Per unit |
|---|---|
| 1 + | R 1 234,21 |
**price indicative
- RS stock no.:
- 917-4844
- Mfr. Part No.:
- SUL942460
- Manufacturer:
- Celduc
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Maximum Load Current | 25 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 280 V ac | |
| Minimum Load Voltage | 12 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 3 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 3 → 32 V dc | |
| Minimum Load Current | 5 mA | |
| Range | SUL9 | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Output Device | Triac | |
| Relay Type | AC | |
| Maximum Turn On Time | 10ms | |
| Series | SUL9-SUM9 | |
| Load Voltage Range | 12 → 280V ac | |
| Dimensions | 22.5 x 119.1 x 80mm | |
| Off State Leakage Current | 1 mA | |
| Height | 80mm | |
| Standards Met | CE, VDE, EAC | |
| Special Features | Zero Cross Solid State Relay Especially Designed for Resistive Loads, Yellow LED Visualization on The Input, IP20 Protection By Removable Flaps on Terminals with Optional Labels | |
| Operating Temperature Range | -55 → +100°C | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -55°C | |
| Length | 22.5mm | |
| Depth | 119.1mm | |
Select all | ||
|---|---|---|
Brand Celduc | ||
Maximum Load Current 25 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 280 V ac | ||
Minimum Load Voltage 12 V ac | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 3 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 3 → 32 V dc | ||
Minimum Load Current 5 mA | ||
Range SUL9 | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Output Device Triac | ||
Relay Type AC | ||
Maximum Turn On Time 10ms | ||
Series SUL9-SUM9 | ||
Load Voltage Range 12 → 280V ac | ||
Dimensions 22.5 x 119.1 x 80mm | ||
Off State Leakage Current 1 mA | ||
Height 80mm | ||
Standards Met CE, VDE, EAC | ||
Special Features Zero Cross Solid State Relay Especially Designed for Resistive Loads, Yellow LED Visualization on The Input, IP20 Protection By Removable Flaps on Terminals with Optional Labels | ||
Operating Temperature Range -55 → +100°C | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -55°C | ||
Length 22.5mm | ||
Depth 119.1mm | ||
