- RS stock no.:
- 467-4778
- Mfr. Part No.:
- 3RF2330-1AA02
- Manufacturer:
- Siemens
13 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 1 707,60
(exc. VAT)
R 1 963,74
(inc. VAT)
Units | Per unit |
1 + | R 1 707,60 |
- RS stock no.:
- 467-4778
- Mfr. Part No.:
- 3RF2330-1AA02
- Manufacturer:
- Siemens
Legislation and Compliance
Not Applicable
- COO (Country of Origin):
- DE
Product Details

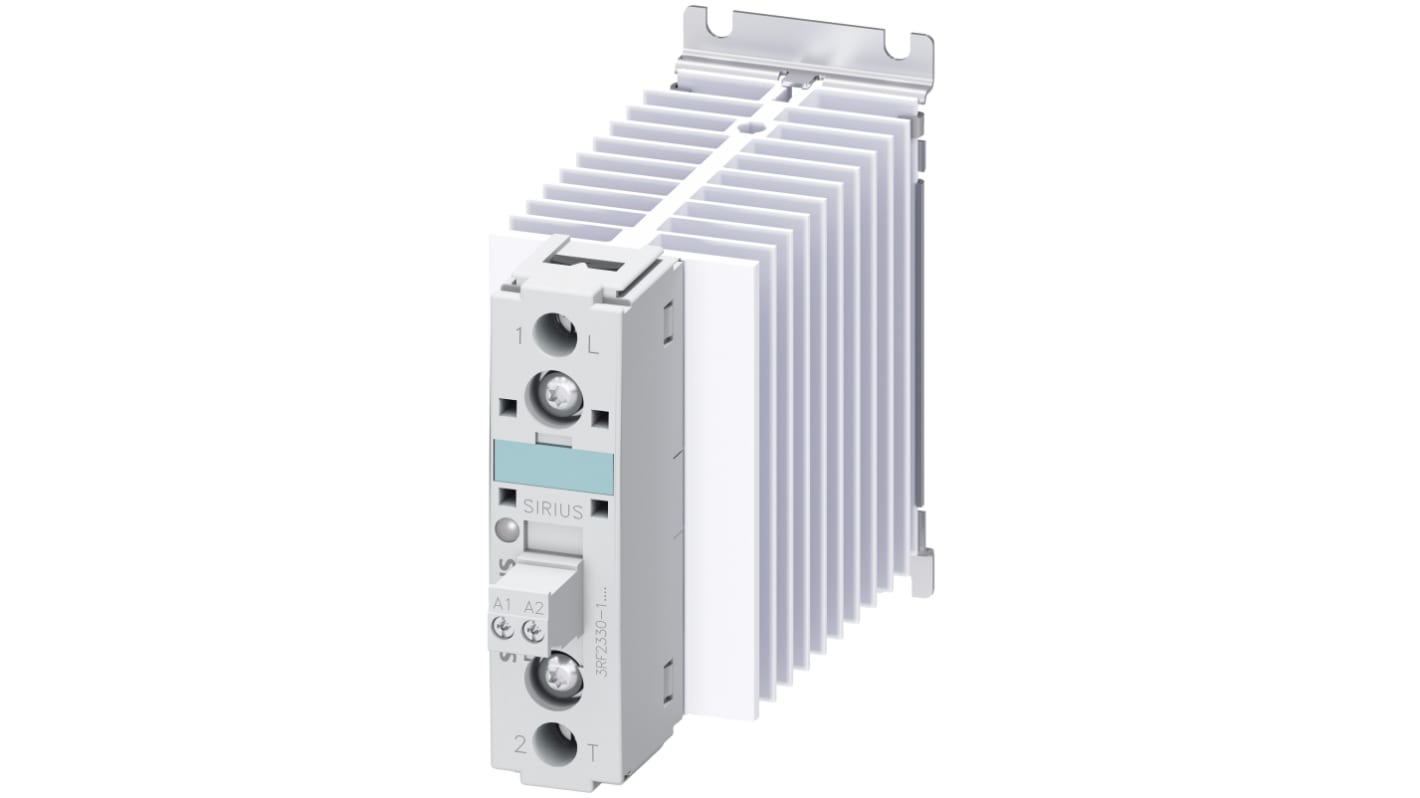

Contactor - 3RF23 Range
Single phase currents up to 50A AC can be switched
2 voltage ranges available both with 24Vdc control voltage
Isolation voltage; 600Vac
Blocking voltage 800Vac (24-230Vac version), 1200Vac (48-460Vac version)
LED status indicator
Zero point switching for resistive loads
Switching currents rated at 40°C
IP20 rating
Screw terminals
2 voltage ranges available both with 24Vdc control voltage
Isolation voltage; 600Vac
Blocking voltage 800Vac (24-230Vac version), 1200Vac (48-460Vac version)
LED status indicator
Zero point switching for resistive loads
Switching currents rated at 40°C
IP20 rating
Screw terminals
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specification
Attribute | Value |
---|---|
Maximum Load Current | 30 A |
Mounting Type | DIN Rail |
Maximum Load Voltage | 230 V |
Minimum Load Voltage | 24 V |
Maximum Control Voltage | 24 V dc |
Minimum Control Voltage | 15 V dc |
Switching Type | Zero Cross |
Control Voltage Range | 15 → 24 V dc |
Range | Sirius Classic |
Minimum Load Current | 0.5 A |
Terminal Type | Screw |
Contact Configuration | SPST |
Output Device | Thyristor |
Maximum Turn On Time | 1/2 cycle |
Load Voltage Range | 24 → 230V |
Dimensions | 45 x 140.5 x 100mm |
Depth | 140.5mm |
Maximum Operating Temperature | +60°C |
Operating Temperature Range | -25 → +60°C |
Off State Leakage Current | 10 mA |
Height | 100mm |
Minimum Operating Temperature | -25°C |
Length | 45mm |
