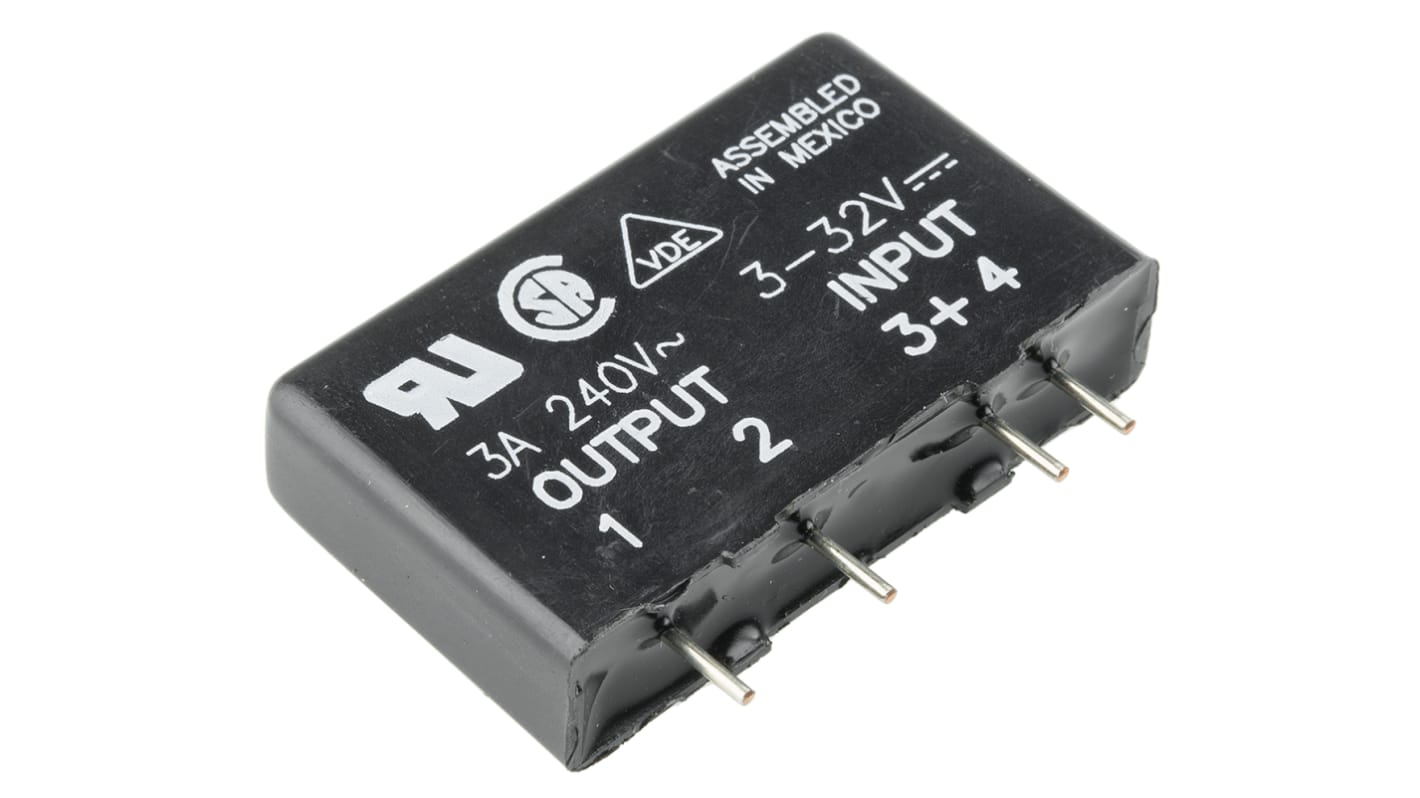

Sensata / Crydom DRA1 Series Solid State Relay, 3 A Load, PCB Mount, 280 V rms Load, 32 V dc Control
- RS stock no.:
- 348-431
- Mfr. Part No.:
- MP240D3
- Manufacturer:
- Sensata / Crydom
On back order for despatch 2024/04/23
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 681,16
(exc. VAT)
R 783,33
(inc. VAT)
| Units | Per unit |
| 1 - 19 | R 681,16 |
| 20 - 24 | R 664,13 |
| 25 - 49 | R 644,21 |
| 50 - 249 | R 618,44 |
| 250 + | R 593,70 |
- RS stock no.:
- 348-431
- Mfr. Part No.:
- MP240D3
- Manufacturer:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Series MP 3 - 4A, 240Vac, ac Output SIL
High package density
Compatible with 5, 12 & 24V logic systems
Isolation voltage 4000Vrms
Dimensions: H31.75mm x W10.2mm x D43.1mm
Operating temperature range: -40 to +80°C
Compatible with 5, 12 & 24V logic systems
Isolation voltage 4000Vrms
Dimensions: H31.75mm x W10.2mm x D43.1mm
Operating temperature range: -40 to +80°C
Approvals
UL recognised component for Canada and US, VDE
Sensata | Crydom Solid-State Relay, DIN Rail Mounting, Zero-Crossing Switch Type - DRA1 Series - MP240D3
Need a reliable switching device for your industrial control equipment? Use this solid-state relay from Sensata | Crydom. As there are no moving parts, there's minimal risk of mechanical wear, helping to ensure a long service life. The relay is designed to fit on a standard 35mm DIN rail, so it's simple to install without the need for specialised tools. It has a zero-crossing switch type to safely handle resistive loads with minimal noise. This SSR is suitable for use in lighting and HVAC applications.
• Cage screw terminals for a simple and secure wire connection
• MOSFET output device to ensure a long and reliable service life
• Encapsulated in thermally conductive epoxy to minimise damage from impact and heat
• Wide operating temperature range between -40°C and +80°C for use in demanding environments
• Labelled input and output pins to reduce the risk of connectivity errors
• MOSFET output device to ensure a long and reliable service life
• Encapsulated in thermally conductive epoxy to minimise damage from impact and heat
• Wide operating temperature range between -40°C and +80°C for use in demanding environments
• Labelled input and output pins to reduce the risk of connectivity errors
What's the operating voltage of this SSR?
This SSR has an operating voltage range between 24 and 280V AC for compatibility with common control applications.
Approvals
UL / C-UL recognised; VDE
Caution
Derating will limit the maximum load current at temperatures above 25°C
Specification
Attribute | Value |
|---|---|
| Maximum Load Current | 3 A |
| Mounting Type | PCB Mount |
| Maximum Load Voltage | 280 V rms |
| Minimum Load Voltage | 24 V |
| Maximum Control Voltage | 32 V dc |
| Minimum Control Voltage | 3 V, 32 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 0.02 A |
| Terminal Type | PCB Pin |
| Output Device | MOSFET |
| Load Voltage Range | 24 → 280V ac |
| Series | DRA1 |
| Maximum Turn On Time | 1/2 cycle |
| Dimensions | 43.1 x 10.2 x 25.4mm |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +80°C |
| Length | 43.1mm |
| Off State Leakage Current | 5 mA |
| Height | 25.4mm |
| Depth | 10.2mm |
| Capacitance | 8pF |
| Standards Met | CE, CSA, RoHS Compliant |
| Maximum Operating Temperature | +80°C |
