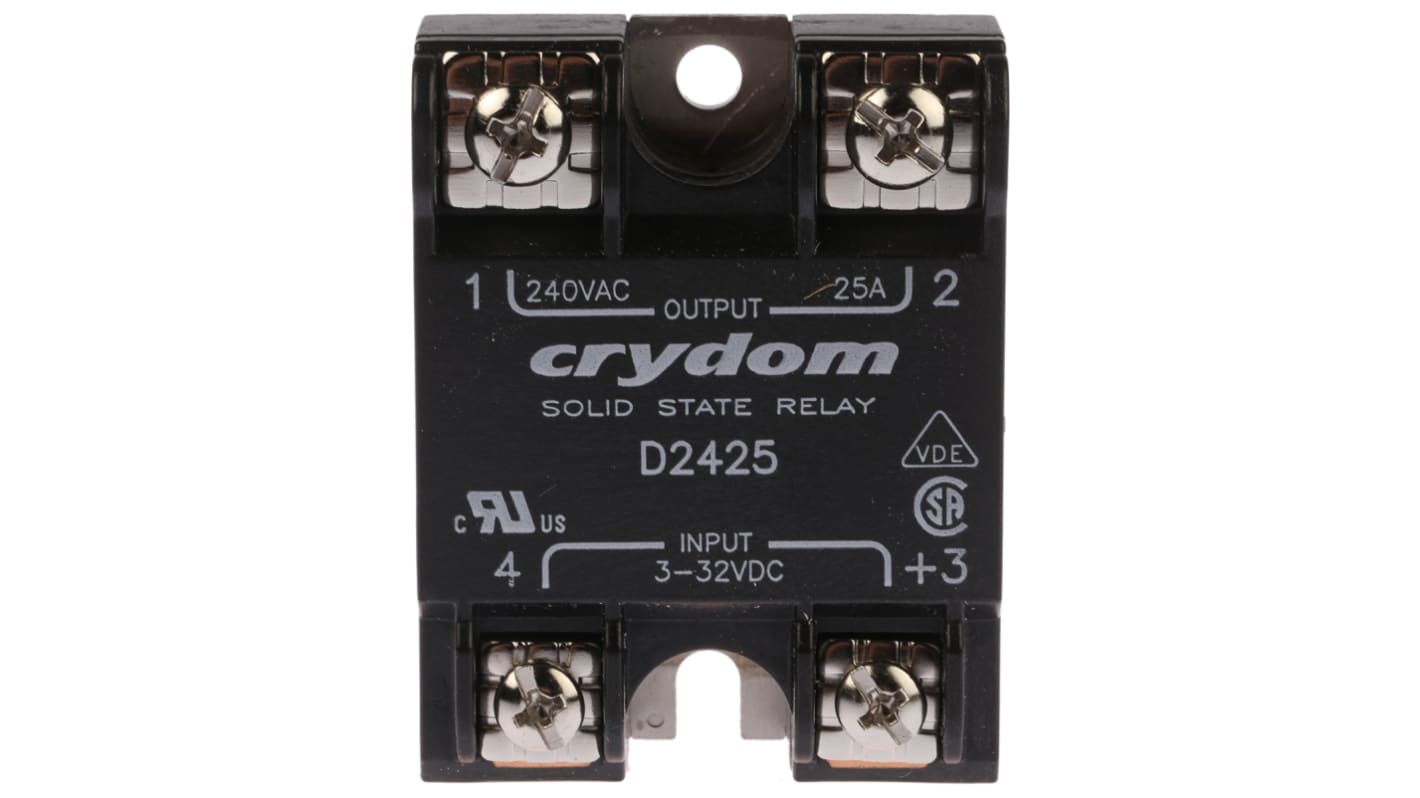

Sensata / Crydom Solid State Relay, 25 A rms Load, Surface Mount, 280 V rms Load, 32 V Control
- RS stock no.:
- 346-918
- Mfr. Part No.:
- D2425
- Manufacturer:
- Sensata / Crydom
4 Available in South Africa for same day despatch or collection. Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
213 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Added
Price (Excl VAT) Each
R 1 165,49
(exc. VAT)
R 1 340,31
(inc. VAT)
| Units | Per unit |
| 1 - 4 | R 1 165,49 |
| 5 - 9 | R 1 136,35 |
| 10 + | R 1 102,26 |
- RS stock no.:
- 346-918
- Mfr. Part No.:
- D2425
- Manufacturer:
- Sensata / Crydom
Legislation and Compliance
Not Applicable
- COO (Country of Origin):
- MX
Product Details
Crydom Series 1 Solid State Relays
Crydom Series 1 range of solid state relays offer a wide range of ratings from 10 A to 125 A at 24 V ac to 280 V ac. Crydom has incorporated many features within this particular range of panel mount solid state relays including AC or DC control and SCR output for heavy industrial loads. Both zero-crossing (resistive loads) and random-fire (inductive loads) output versions are available.
Features and Benefits
600 V blocking capacity
SCR Output for heavy industrial loads
Internal snubber circuitry
Filter, cover and thermal pads available
Terminal Type Screw; Saddle Clamp
Input-output Capacitance: 8 pF
Isolation Voltage 4 kVrms
Dimensions: H22.9 x D58.4 x W45.7mm
Note
Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet
Caution
Derating will limit the maximum load current at temperatures above 25 °C
Approvals
UL recognised component for Canada and US, VDE
Sensata | Crydom Solid-State Relay, 25A Rated Load Current, 24 to 280V AC Operating Voltage - D2425
Use this solid-state relay from Sensata | Crydom to control the power supply to your industrial equipment. It's electromagnetically compatible with other electronic devices to reduce the chance of crosstalk and interference. As the unit has no moving parts, there's minimal risk of wear to ensure long-lasting performance. A component like this one is suitable for switching power to industrial robotics setups, gas meters and IC equipment.
Features & Benefits
• Flame-retardant housing for safety in the event of a fire
• Aluminium baseplate for resistance to corrosion and impact
• Wide operating temperature range of -40°C to +80°C for use in demanding environments
• MTBF of over 11 million hours for long-lasting performance
• Aluminium baseplate for resistance to corrosion and impact
• Wide operating temperature range of -40°C to +80°C for use in demanding environments
• MTBF of over 11 million hours for long-lasting performance
What's the operating voltage of this relay?
This relay has a wide operating voltage range of 24 to 280V AC, making it a good choice for use in low-power systems.
Does this relay have contacts?
As this is a solid-state relay, it has no contacts. This reduces cleaning needs and eliminates the chance of electrical arcs causing damage to your equipment.
Approvals
UL; CSA; VDE
Crydom Solid State Relay and Accessories
Specification
Attribute | Value |
|---|---|
| Maximum Load Current | 25 A rms |
| Mounting Type | Surface Mount |
| Maximum Load Voltage | 280 V rms |
| Maximum Control Voltage | 32 V |
| Switching Type | Zero Cross |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 40 mA |
| Output Device | SCR |
| Load Voltage Range | 24 → 280V ac |
| Dimensions | 58.4 x 45.7 x 23mm |
| Length | 58.4mm |
| Maximum Operating Temperature | +80°C |
| Height | 23mm |
| Minimum Operating Temperature | -40°C |
| Depth | 45.7mm |
| Operating Temperature Range | -40 → +80°C |
