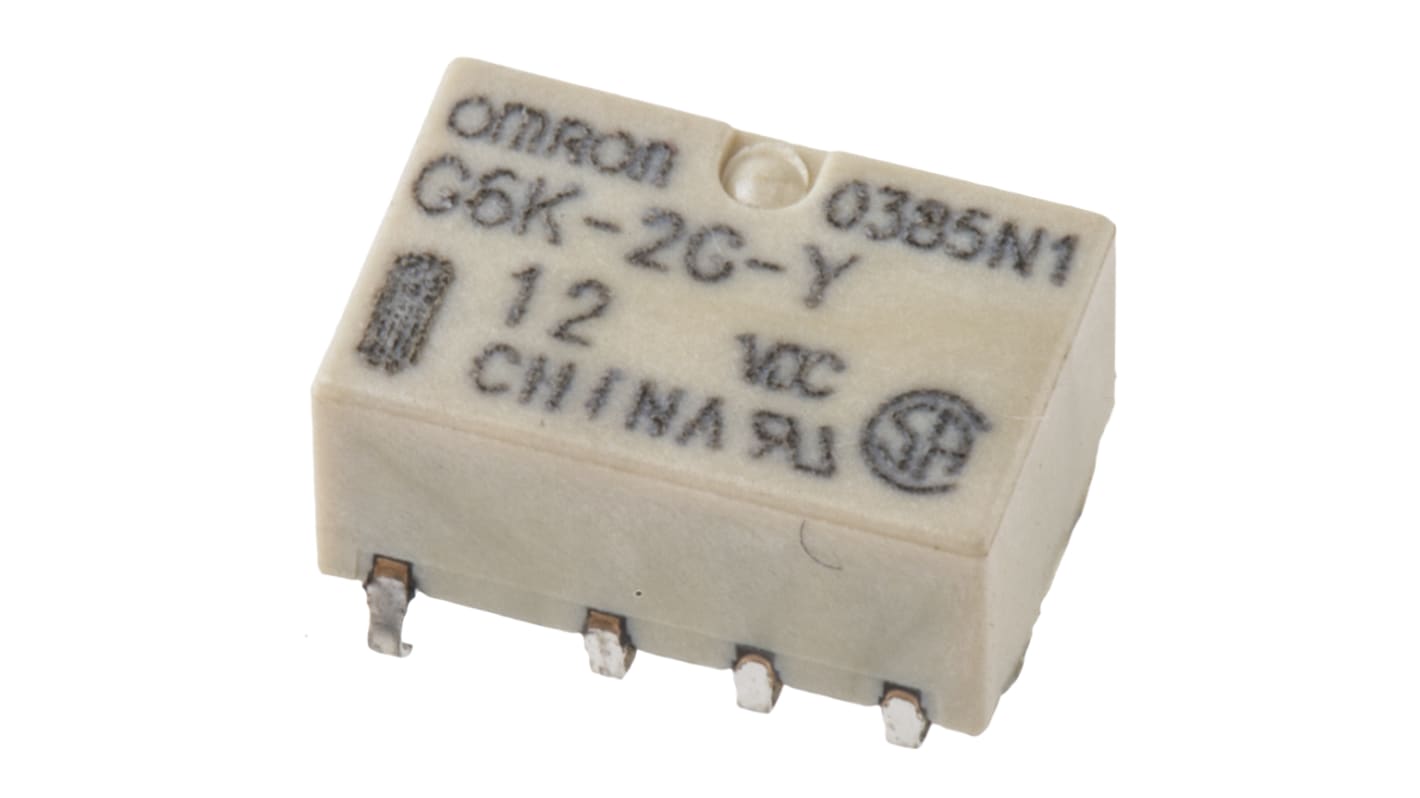

Omron PCB Signal Relay, 12 V dc Coil, 1 A, DPDT
- RS stock no.:
- 365-0412
- Mfr. Part No.:
- G6K-2G-Y DC12
- Manufacturer:
- Omron
Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 81,63
(exc. VAT)
R 93,87
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 65 unit(s) shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | R 81.63 |
| 15 - 49 | R 79.59 |
| 50 - 99 | R 77.20 |
| 100 - 249 | R 74.11 |
| 250 + | R 71.15 |
*price indicative
- RS stock no.:
- 365-0412
- Mfr. Part No.:
- G6K-2G-Y DC12
- Manufacturer:
- Omron
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Signal Relay | |
| Coil Voltage | 12 V dc | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Switching Current | 1 A | |
| Switching AC Voltage | 400 V ac | |
| Series | G6K | |
| Switching Power | 37.5VA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN, UL, RoHS, IEC, CE | |
| Width | 6.5 mm | |
| Length | 10mm | |
| Height | 5.2mm | |
| Terminal Type | Surface Mount | |
| Coil Power | 100mW | |
| Coil Resistance | 1.315kΩ | |
| Contact Material | Gold Plated | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Signal Relay | ||
Coil Voltage 12 V dc | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Switching Current 1 A | ||
Switching AC Voltage 400 V ac | ||
Series G6K | ||
Switching Power 37.5VA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN, UL, RoHS, IEC, CE | ||
Width 6.5 mm | ||
Length 10mm | ||
Height 5.2mm | ||
Terminal Type Surface Mount | ||
Coil Power 100mW | ||
Coil Resistance 1.315kΩ | ||
Contact Material Gold Plated | ||
Omron G6K Series
Low profile subminiature SMT relay - 5.2x6.5x10 mm
Fully sealed construction
Low power consumption of approximately 100mW
Incorporates a unique Terminal structure with high infra-red irradiation efficiency, ensuring excellent soldering characteristics
G6K-2F types conform to FCC Part 68 (1500V for 10x160μs)
G6K-2G-Y, G6K-2F-Y & G6KU-2F-Y types conform to Bellcore specifications (2500V for 2x10μs)
Approvals
UL, CSA
