Phoenix Contact 4116 Series Galvanic Isolator, Voltage Input

RS stock no.:: 204-5099
Mfr. Part No.:: 2810939
Manufacturer:: Phoenix Contact

Phoenix Contact 4116 Series Galvanic Isolator, Voltage Input

1 In stock in South Africa for delivery next working day in national main centres. (Delivery T&C's apply)

Added

Price (Excl VAT) Each

R 10 287,31

(exc. VAT)

R 11 830,41

(inc. VAT)

Units	Per unit
1 +	R 10 287,31

RS stock no.:: 204-5099
Mfr. Part No.:: 2810939
Manufacturer:: Phoenix Contact

Technical data sheets

Legislation and Compliance

Non Compliant

COO (Country of Origin):: DE

Product Details

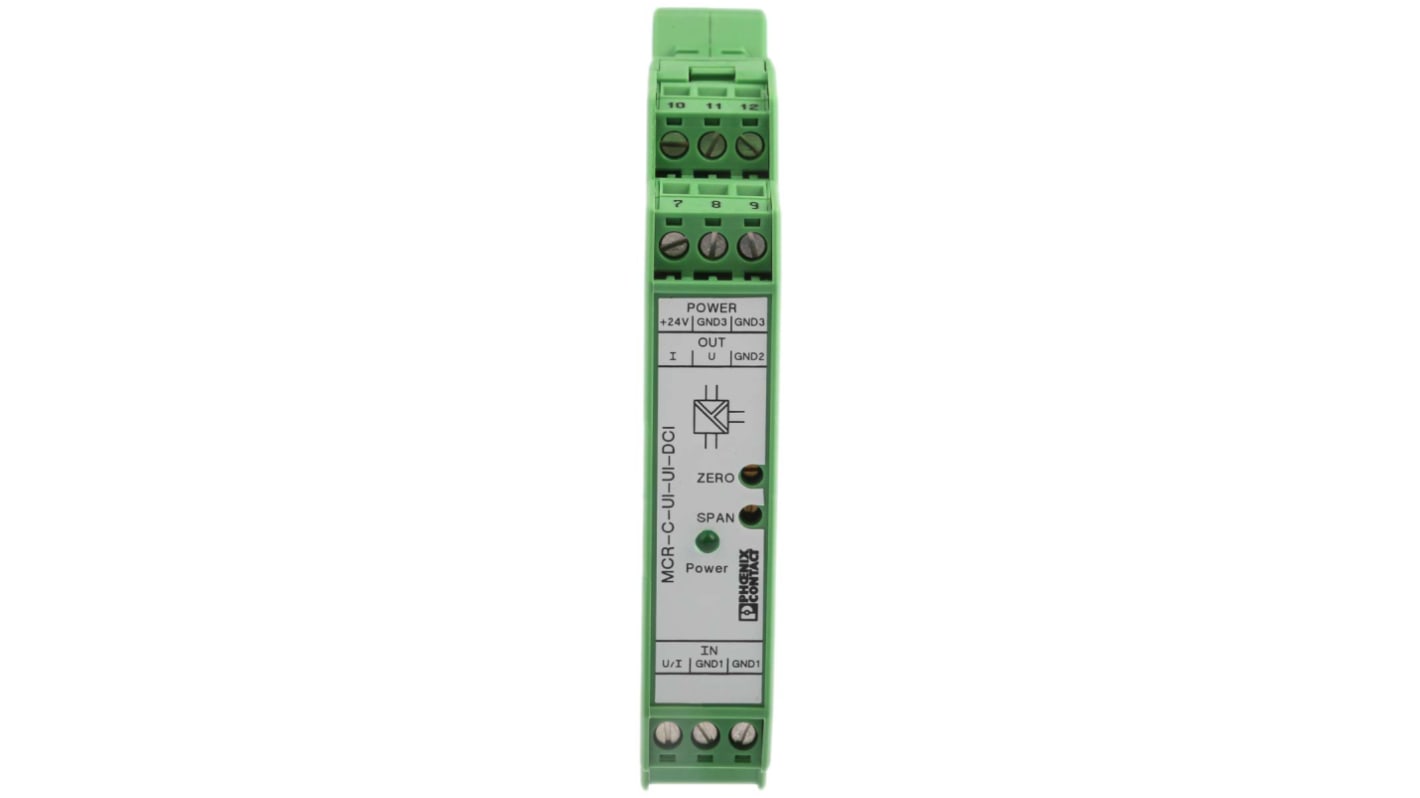

Configurable 3-way Isolation Amplifier

From Phoneix Contacts, the DIN-Rail mounted MCR-C-UI-UI-DCI 3-Way isolation amplifier is for universal use as the input and output signal ranges can be individually configured. The conversion and electrical isolation of the analogue signals are effected by an inductive transmission procedure. A filter that is connected in series downstream of the transformer reduces interference.

Programming

The MCR-C-UI-UI-DCI signal conditioners are configurable via DIP switches accessed via opening the housing and sliding out the PCB. The setting of the required input range and output range is configured by separate DIP switches, with adjustments made via ZERO and SPAN potentiometers of the housing front panel.

Features and Benefits

• DIN Rail Mounting
• Over 160 amplification settings, set via input and output DIP switches
• Integrated surge protection with transient discharge to the DIN rail
• Transient protection

Specification

Attribute	Value
Input Signal Type	Voltage
Input Range	0 → 10V
Mounting Type	DIN Rail
Operating Temperature Range	-20 → +65°C
Series	4116
Maximum Operating Temperature	+65°C
Minimum Operating Temperature	-20°C
