C & K SPST, On-None-Off Rocker Switch
- RS stock no.:
- 155-8919
- Mfr. Part No.:
- D502J12S2AHQA
- Manufacturer:
- C & K
35 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 113,79
(exc. VAT)
R 130,86
(inc. VAT)
| Units | Per unit |
| 1 - 4 | R 113,79 |
| 5 - 9 | R 110,95 |
| 10 - 24 | R 107,62 |
| 25 - 49 | R 103,32 |
| 50 + | R 99,19 |
- RS stock no.:
- 155-8919
- Mfr. Part No.:
- D502J12S2AHQA
- Manufacturer:
- C & K
Technical data sheets
Legislation and Compliance
Product Details

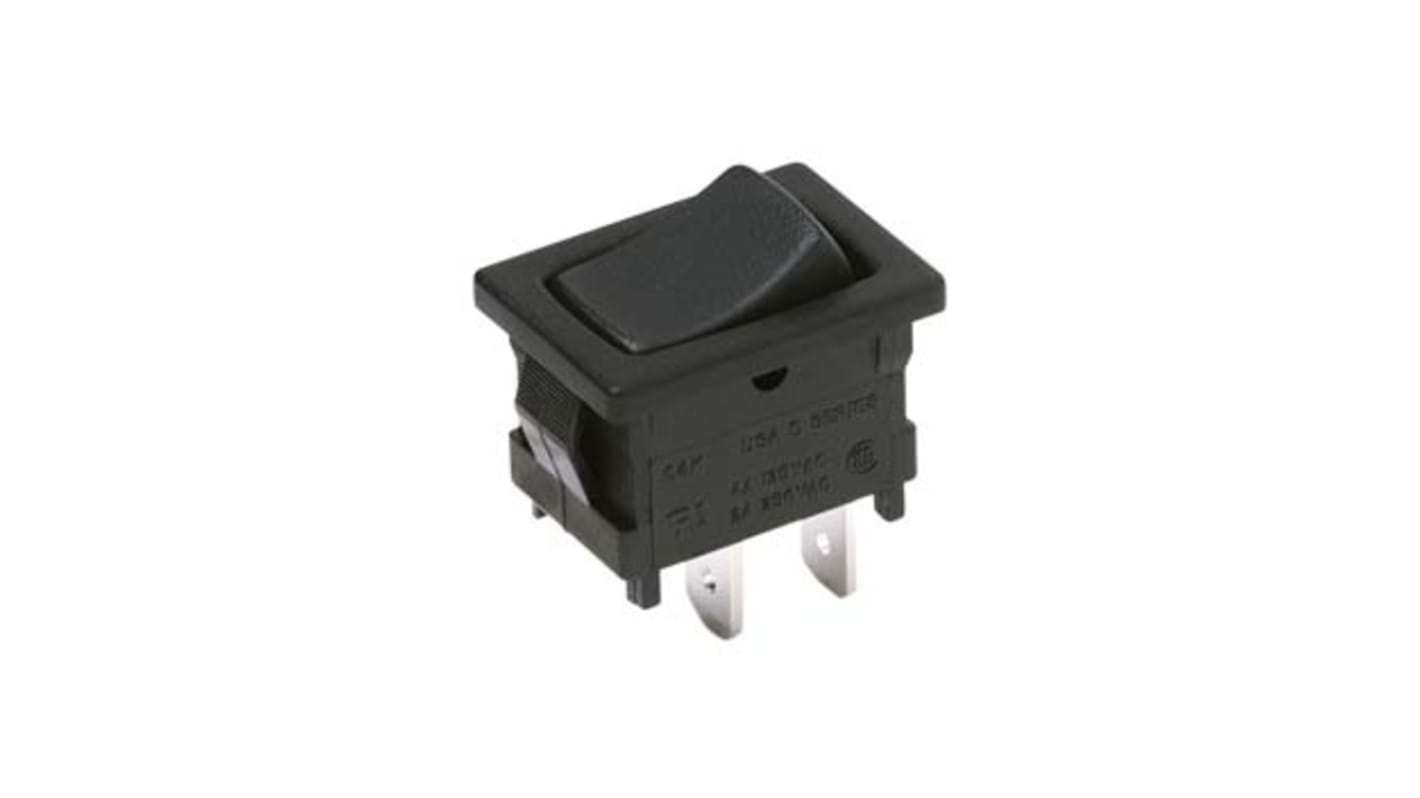

C & K SPST On-None-Off Rocker Switch
The C&K single pole single throw (SPST) rocker switch has On-None-Off switch operation. This switch belongs to D series miniature snap-in power rocker switches. It has a contact terminal rating of 5A at 250VAC. This switch has a black matte finish. It is perfectly suitable for any atmospheric condition. It is a right angle PC pin contact terminal type switch.
Features and Benefits
• Insulation resistance is 10^9ohm min
• Momentary and maintained models
• PC and quick connect terminals
• Recessed bracket available, prevents accidental actuation
• Gold plated options available
• Sub-miniature size switch for a space-saving small footprint
• Splash-proof rubber boots
• Easy to install
• Housing is made from nylon grade material
• Momentary and maintained models
• PC and quick connect terminals
• Recessed bracket available, prevents accidental actuation
• Gold plated options available
• Sub-miniature size switch for a space-saving small footprint
• Splash-proof rubber boots
• Easy to install
• Housing is made from nylon grade material
Applications
• Small appliances
• Computers and peripherals
• Medical instrumentation
• Computers and peripherals
• Medical instrumentation
Certifications
• UL 61058-1 approved
• UL 94V-2 approved
• UL 94V-2 approved
Specification
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 12.9mm |
| Panel Cut Out Height | 19.2mm |
| Contact Current Rating | 10 A |
| Illuminated | No |
| Actuator Colour | Black |
| IP Rating | IP65 |
| Terminal Type | Right Angle PC Pin |
| Legend Text | 0, 1 |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 12.9 x 19.2mm |
| AC Voltage Rating | 250V |
| Operating Temperature Range | -30 → +65°C |
| Case Material | Nylon 66 |
| Legend Text Colour | White |
| Maximum Operating Temperature | +65°C |
| Minimum Operating Temperature | -30°C |
| Contact Material | Brass, Copper |
