QSD124 onsemi, ±12 ° IR Phototransistor, Through Hole 2-Pin T-1 3/4 package
- RS stock no.:
- 184-1441
- Mfr. Part No.:
- QSD124
- Manufacturer:
- onsemi
125 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Pack of 25)
R 11,055
(exc. VAT)
R 12,713
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 75 | R 11,055 | R 276,375 |
| 100 - 125 | R 10,778 | R 269,45 |
| 150 - 175 | R 10,455 | R 261,375 |
| 200 + | R 10,037 | R 250,925 |
| *price indicative | ||
- RS stock no.:
- 184-1441
- Mfr. Part No.:
- QSD124
- Manufacturer:
- onsemi
Technical data sheets
Legislation and Compliance
Product Details

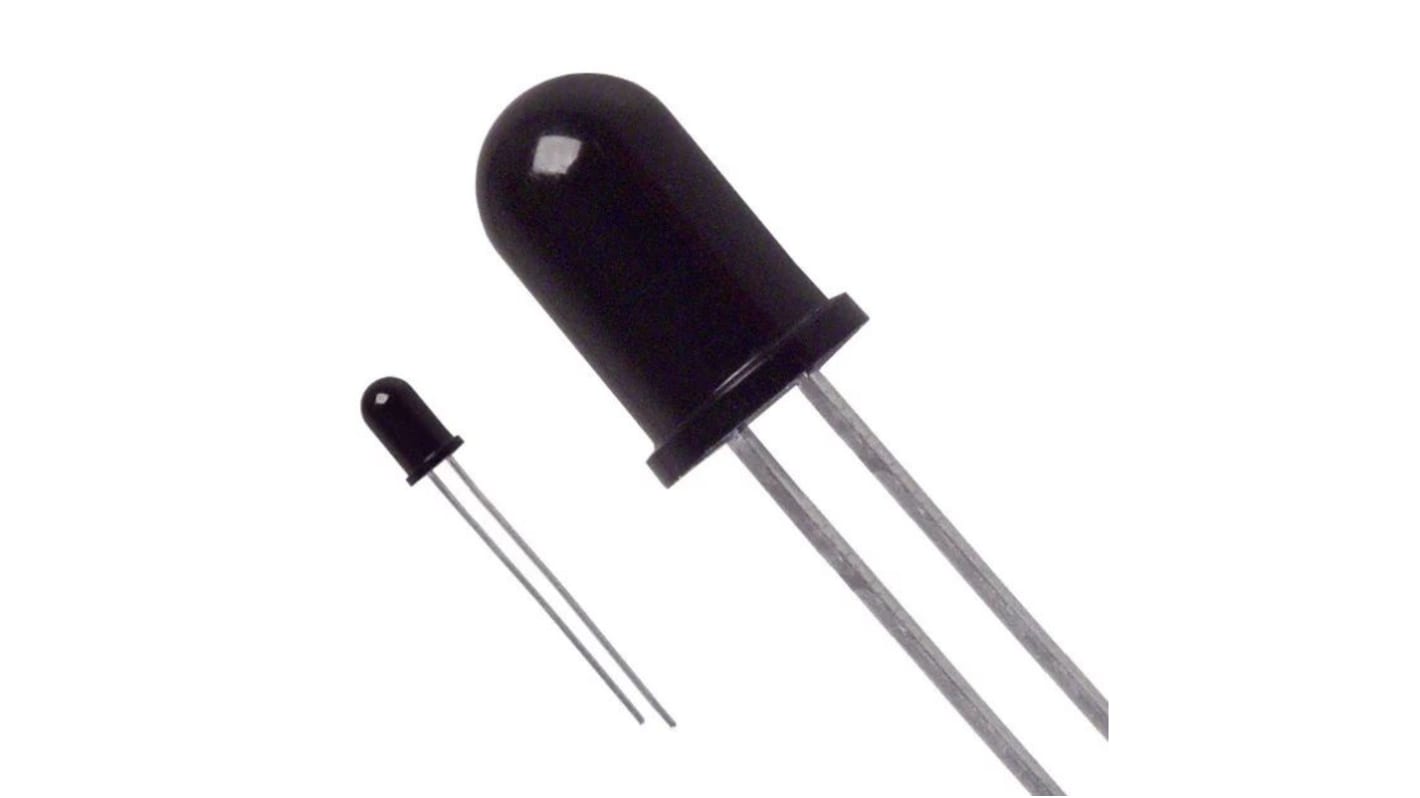

The QSD122, QSD123, QSD124 is a silicon phototransistor encapsulated in an infrared transparent, black T-1 3/4 package.
NPN silicon phototransistor
Package type: T-1 3/4
Notched emitter: QED12X/QED22X/QED23X
Narrow reception angle: 24°C
Daylight filter
Package material and colour: black epoxy
High sensitivity
Applications:
This product is general usage and suitable for many different applications.
Package type: T-1 3/4
Notched emitter: QED12X/QED22X/QED23X
Narrow reception angle: 24°C
Daylight filter
Package material and colour: black epoxy
High sensitivity
Applications:
This product is general usage and suitable for many different applications.
Specification
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 7µs |
| Typical Rise Time | 7µs |
| Number of Channels | 1 |
| Maximum Dark Current | 100nA |
| Angle of Half Sensitivity | ±12 ° |
| Number of Pins | 2 |
| Mounting Type | Through Hole |
| Package Type | T-1 3/4 |
| Dimensions | 6.1 Dia. x 8.77mm |
| Collector Current | 39mA |
| Diameter | 6.1mm |
| Maximum Wavelength Detected | 880nm |
| Spectral Range of Sensitivity | 880 nm |
| Emitter Collector Voltage | 5V |
| Saturation Voltage | 0.4V |
| Collector Emitter Voltage | 30V |
| Height | 8.77mm |
| Output Signal Type | Phototransistor |
