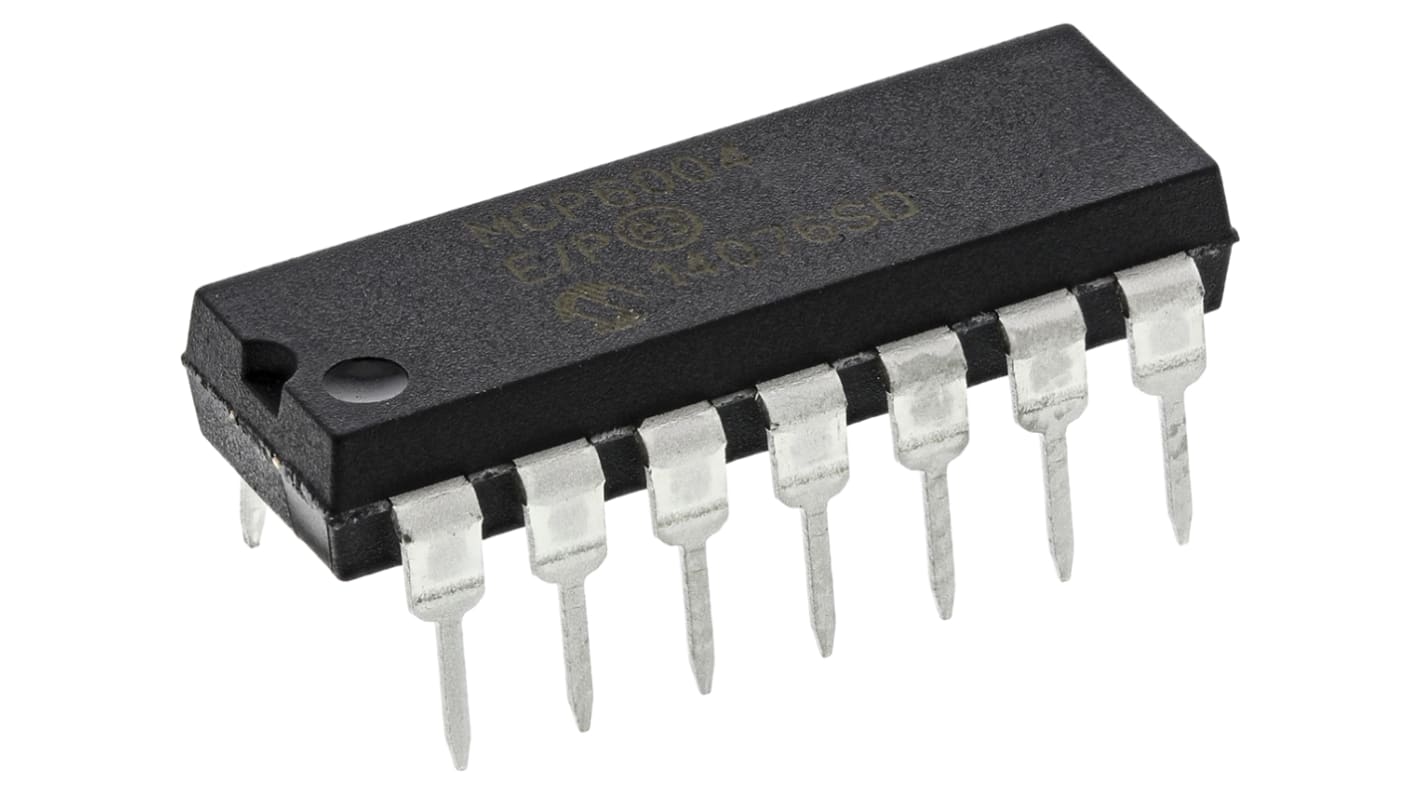

MCP6004-E/P Microchip, Op Amp, RRIO, 1MHz, 1.8 → 6 V, 14-Pin PDIP
- RS stock no.:
- 144-5806
- Mfr. Part No.:
- MCP6004-E/P
- Manufacturer:
- Microchip
480 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Tube of 30)
R 10,854
(exc. VAT)
R 12,482
(inc. VAT)
| Units | Per unit | Per Tube* |
| 30 - 120 | R 10,854 | R 325,62 |
| 150 - 570 | R 10,582 | R 317,46 |
| 600 - 1470 | R 10,265 | R 307,95 |
| 1500 + | R 9,854 | R 295,62 |
| *price indicative | ||
- RS stock no.:
- 144-5806
- Mfr. Part No.:
- MCP6004-E/P
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details
MCP6001/6002/6004 Operational Amplifiers
Operational Amplifiers, Microchip
Specification
Attribute | Value |
|---|---|
| Amplifier Type | General Purpose |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Number of Channels per Chip | 4 |
| Pin Count | 14 |
| Typical Single Supply Voltage | 1.8 → 6 V |
| Typical Gain Bandwidth Product | 1MHz |
| Typical Slew Rate | 0.6V/µs |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Rail to Rail | Rail to Rail Input/Output |
| Typical Voltage Gain | 112 dB |
| Length | 19.69mm |
| Height | 4.95mm |
| Width | 7.11mm |
| Typical Input Voltage Noise Density | 28nV/√Hz |
| Dimensions | 19.69 x 7.11 x 4.95mm |
