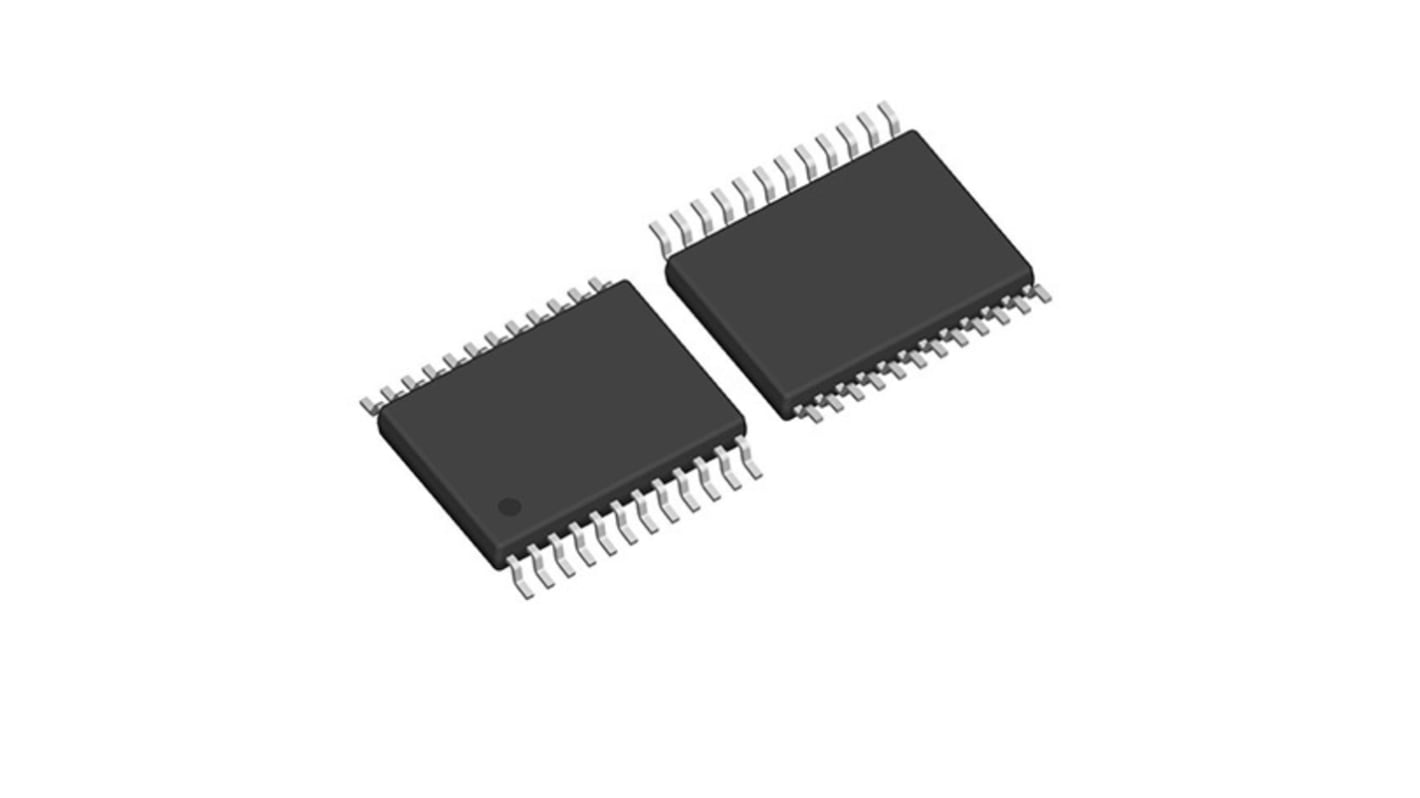

onsemi NCV7724DQBR2G, DC Motor Driver IC, 45 V 500mA 24-Pin, SSOP
- RS stock no.:
- 229-6431
- Mfr. Part No.:
- NCV7724DQBR2G
- Manufacturer:
- onsemi
On back order for despatch 2025/03/17
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Pack of 2)
R 90,735
(exc. VAT)
R 104,345
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | R 90,735 | R 181,47 |
| 10 - 98 | R 88,465 | R 176,93 |
| 100 - 248 | R 85,81 | R 171,62 |
| 250 - 498 | R 82,38 | R 164,76 |
| 500 + | R 79,085 | R 158,17 |
| *price indicative | ||
- RS stock no.:
- 229-6431
- Mfr. Part No.:
- NCV7724DQBR2G
- Manufacturer:
- onsemi
Technical data sheets
Legislation and Compliance
Product Details
The ON Semiconductor NCV7724B series is an eight channel half−bridge driver with protection features designed specifically for automotive and industrial motion control applications. The product has independent controls and diagnostics, and the drivers can be operated in forward, reverse, brake, and high impedance states. The device is controlled via a 16 bit SPI interface and is daisy chain compatible.
Integrated high and low-side freewheeling protection
Overcurrent protection
Over temperature protection
Daisy chain compatible with multiples of 8-bit devices
Under voltage & overvoltage lockout
Overcurrent protection
Over temperature protection
Daisy chain compatible with multiples of 8-bit devices
Under voltage & overvoltage lockout
Specification
Attribute | Value |
|---|---|
| Motor Type | DC |
| Configuration | 8-Channel |
| Output Configuration | Half Bridge |
| Maximum IGBT Collector Current | 500mA |
| Maximum Output Current | 500mA |
| Maximum Supply Voltage | 5 V |
| Maximum Collector Emitter Voltage | 45 V |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 24 |
