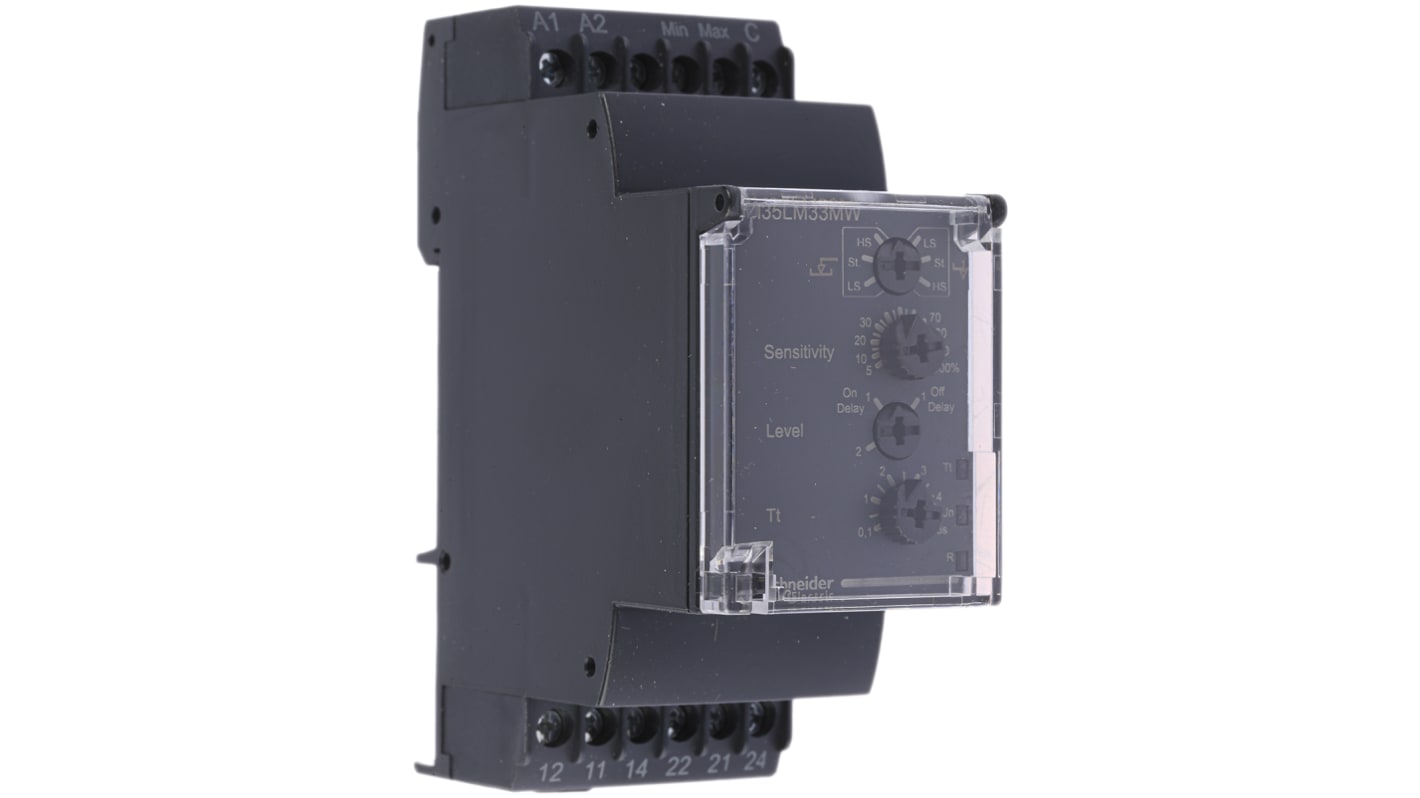

Schneider Electric Level Monitoring Relay, 1 Phase, DPDT, DIN Rail

Created and designed to measure the level of conductive liquid or non-conductive material, this monitoring and control relay is also used to control the actuation of pumps or valves to regulate levels and help protect submersible pumps against dry running, or help protects tanks from "overflow".

Predominantly used to control dosing of liquids in mixing processes and help to protect the heating elements in case there is non-immersion. Along with other control relays in its range, this really has a transparent and hinged cover on the print panel which contributes to avoiding accidental alterations of the settings.

• Directly coverable seal
• Suitable for spring water, town water, industrial and seawater
• Suitable for metallic sale, acid and base solutions as well as liquid fertilizers and non-concentrated alcohol
• Suitable for liquids that are commonly found in the food processing industry such as beer and coffee
• Relay RM35LV measures the levels by means of discrete sensors
• Forms part of the Zelio control range of products
• The relay monitored parameters are directed by resistive probes
• Features a time delay that is adjustable 0.1...5 s, +/- 10 %
• The switching capacity is 1250 VA
• Minimum switching current is 10 mA at 5 V DC and the maximum switching current is 5 A AC/DC
• Features and ingress protection of IP20 for the terminals and protection of IP30 for the casing
• Power consumption is 5 VA AC
• Maximum switching voltage is 250 V AC/DC

This monitoring relay by Schneider Electric is a versatile and efficient device for the automation, electronics, Electrical, and mechanical industries. It offers precise level control and monitoring, ensuring optimal performance and safety in various applications. Designed with advanced features, this DIN rail mounted device is a reliable solution for industrial temperature monitoring, featuring DPDT contact configuration and a screw terminal for easy installation.

• Equipped with a time delay function of 0.1 to 5 seconds, providing flexibility in monitoring applications
• Offers a switching capacity of 1250 VA, suitable for a wide range of control relay applications
• Utilisation categories AC 12, AC 13, AC 14, AC 15, DC 12, and DC 13, conforming to IEC standards for enhanced reliability
• Precise sensitivity adjustment from 5% to 100%, ensuring accurate control and monitoring
• Green Premium verified product, promoting sustainability and environmental responsibility
• Robust construction with insulation resistance exceeding 500 MOhm, ensuring long term durability and safety
• Wide operating temperature range of 20°C to +50°C, suitable for diverse industrial environments
• Compact design with a width of 35mm, saving valuable space in control panels

• Ideal for level control and monitoring in industrial tanks, silos, and reservoirs
• Suitable for applications requiring precise time delay functions, such as pump control and motor protection
• Perfect for use in HVAC systems, water treatment plants, and manufacturing processes
• Suited for automation systems, control cabinets, and process control applications

Yes, this monitoring relay offers precise level monitoring for industrial applications.

Yes, the time delay function of 0.1 to 5 seconds ensures efficient pump control.

Yes, this DIN rail-mounted relay is perfect for various automation and control applications.

Yes, the relay is designed to operate reliably in harsh industrial environments.
