Schneider Electric Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 200 → 240V ac, DIN Rail
- RS stock no.:
- 124-0185
- Mfr. Part No.:
- RM22TU21
- Manufacturer:
- Schneider Electric
1 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Price (Excl VAT) Each
R 2,455.34
(exc. VAT)
R 2,823.64
(inc. VAT)
units | Per unit |
1 + | R 2,455.34 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS stock no.:
- 124-0185
- Mfr. Part No.:
- RM22TU21
- Manufacturer:
- Schneider Electric
Legislation and Compliance
Product Details

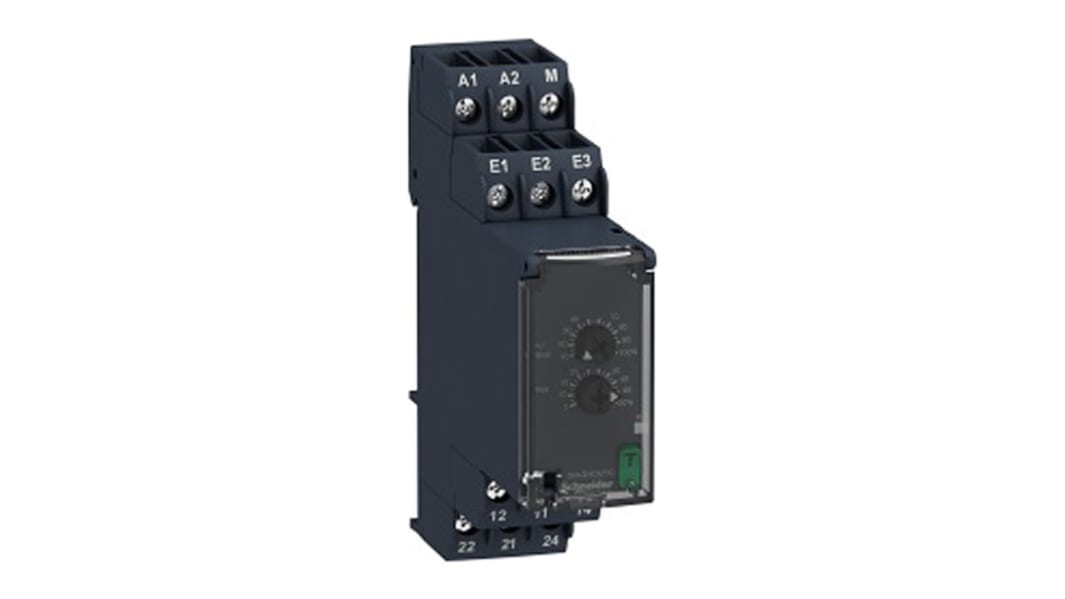

Schneider Electric Three Phase Control Relay RM22TU21
Forming part of the Zelio control range of products, the RM22TU21 control relay has been created and designed to monitor the sequence of phases, phase loss, overvoltage and under-voltage events. The RM22TU21 is a multifunctional control relay that has a switching capacity of 2000 VA.
Features & Benefits
- A sealable cover provides protection of the settings
- The settings include a diagnostic button for load circuit testing, a relay output status LED, a fault detection indication LED, a dial pointer LED indicator for relay power ON status and a relay output ON-delay or OFF-delay
- Without a time delay
- Has a measurement range of 200...240 V voltage AC
- 35 mm DIN Rail mount
Typical Applications
Customers will typically find this phase control relay being used in applications that include:
- Three-phase motors
- Moving 3 phase machines and equipment
- Industrial applications
- Power management, Automation & Process control
- Pumps, fans, mining and conveyors
- Cranes and escalators
- Predominantly used in environments that require control of connection for moving equipment
- Site equipment
- Agricultural equipment such as refrigerated trucks
- Control against reverse motor operation (lifting, handling, elevators and escalators)
Specification
Attribute | Value |
---|---|
Monitoring Application | Phase, Voltage |
Electrical Phase | 3 |
Voltage Sensing Range | 200 → 240V ac |
Contact Configuration | DPDT |
Voltage Sensitivity | Undervoltage |
Mounting Type | DIN Rail |
Phase Sensitivity | Phase Failure, Phase Sequence |
Series | Harmony Control |
Better World Product | Yes |
Better World Verification | Green Premium |
Dimensions | 22.9 x 79.5 x 90mm |
Maximum Operating Temperature | +60°C |
Width | 79.5mm |
Minimum Operating Temperature | -20°C |
Number of Poles | 2 |
Terminal Type | Screw |
Operating Temperature Range | +60°C |
Minimum Voltage Sensed | 200V ac |
Length | 22.9mm |
Height | 90mm |
Maximum Voltage Sensed | 240V ac |
