Hi-Bond HB 740 Conductive Metallic Tape, 19mm x 33m
- RS stock no.:
- 832-6325
- Mfr. Part No.:
- HB 740 19mm x 33m
- Manufacturer:
- Hi-Bond
26 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 709,01
(exc. VAT)
R 815,36
(inc. VAT)
| Units | Per unit |
| 1 - 4 | R 709,01 |
| 5 - 9 | R 691,28 |
| 10 - 39 | R 670,54 |
| 40 + | R 643,72 |
- RS stock no.:
- 832-6325
- Mfr. Part No.:
- HB 740 19mm x 33m
- Manufacturer:
- Hi-Bond
Technical data sheets
Legislation and Compliance
Not Applicable
- COO (Country of Origin):
- KR
Product Details

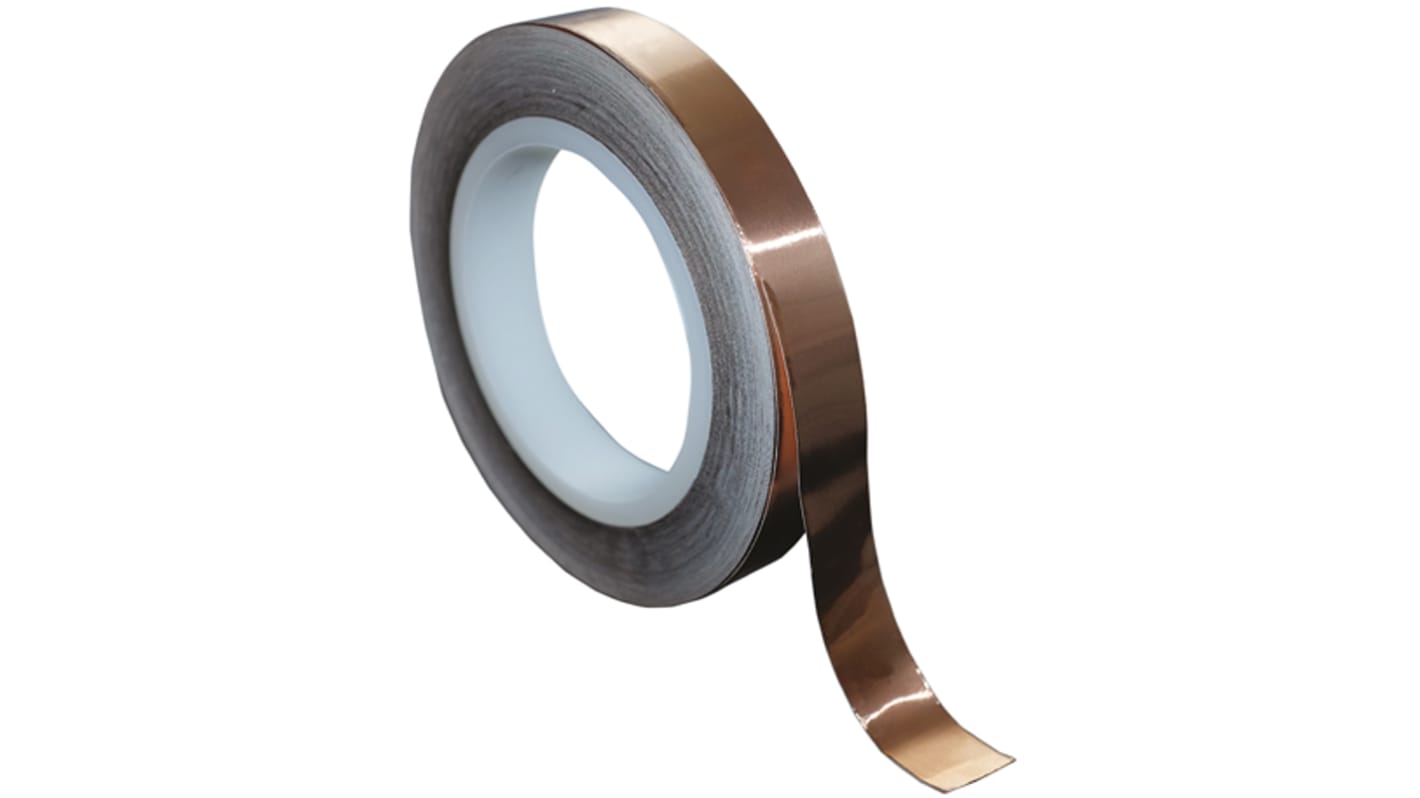

Hi-Bond 740 Conductive Copper Foil Tape
This 740 Copper Foil Tape from Hi-Bond features a conductive acrylic pressure sensitive adhesive with a uniform dispersion of conductive particles. The copper foil carrier is 35 microns thick, with an additional 30 micron-thick coating of acrylic adhesive containing nickel silver conductive particles.
Applications:
Electro-magnetic compatibility, shielding, radio frequency insulation, earthing and static electric control
Hi-Bond Tapes
Specification
Attribute | Value |
|---|---|
| Tape Type | Copper Tape |
| Total Thickness | 0.07mm |
| Foil Thickness | 0.035mm |
| Width | 19mm |
| Length | 33m |
| Conductivity | Conductive |
| Adhesion Strength | 2.7 N/cm |
| Adhesive Material | Acrylic |
| Material Plating | None |
| Tensile Strength | 43N/cm |
| Maximum Temperature Resistance | +130°C |
| Minimum Temperature Resistance | -30°C |
| Model Number | HB 740 |
