Advance Tapes AT526 Conductive Metallic Tape, 10mm x 33m

RS stock no.:: 542-5505
Manufacturer:: Advance Tapes

Advance Tapes AT526 Conductive Metallic Tape, 10mm x 33m

118 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)

Added

Price (Excl VAT) 1 Reel of 33 Metre(s)

R 1 431,14

(exc. VAT)

R 1 645,81

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 +	R 1 431,14	R 43,368
*price indicative

RS stock no.:: 542-5505
Manufacturer:: Advance Tapes

Technical data sheets

AT526 35 Micron Copper Foil Shielding Tape Data Sheet

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

Advance Tapes Copper Tapes

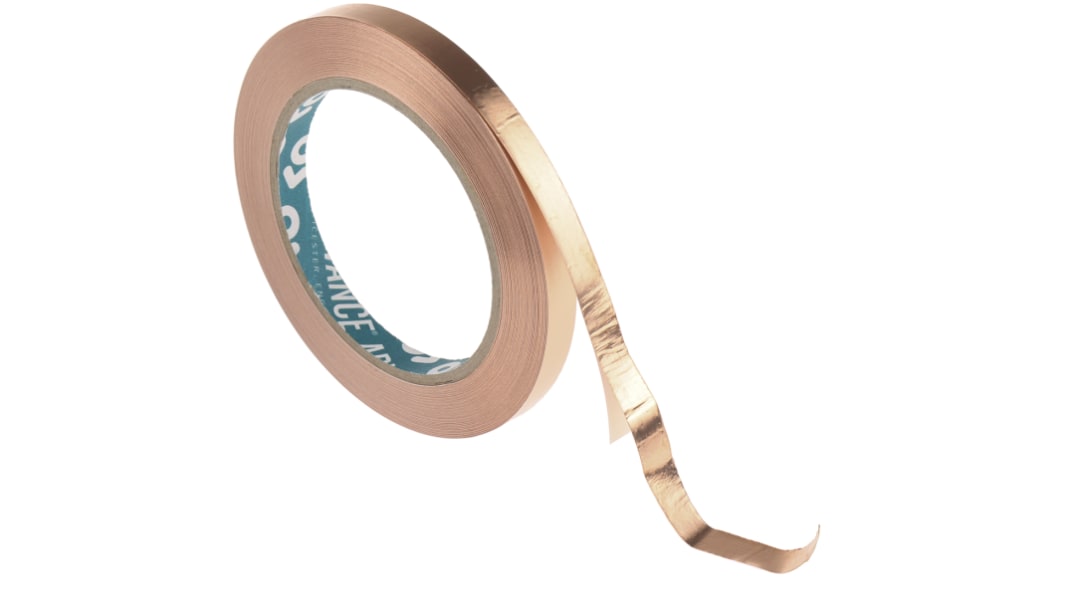

The Advance Tapes copper tape is a 35μ, coated with conductive acrylic adhesive supplied on a removable silicon liner. This tape is 0.06mm thick, 10mm wide and 33m long.
EMI/RFI shielding tapes:
When using this tape, galvanic compatibility should be taken into account.

Features and Benefits

Good high and low temperature resistance
Easy unwind
Can be easily soldered
Superior shielding effectiveness
Breaking load is 40N/cm
Operating temperature ranges between -20°C and 155°C

Applications

Heating and ventilation
Construction industry
Manufacturing
Duct sealing

Specification

Attribute	Value
Tape Type	Copper Tape
Total Thickness	0.06mm
Foil Thickness	0.035mm
Width	10mm
Length	33m
Conductivity	Conductive
Adhesion Strength	4.5 N/cm
Adhesive Material	Thermosetting Acrylic
Material Plating	None
Tensile Strength	40N/cm
Maximum Temperature Resistance	+155°C
Complies with EN Legislation	BS EN 60454 - Part 2
Minimum Temperature Resistance	-20°C
Model Number	AT526

RS stock no.:: 542-5505
Manufacturer:: Advance Tapes

AT526 35 Micron Copper Foil Shielding Tape Data Sheet
