Advance Tapes AT506 Non-Conductive Aluminium Foil Tape 0.09mm, W.50mm, L.50m

Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): GB
Product Details

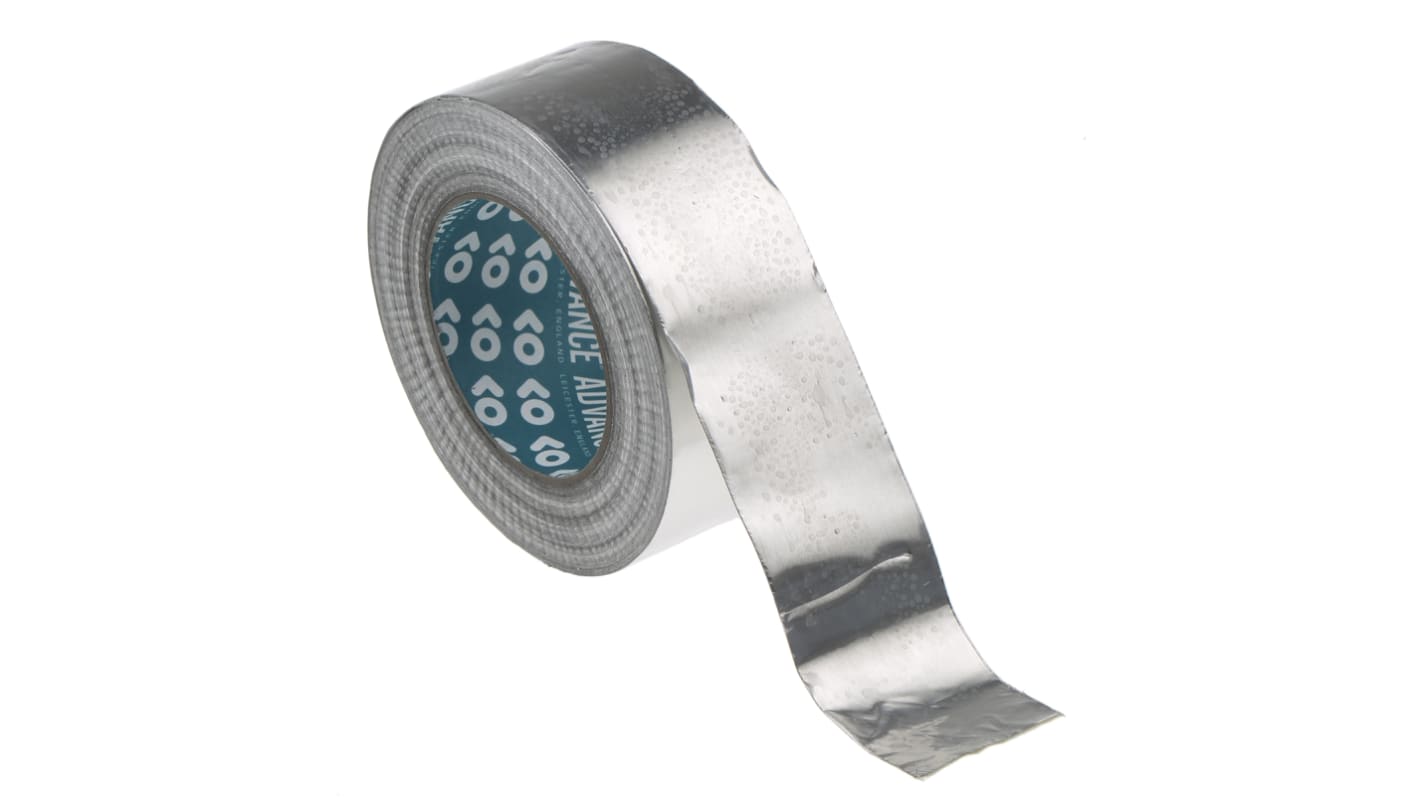

Advance Tapes Aluminium Tape

The Advance Tapes non-conductive aluminium tape is backed with a strong, polythene-coated release paper. It is a 50μm aluminium foil, coated one side with an acrylic, pressure-sensitive adhesive. This tape is 0.09mm thick, 50mm wide and 50m long.

Note:
There is no electrolytic corrosion factor associated with these products.

Features and Benefits

Breaking load is 35N/cm
Elongation is 11%
Operating temperature ranges between -20°C and 110°C

Flame retardant
Good high-temperature resistance
Easy tear and unwind
Water-resistant
Joining foil-faced glass fibre or rock wool suitable for heat reflection
Sealing cold store insulation, packing refrigerated export containers
Decoration of point of sale media
Sealing double glazing units
Peel off backing

Applications

Heating and ventilation
Construction industry
Manufacturing
Duct sealing

Certifications

EDF PMUC approved for use in nuclear power stations
BS476 Part 6 Class O and Part 7 Category 1

Specification
Attribute Value
Tape Type Aluminium Tape
Total Thickness 0.09mm
Foil Thickness 0.05mm
Width 50mm
Length 50m
Conductivity Non-Conductive
Adhesion Strength 4 N/cm
Adhesive Material Acrylic
Tensile Strength 35N/cm
Maximum Temperature Resistance +110°C
Minimum Temperature Resistance -20°C
Model Number AT506
591 Available from UK/Europe in 4–6 working days (Covid-19 flight delays could impact quoted delivery times) for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Price (Excl VAT) Each
R 417.39
(exc. VAT)
R 480.00
(inc. VAT)
units
Per unit
1 - 4
R 417.39
5 - 9
R 409.04
10 - 39
R 396.77
40 +
R 380.90
Not Available for premium delivery
