Microchip 150MHz MEMS Oscillator, 4-Pin CDFN, ±50ppm, DSC1001DI1-033.3300
- RS stock no.:
- 177-1798
- Mfr. Part No.:
- DSC1001DI1-033.3300
- Manufacturer:
- Microchip
765 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Pack of 5)
R 26,114
(exc. VAT)
R 30,031
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | R 26,114 | R 130,57 |
| 10 - 45 | R 25,462 | R 127,31 |
| 50 - 95 | R 24,698 | R 123,49 |
| 100 + | R 23,71 | R 118,55 |
| *price indicative | ||
- RS stock no.:
- 177-1798
- Mfr. Part No.:
- DSC1001DI1-033.3300
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details

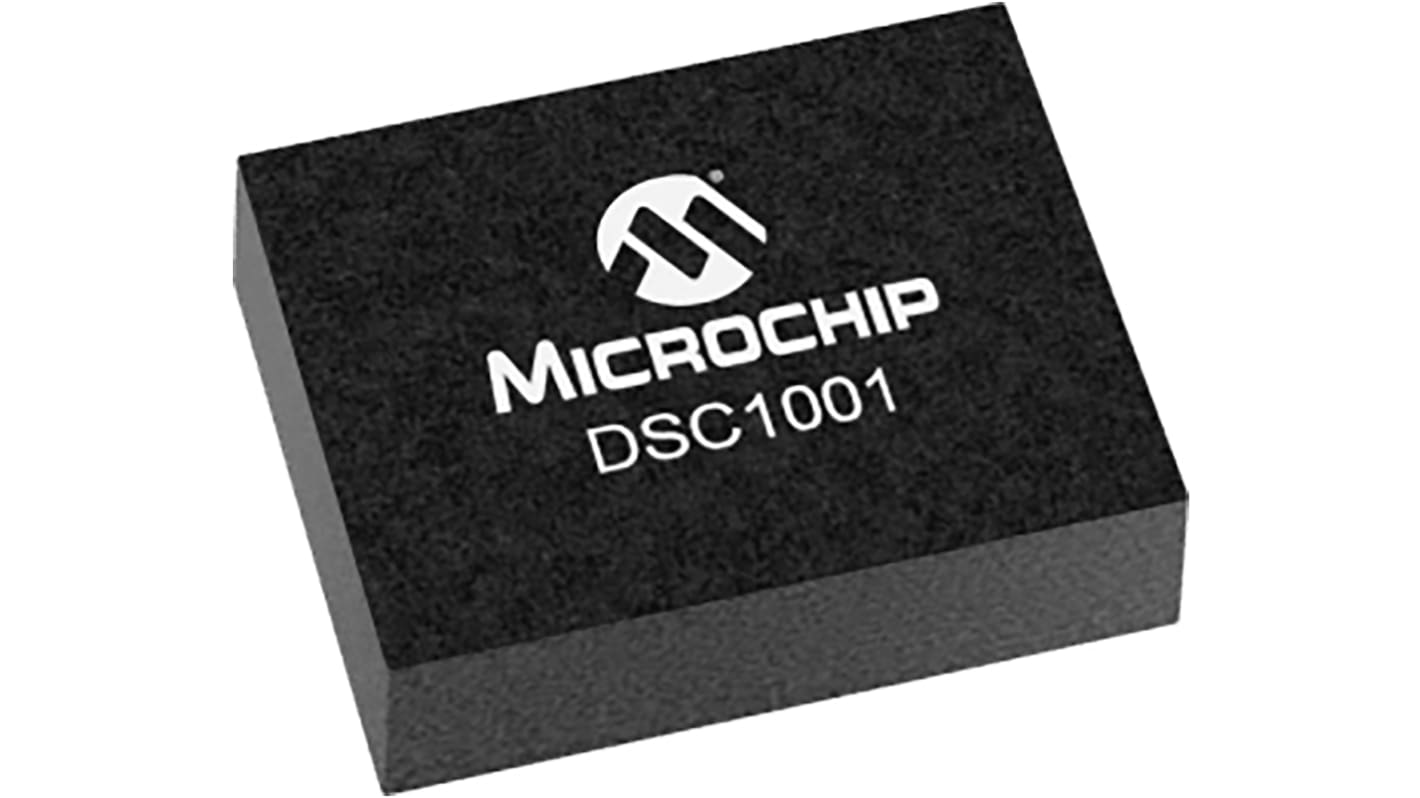

The DSC1001 is a silicon MEMS based CMOS oscillator offering excellent jitter and stability performance over a wide range of supply voltages and temperatures. The device operates from 1 to 150MHz with supply voltages between 1.8 to 3.3 Volts and temperature ranges up to -40ºC to 105ºC.The DSC1001 incorporates an all silicon resonator that is extremely robust and nearly immune to stress related fractures, common to crystal based oscillators.
Additional Features
Frequency Range: 1 to 150MHz
Exceptional Stability over Temperature
±10 PPM, ±20 PPM, ±25 PPM, ±50 PPM
Operating voltage of 1.7V to 3.6V
Operating Temperature Range
Ext. Industrial -40°C to 105°C
Industrial -40°C to 85°C
Ext. Commercial -20°C to 70°C
Commercial 0°C to 70°C
Low Operating and Standby Current:
5mA Operating (40MHz)
15μA Standby
Ultra Miniature Footprint:
2.5mm x 2.0mm x 0.85mm
3.2mm x 2.5mm x 0.85mm
5.0mm x 3.2mm x 0.85mm
7.0mm x 5.0mm x 0.85mm
Pb-free
Frequency Range: 1 to 150MHz
Exceptional Stability over Temperature
±10 PPM, ±20 PPM, ±25 PPM, ±50 PPM
Operating voltage of 1.7V to 3.6V
Operating Temperature Range
Ext. Industrial -40°C to 105°C
Industrial -40°C to 85°C
Ext. Commercial -20°C to 70°C
Commercial 0°C to 70°C
Low Operating and Standby Current:
5mA Operating (40MHz)
15μA Standby
Ultra Miniature Footprint:
2.5mm x 2.0mm x 0.85mm
3.2mm x 2.5mm x 0.85mm
5.0mm x 3.2mm x 0.85mm
7.0mm x 5.0mm x 0.85mm
Pb-free
Specification
Attribute | Value |
|---|---|
| Oscillator Type | MEMS |
| Maximum Output Frequency | 150MHz |
| Frequency Stability | ±50ppm |
| Mounting Type | Surface Mount |
| Package Type | CDFN |
| Pin Count | 4 |
| Dimensions | 2.5 x 2 x 0.85mm |
| Length | 2.5mm |
| Width | 2mm |
| Height | 0.85mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Automotive Standard | AEC-Q100 |
