- RS stock no.:
- 511-7052
- Mfr. Part No.:
- 1K3-100
- Manufacturer:
- Smartscan
7 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 15 507,68
(exc. VAT)
R 17 833,83
(inc. VAT)
| Units | Per unit |
| 1 + | R 15 507,68 |
- RS stock no.:
- 511-7052
- Mfr. Part No.:
- 1K3-100
- Manufacturer:
- Smartscan
Legislation and Compliance
Not Applicable
- COO (Country of Origin):
- GB
Product Details

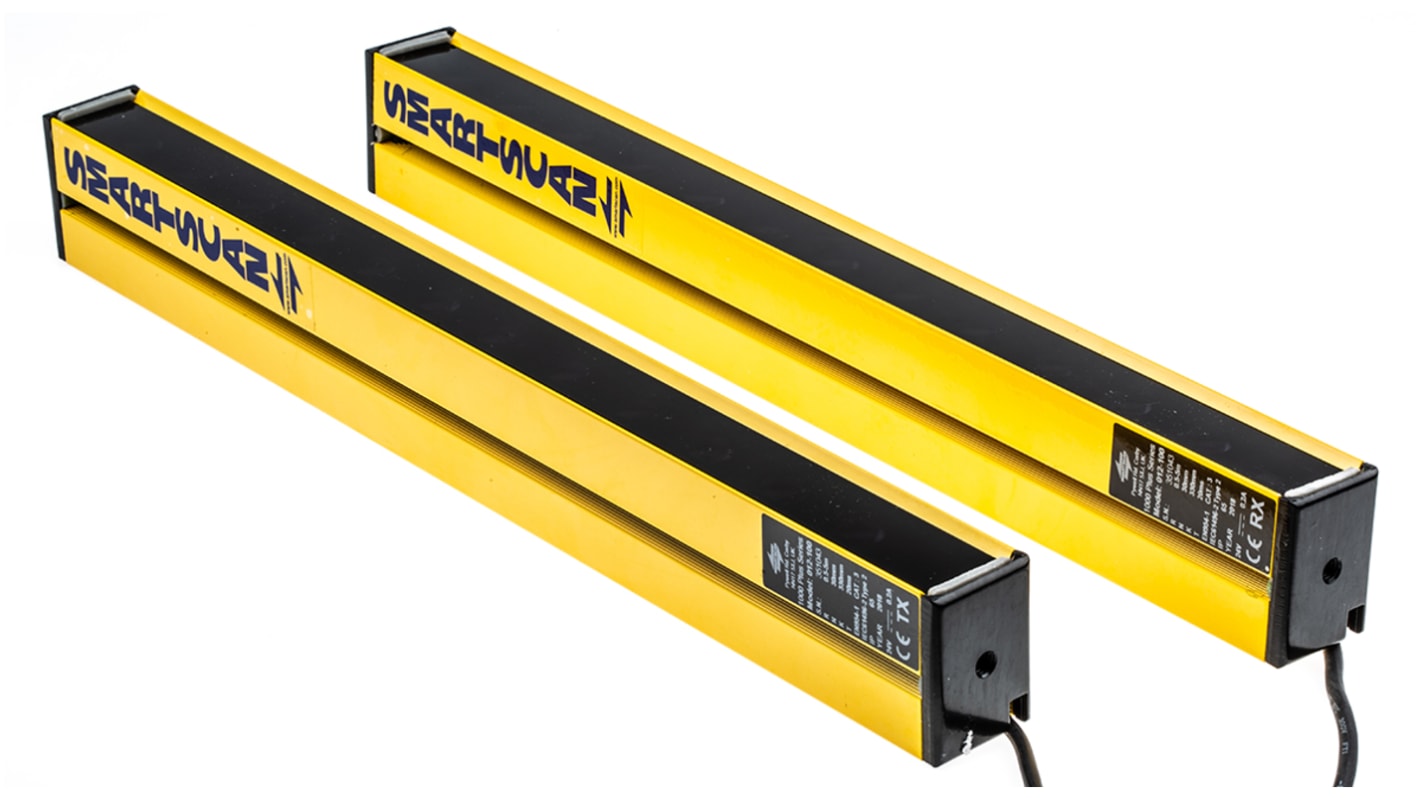

Smartscan Light Curtain
The Smartscan 1000 plus series light curtain is a 30mm resolution light curtain with 12 beams. This product represents a major step forward in light curtain design. The system continually self tests itself and de-energises its output if a fault is detected. This eliminates the need for a ’test’ input. It has far higher safety integrity than those with a single output. The outputs are monitored by the light curtain (short circuit proof) and therefore, are termed ’control reliable’.
Warning:
These devices must be installed and used in accordance with the installation and operating instructions supplied with each product.
Warning:
These devices must be installed and used in accordance with the installation and operating instructions supplied with each product.
Features and Benefits
Simple installation and alignment with diagnostic indicators
No range setting required
Continuously self-testing system, no 'test' input required
Dual channel, fail-safe electronic outputs
All units come with a transmitter, a receiver, and 2 x 5m connecting cables
Waterproof enclosures
Flexible mounting options
Scanning distance is 0.5m to 5m
Maximum response time is 40ms
No range setting required
Continuously self-testing system, no 'test' input required
Dual channel, fail-safe electronic outputs
All units come with a transmitter, a receiver, and 2 x 5m connecting cables
Waterproof enclosures
Flexible mounting options
Scanning distance is 0.5m to 5m
Maximum response time is 40ms
Applications
Robots
Packaging machines
Special purpose equipment
Process machinery
Injection moulding machines
Transfer lines
Automated warehouses
Textile machinery
Electronic component assembly lines
Bottling and filling machines
Packaging machines
Special purpose equipment
Process machinery
Injection moulding machines
Transfer lines
Automated warehouses
Textile machinery
Electronic component assembly lines
Bottling and filling machines
Certifications
BS EN 61496-1 type 2
BS IEC 61496-2 type 2
EN 62061 - SIL 2
EN ISO 13849 PL d
BS IEC 61496-2 type 2
EN 62061 - SIL 2
EN ISO 13849 PL d
Specification
Attribute | Value |
|---|---|
| Series | 1K3 |
| Beam Resolution | 30mm |
| Component Type | Receiver, Sender |
| Safety Type | 3 |
| SIL IEC 61508 | 2 |
| PL EN ISO 13849-1 | d |
| Number of Beams | 12 |
| Protective Height | 330mm |
| Minimum Scanning Distance | 0.5m |
| Maximum Scanning Distance | 5m |
| Maximum Response Time | 40 ms |
| Supply Voltage | 24 V dc |
| Length | 41mm |
| Height | 340mm |
| Application | Hand |
| Terminal Type | Cable |
| Width | 28mm |
| Dimensions | 28 x 41 x 340 mm |
| Features | EDM |
