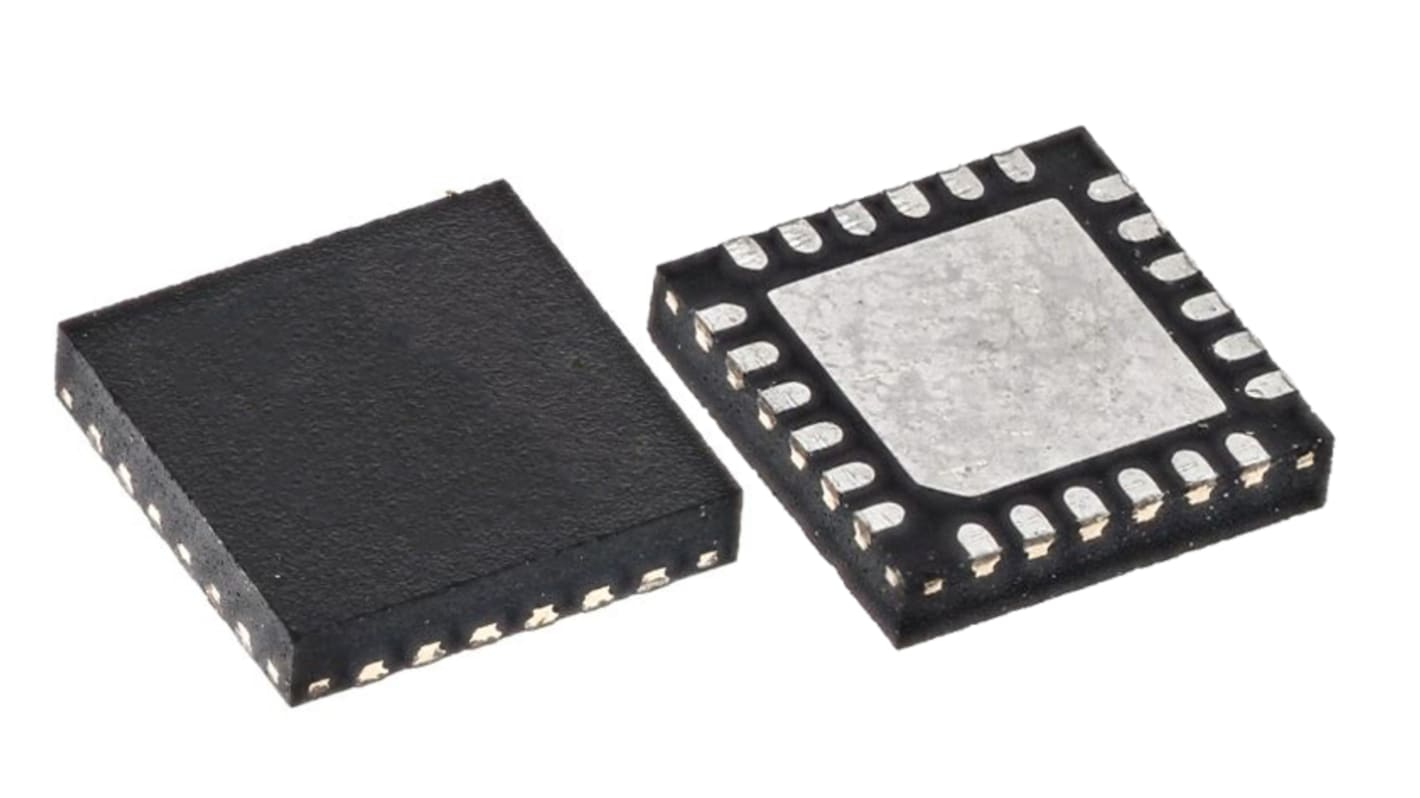

Maxim Integrated MAX3738ETG+ -0.5 → +6 V Laser Driver 24 QFN
- RS stock no.:
- 191-4278
- Mfr. Part No.:
- MAX3738ETG+
- Manufacturer:
- Maxim Integrated
150 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Tube of 75)
R 35,376
(exc. VAT)
R 40,682
(inc. VAT)
| Units | Per unit | Per Tube* |
| 75 - 225 | R 35,376 | R 2 653,20 |
| 300 + | R 34,492 | R 2 586,90 |
| *price indicative | ||
- RS stock no.:
- 191-4278
- Mfr. Part No.:
- MAX3738ETG+
- Manufacturer:
- Maxim Integrated
Technical data sheets
Legislation and Compliance
Product Details
Single +3.3V Power Supply
47mA Power-Supply Current
85mA Modulation Current
100mA Bias Current
Automatic Power Control (APC)
Modulation Compensation
On-Chip Temperature Compensation
Self-Biased Inputs for AC-Coupling
Ground-Referenced Current Monitors
Laser Shutdown and Alarm Outputs
Enable Control and Laser Safety Feature
Applications/Uses
1Gbps/2Gbps/4Gbps Fibre Channel SFF/SFP and GBIC Transceivers
Gigabit Ethernet SFF/SFP and GBIC Transceivers
Multirate OC-24 to OC-48 FEC Transceivers
47mA Power-Supply Current
85mA Modulation Current
100mA Bias Current
Automatic Power Control (APC)
Modulation Compensation
On-Chip Temperature Compensation
Self-Biased Inputs for AC-Coupling
Ground-Referenced Current Monitors
Laser Shutdown and Alarm Outputs
Enable Control and Laser Safety Feature
Applications/Uses
1Gbps/2Gbps/4Gbps Fibre Channel SFF/SFP and GBIC Transceivers
Gigabit Ethernet SFF/SFP and GBIC Transceivers
Multirate OC-24 to OC-48 FEC Transceivers
Specification
Attribute | Value |
|---|---|
| Laser Type Driven | SFF, SFP |
| Dimensions | 4.1 x 4.1 x 0.8mm |
| Package Type | QFN |
| Number of Pins | 24 |
| Length | 4.1mm |
| Maximum Supply Voltage | +6V |
| Minimum Supply Voltage | -0.5V |
| Width | 4.1mm |
| Power Dissipation | 2222mW |
| Supply Voltage Range | -0.5 → +6 V |
