Key Switch, DPDT, 1 A @ 24 V dc 2-Way Common-Key
- RS stock no.:
- 739-2905
- Mfr. Part No.:
- IRL-5-M-S-2-RS
- Manufacturer:
- Lorlin
Usually in stock
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 287,51
(exc. VAT)
R 330,64
(inc. VAT)
| Units | Per unit |
| 1 - 14 | R 287,51 |
| 15 - 49 | R 280,32 |
| 50 - 99 | R 271,91 |
| 100 - 249 | R 261,03 |
| 250 + | R 250,59 |
- RS stock no.:
- 739-2905
- Mfr. Part No.:
- IRL-5-M-S-2-RS
- Manufacturer:
- Lorlin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

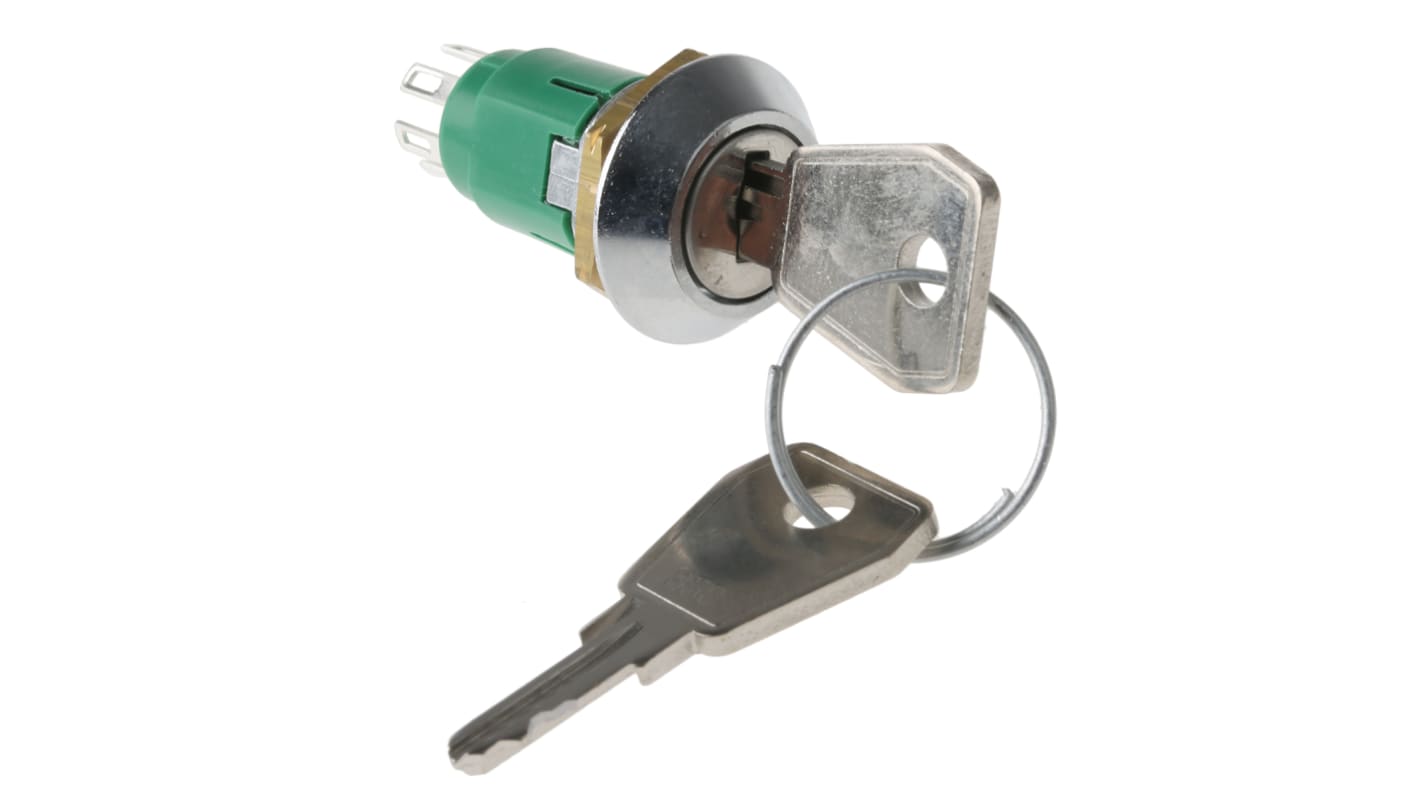

Lorlin Key Switch
The Lorlin key switch has a double pole double throw (DPDT) contact configuration. It has a zinc alloy housing with a tapered bezel. It is supplied with 2 nickel-plated mild steel keys.
The switch has a contact current rating of 1A at 24VDC.
The switch has a contact current rating of 1A at 24VDC.
Features and Benefits
Number of positions are 2
Switch operation is momentary
Key trapping
Random key
Solder terminal
Polyamide case material
Bezel shape is tapered
Depth behind panel is 29.6mm
Key index angle of 60°
Contact material is silver-plated brass
Mechanical life is 10,000 cycles
Operating temperature ranges between -20°C and 65°C
Switch operation is momentary
Key trapping
Random key
Solder terminal
Polyamide case material
Bezel shape is tapered
Depth behind panel is 29.6mm
Key index angle of 60°
Contact material is silver-plated brass
Mechanical life is 10,000 cycles
Operating temperature ranges between -20°C and 65°C
Applications
Control panels
Lighting operations
Lighting operations
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specification
Attribute | Value |
|---|---|
| Number of Positions | 2 |
| Switch Operation | Momentary |
| Contact Configuration | DPDT |
| Key Trapping | Yes |
| Contact Current Rating | 1 A @ 24 V dc |
| Key Type | Common |
| Terminal Type | Solder |
| Case Material | Polyamide |
| Bezel Shape | Tapered |
| Depth Behind Panel | 29.6mm |
| Key Index Angle | 60° |
| Contact Material | Silver Plated Brass |
| Maximum Operating Temperature | +65°C |
| Mechanical Life | 10000Cycles |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +65°C |
| Standards Met | RoHS |
