Phoenix Contact 64-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail Mount, 1A
- RS stock no.:
- 648-4050
- Mfr. Part No.:
- 2962638
- Manufacturer:
- Phoenix Contact
1 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 2 283,41
(exc. VAT)
R 2 625,92
(inc. VAT)
| Units | Per unit |
| 1 - 10 | R 2 283,41 |
| 11 - 25 | R 2 226,32 |
| 26 - 49 | R 2 159,53 |
| 50 - 99 | R 2 073,15 |
| 100 + | R 1 990,22 |
- RS stock no.:
- 648-4050
- Mfr. Part No.:
- 2962638
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

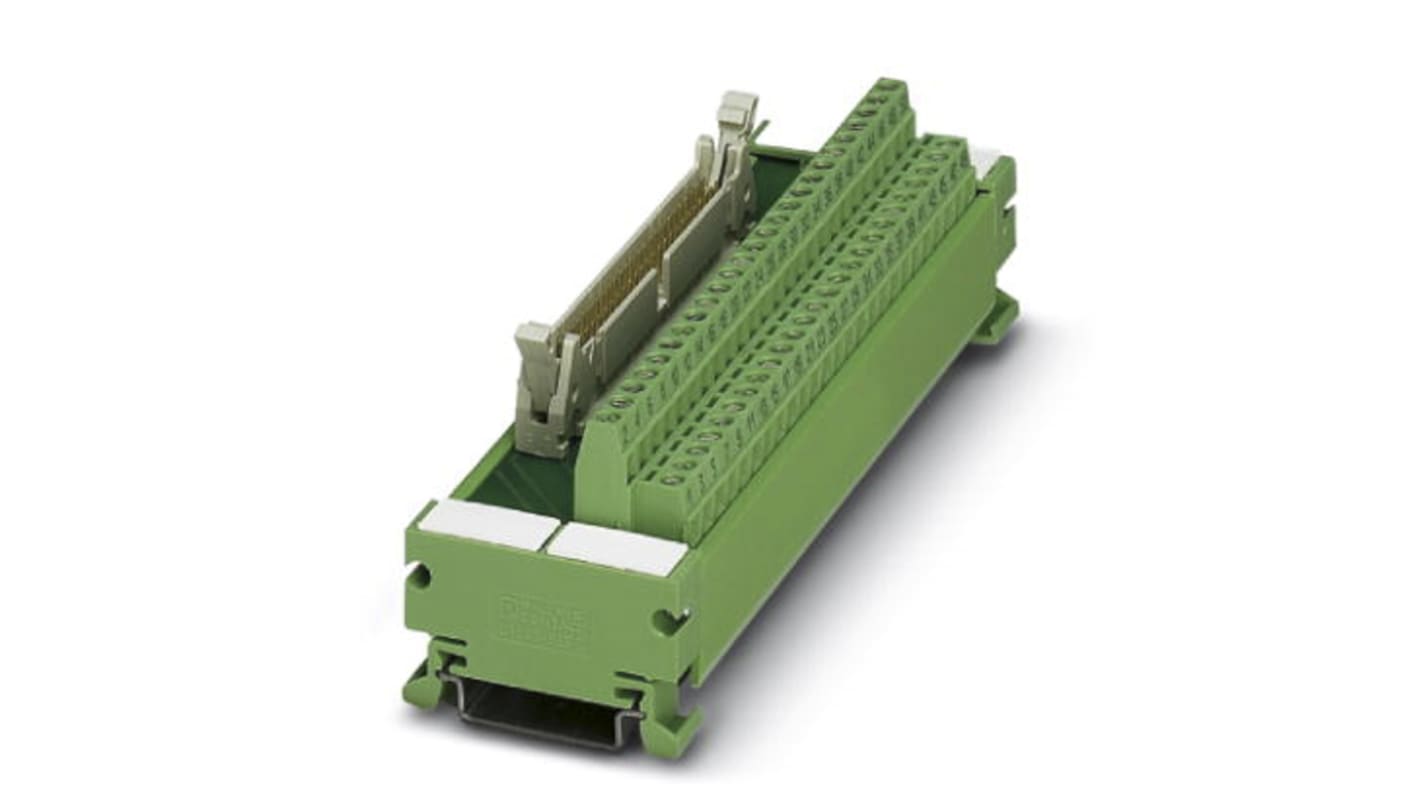

UM 45-FLK 10...64 Wiring Module
Connects ribbon cable socket boards with screw or tension spring terminals (ZFKDS)
For mounting on NS 35 / 7.5
Supplied with locking levers for plug fuse
Side components are equipped with identification labels
For mounting on NS 35 / 7.5
Supplied with locking levers for plug fuse
Side components are equipped with identification labels
Standards
IEC 60664, DIN VDE 0110
Approvals
UL, CUL
Specification
Attribute | Value |
|---|---|
| Gender | Male |
| Wire Size | 26 → 16 AWG |
| Number of Contacts | 64 |
| Connector Type | Flat Ribbon Cable |
| Mounting Type | DIN Rail Mount |
| Test Proof Voltage | 500V ac |
| Voltage Rating | 25 V ac, 60 V dc |
| Current Rating | 1A |
| Cable CSA | 0.14 → 1.5mm² |
| Dimensions | 186 x 50 x 45mm |
| Depth | 45mm |
| Length | 186mm |
| Minimum Operating Temperature | -20°C |
| Width | 50mm |
| Maximum Operating Temperature | +50°C |
