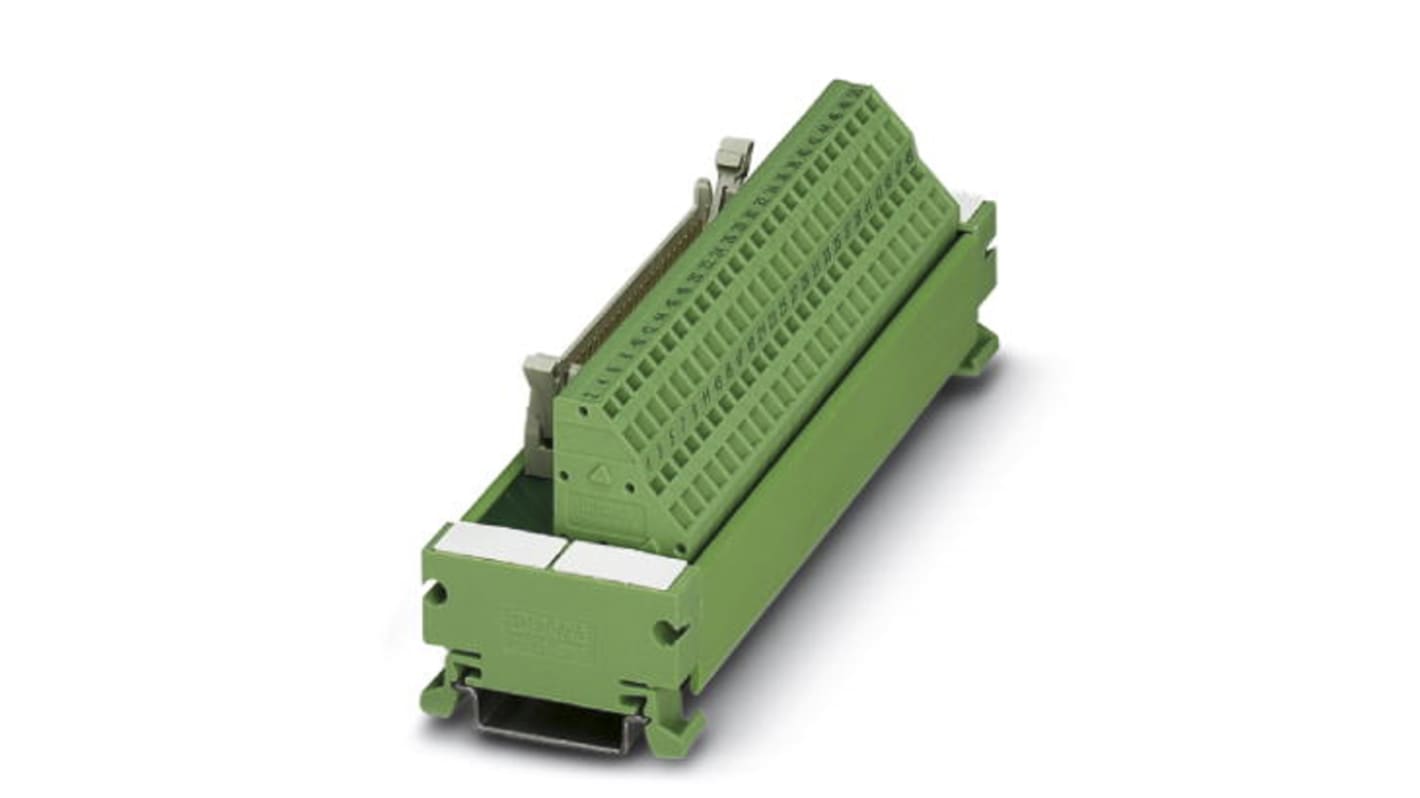

Phoenix Contact 50-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail Mount, 1A
- RS stock no.:
- 648-4038
- Mfr. Part No.:
- 2293585
- Manufacturer:
- Phoenix Contact
On back order for despatch 2024/05/16
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 1 932,44
(exc. VAT)
R 2 222,31
(inc. VAT)
| Units | Per unit |
| 1 - 10 | R 1 932,44 |
| 11 - 25 | R 1 884,13 |
| 26 - 49 | R 1 827,61 |
| 50 - 99 | R 1 754,51 |
| 100 + | R 1 684,33 |
- RS stock no.:
- 648-4038
- Mfr. Part No.:
- 2293585
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
UM 45-FLK 10...64 Wiring Module
Connects ribbon cable socket boards with screw or tension spring terminals (ZFKDS)
For mounting on NS 35 / 7.5
Supplied with locking levers for plug fuse
Side components are equipped with identification labels
For mounting on NS 35 / 7.5
Supplied with locking levers for plug fuse
Side components are equipped with identification labels
Standards
IEC 60664, DIN VDE 0110
Approvals
UL, CUL
Specification
Attribute | Value |
|---|---|
| Gender | Male |
| Wire Size | 24 → 14 AWG |
| Number of Contacts | 50 |
| Connector Type | Flat Ribbon Cable |
| Mounting Type | DIN Rail Mount |
| Test Proof Voltage | 500V ac |
| Voltage Rating | 50 V ac, 60 V dc |
| Current Rating | 1A |
| Cable CSA | 0.2 → 2.5mm² |
| Dimensions | 151 x 50 x 45mm |
| Depth | 45mm |
| Length | 151mm |
| Maximum Operating Temperature | +50°C |
| Width | 50mm |
| Minimum Operating Temperature | -20°C |
