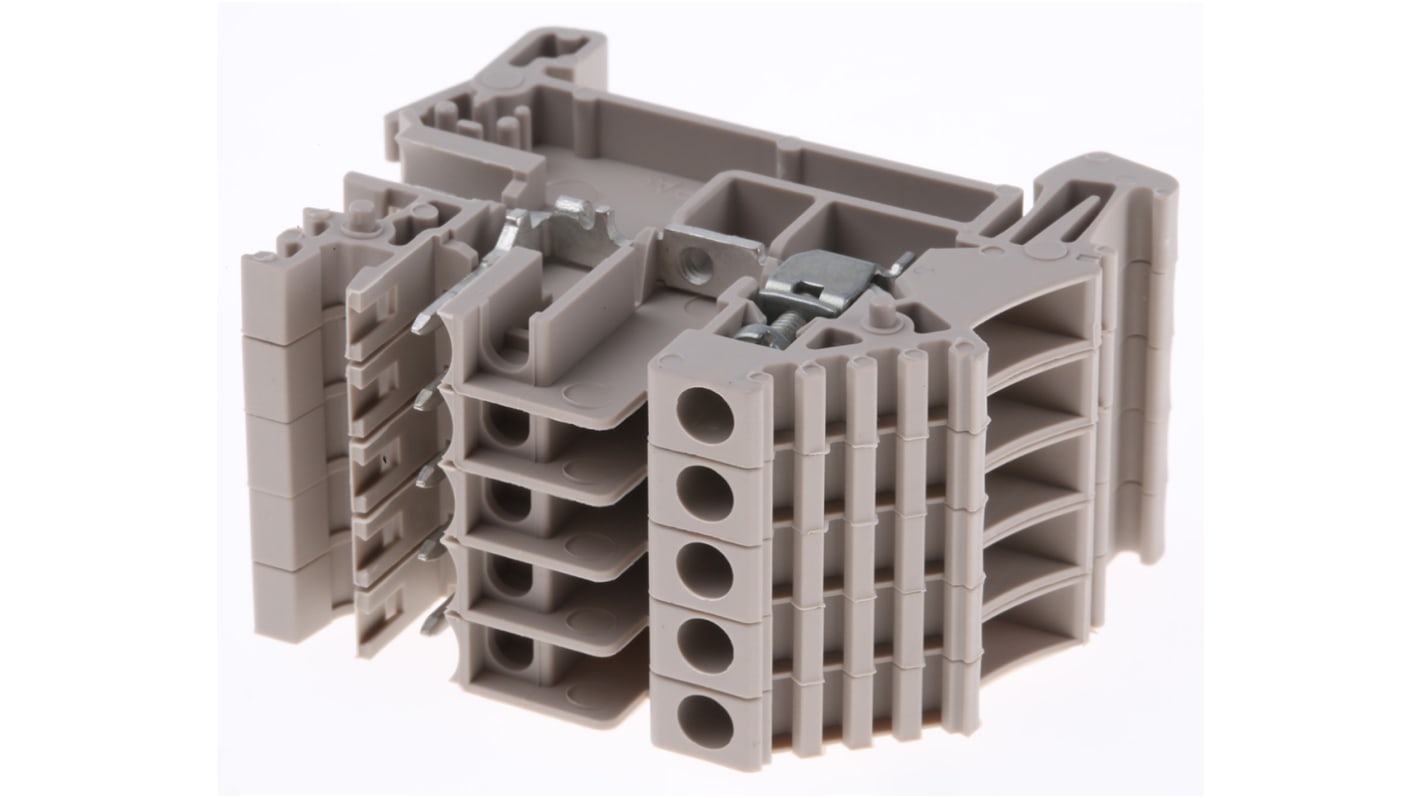

Weidmüller 1-Contact Interface Module, Clamping Yoke Connector, DIN Rail Mount, 16A
- RS stock no.:
- 232-588
- Mfr. Part No.:
- 1577340000
- Manufacturer:
- Weidmüller
On back order for despatch 2024/05/20
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Pack of 5)
R 31,848
(exc. VAT)
R 36,625
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 70 | R 31,848 | R 159,24 |
| 75 - 245 | R 31,052 | R 155,26 |
| 250 + | R 30,12 | R 150,60 |
| *price indicative | ||
- RS stock no.:
- 232-588
- Mfr. Part No.:
- 1577340000
- Manufacturer:
- Weidmüller
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
BL Terminal Series Compatible
TS32 ’G’ rail and TS35 ’Top Hat’ rail mounted terminals for use with the BL connector system enabling quick changing of functional units. The cable mounted BL units may be fitted to either the top or side of the terminal block.
All materials comply with RoHS requirements and have been tested to current environment guidelines.
All materials comply with RoHS requirements and have been tested to current environment guidelines.
Features:
• Rated voltage: 250Vac
• Rated current: 16A
• Nominal conductor csa: 1.5mm2
• Continuous operating temperature: -50 °C to 100 °C
• Material: PA 66
• To use with terminals
• Rated current: 16A
• Nominal conductor csa: 1.5mm2
• Continuous operating temperature: -50 °C to 100 °C
• Material: PA 66
• To use with terminals
Screw Connection
Easy application
250 V ac Rated Voltage
16 A Rated Current
Easy application
250 V ac Rated Voltage
16 A Rated Current
Product Application Information
BL series compatible accessories suited to DIN Rail terminals and BL connector systems. To make sure make sure that you have the right part, use our compatibility table as a guide.
TS35 'Top Hat' rail designed to be used with WDU1.5/BLZ/35
TS35 'Top Hat' rail designed to be used with WDU1.5/BLZ/35
Specification
Attribute | Value |
|---|---|
| Wire Size | 22 → 14 AWG |
| Number of Contacts | 1 |
| Connector Type | Clamping Yoke |
| Mounting Type | DIN Rail Mount |
| Voltage Rating | 250 V |
| Current Rating | 16A |
| Cable CSA | 0.5 → 4mm² |
| Dimensions | 49 x 5.08 x 37.5mm |
| Depth | 37.5mm |
| Length | 49mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
| Width | 5.08mm |
