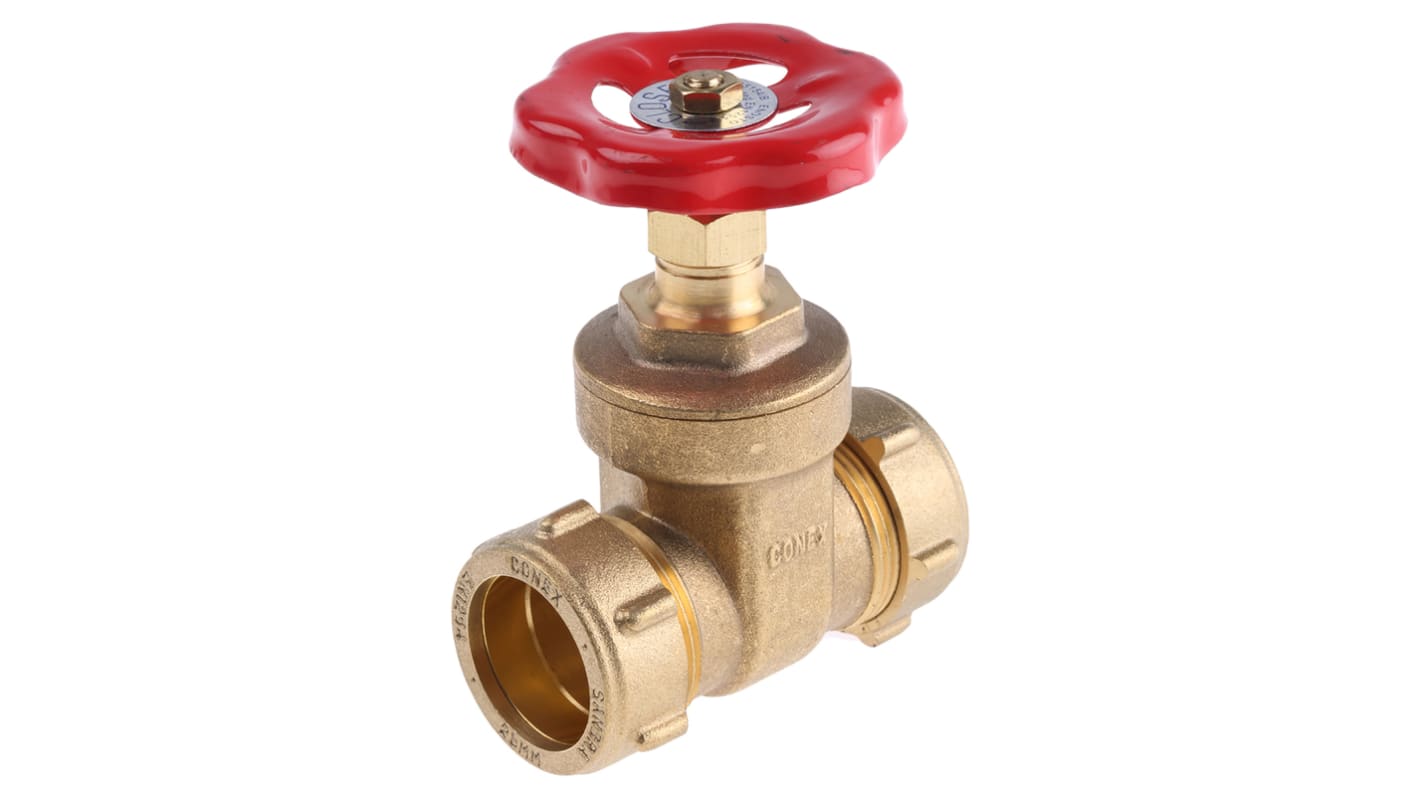

Conex-Banninger Gate Valve HH-1042500--, 28mm

Technical data sheets
Legislation and Compliance
Compliant
COO (Country of Origin): DE
Product Details

Gate Compression Valve

Manufactured in accordance with BS5154 series B
Compression ends are in accordance with BS864: part 2 (based on PN20), 5 bar at 120°C (hot)
Solid taper wedge and non-rising spindle
Asbestos-free gland packing, replaceable whilst in service
Suitable for water or oil

Approvals

7777

Standards

BS5154; BS864: Part 2

Gate, Stop & Check Valves

High quality brass valves

Specification
Attribute Value
Connection 28 mm Compression
Maximum Working Pressure 5 bar
Body Material Brass
Connection Size 28mm
Thread Standard or Connection Type Compression
23 Available in 4-6 working days for collection or delivery to major cities, unless heavy, bulky, hazardous or lithium metal (T&C’s Apply)
Price (Excl VAT) Each
R 503.23
(exc. VAT)
R 578.71
(inc. VAT)
units
Per unit
1 - 5
R 503.23
6 - 11
R 493.17
12 +
R 478.37
Not Available for premium delivery
