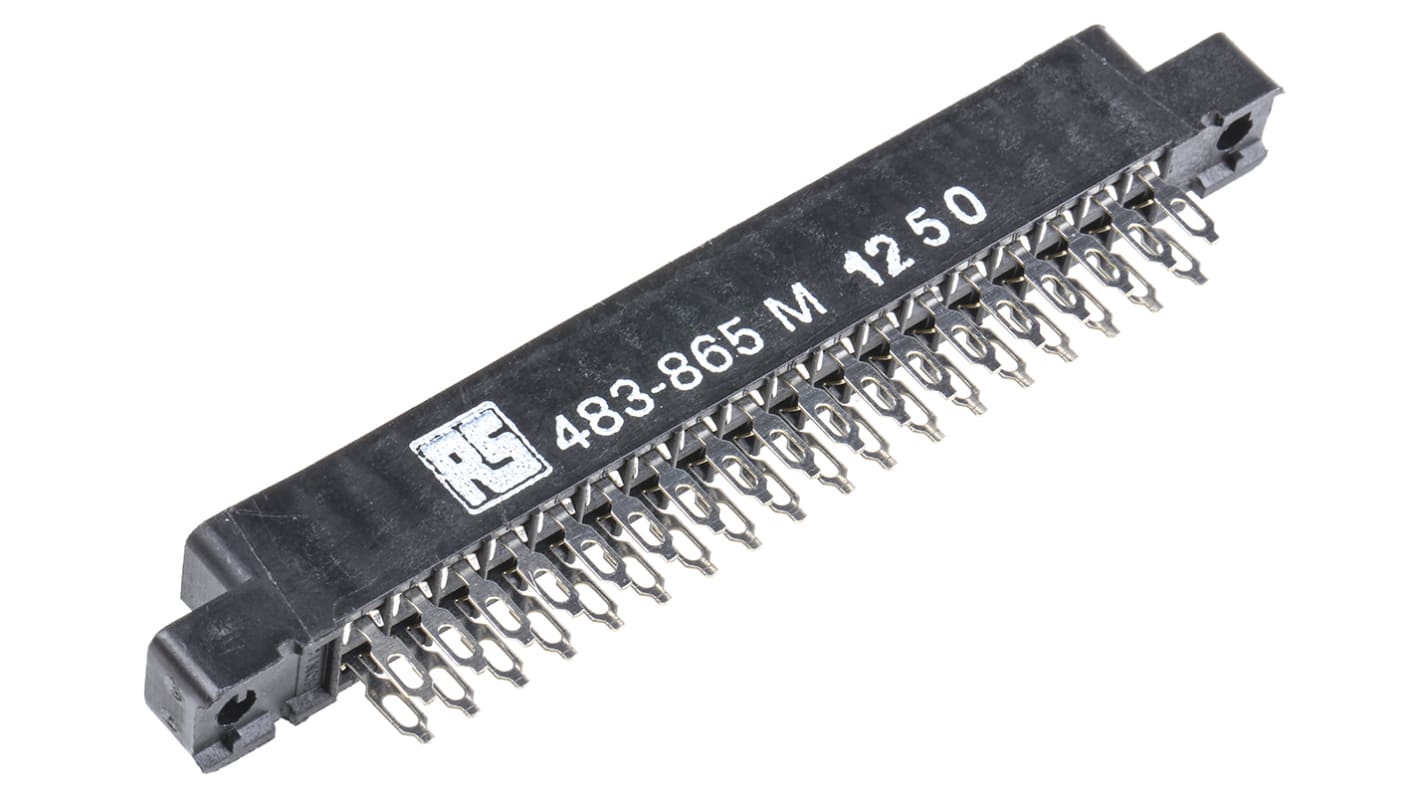

Cinch Edge Connector, 18-Contacts, 3.96mm Pitch, 2-Row, Solder Termination
- RS stock no.:
- 483-865
- Mfr. Part No.:
- BA000070000E000
- Manufacturer:
- Cinch
1 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 219,94
(exc. VAT)
R 252,93
(inc. VAT)
| Units | Per unit |
| 1 - 14 | R 219,94 |
| 15 - 49 | R 214,44 |
| 50 - 99 | R 208,01 |
| 100 - 249 | R 199,69 |
| 250 + | R 191,70 |
- RS stock no.:
- 483-865
- Mfr. Part No.:
- BA000070000E000
- Manufacturer:
- Cinch
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Double Sided 0.156in (3.96mm)
A double-sided 0.156 in (3.96 mm) pitch edge connector with solder tag terminations and gold-plated contacts. Suitable for use in micro-computer interface applications.
Temp rating -55 to +125°C
Edge Connectors - Cinch
Gold-flashed or gold-plated contacts. Glass-filled diallyl phthalate mouldings. Single-sided types have backing contacts.,Metal feet types Single- and double-sided edge connectors with removable metal feet. 32-way type supplied with polarising key. 43-way types have position 37 fitted with a polarising key.
Specification
Attribute | Value |
|---|---|
| Body Orientation | Straight |
| Number of Contacts | 18 |
| Number of Rows | 2 |
| Pitch | 3.96mm |
| Termination Method | Solder |
| Contact Plating | Gold over Nickel |
| Contact Material | Brass |
| Current Rating | 5A |
| Keying Way | Yes |
| Housing Material | Glass Fibre Reinforced PET |
| Minimum Operating Temperature | -65°C |
| Width | 8.63mm |
| Maximum Operating Temperature | +105°C |
| Length | 92.96mm |
| Depth | 11.63mm |
