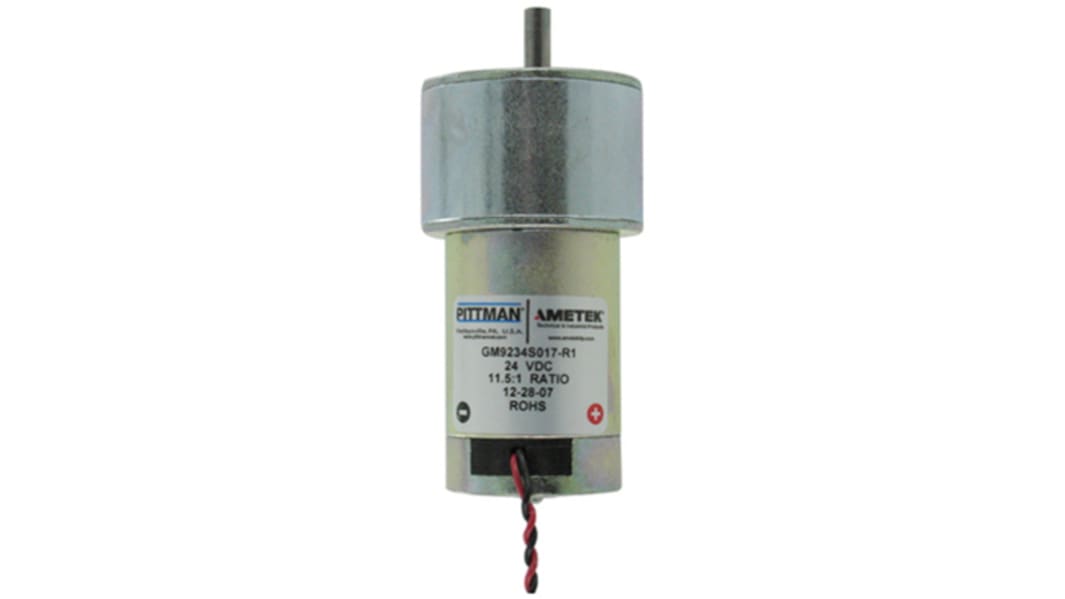

PITTMAN AMETEK TIP Brushed Geared DC Geared Motor, 14 W, 24 V dc, 43 Ncm, 424 rpm, 6.34mm Shaft Diameter
- RS stock no.:
- 921-3741
- Mfr. Part No.:
- GM9234S017-R1
- Manufacturer:
- PITTMAN AMETEK TIP
On back order for despatch 2024/08/12
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 3 079,62
(exc. VAT)
R 3 541,56
(inc. VAT)
| Units | Per unit |
| 1 + | R 3 079,62 |
- RS stock no.:
- 921-3741
- Mfr. Part No.:
- GM9234S017-R1
- Manufacturer:
- PITTMAN AMETEK TIP
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
GM9000 LO-COG Series
These revolutionary Pittman Ametek DC Gear motors offer a smooth, quiet operation and long life. An innovative cartridge brush assembly reduces audible and electrical noise and significantly improves brush life. By maintaining optimum brush force throughout the life of the motor, it ensures a longer life and excellent suitability for your application. All models are highly reliable and excellent quality.
2 Pole Permanent Magnet Stators Are Constructed of Ceramic Magnets Enclosed in Heavy-Gauge Steel Return Rings
Diamond Turned Commutators Ensure Maximum Brush Life
Standard Copper Graphite Brushes
12 V dc and 24 V dc available
Diamond Turned Commutators Ensure Maximum Brush Life
Standard Copper Graphite Brushes
12 V dc and 24 V dc available
Specification
Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| DC Motor Type | Brushed Geared |
| Power Rating | 14 W |
| Output Speed | 424 rpm |
| Shaft Diameter | 6.34mm |
| Maximum Output Torque | 43 Ncm |
| Gearhead Type | Spur |
| Gear Ratio | 11.5:1 |
| Dimensions | 50.8 (Dia.) x 93.4 mm |
| Current Rating | 5.2 A |
| Length | 93.4mm |
| Width | 50.8 (Dia.)mm |
| Standards Met | RoHS Compliant |
| Series | GM 9000 |
