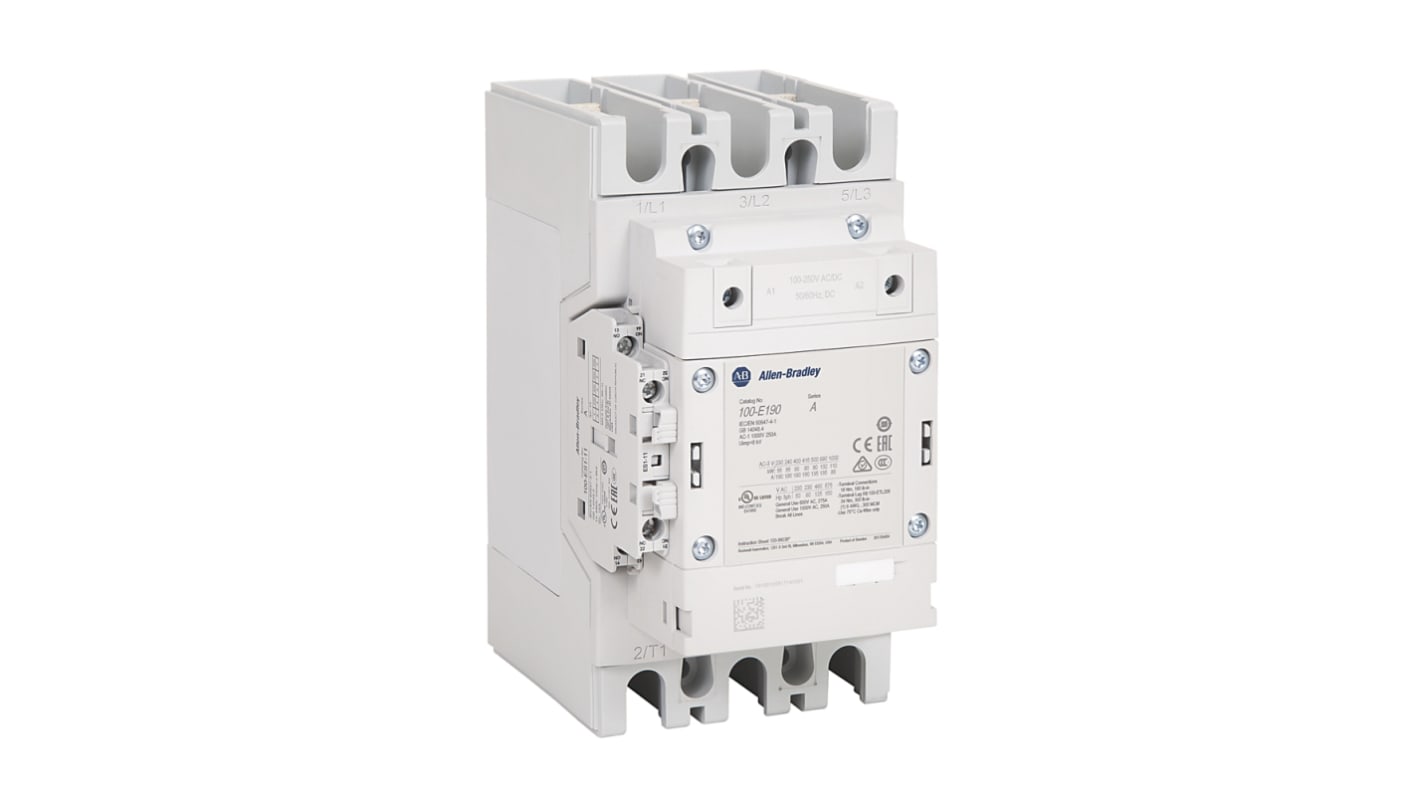

Allen Bradley 100-E Series Contactor, 100 → 250 V dc Coil, 3-Pole, 190 A, 90 kW, 1NO + 1NC, 400 V ac
- RS stock no.:
- 183-4557
- Mfr. Part No.:
- 100-E190ED11
- Manufacturer:
- Allen Bradley
- RS stock no.:
- 183-4557
- Mfr. Part No.:
- 100-E190ED11
- Manufacturer:
- Allen Bradley
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- SE
Product Details
100-E MCS-E Contactor ,190A, AC3 duty , 100-250V 50/60Hz / 100-250V DC Electronic Coil w/ PLC Interface , 1 N.O. 1 N.C.
Specification
Attribute | Value |
---|---|
Coil Voltage | 100 → 250 V dc |
Number of Poles | 3 |
Contact Voltage Rating | 400 V ac |
Contact Current Rating | 190 A |
Power Rating | 90 kW |
Series | 100-E |
Function | Direct on Line |
Normal State Configuration | 1NO + 1NC |
Number Of Auxiliary Contacts | 2 |
Terminal Type | Bar Connections |
Length | 105mm |
Width | 169.5mm |
Depth | 196mm |
Mounting Style | Panel Mount |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -40°C |
