Belden Coaxial Cable, 100m, RG58 Coaxial, Unterminated
- RS stock no.:
- 521-8436
- Manufacturer:
- Belden
30 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) 1 Reel of 100 Metre(s)
R 5 222,29
(exc. VAT)
R 6 005,63
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 5 | R 5 222,29 | R 52,223 |
| 6 + | R 5 091,73 | R 50,917 |
| *price indicative | ||
- RS stock no.:
- 521-8436
- Manufacturer:
- Belden
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- NL
Product Details
RG58C/U

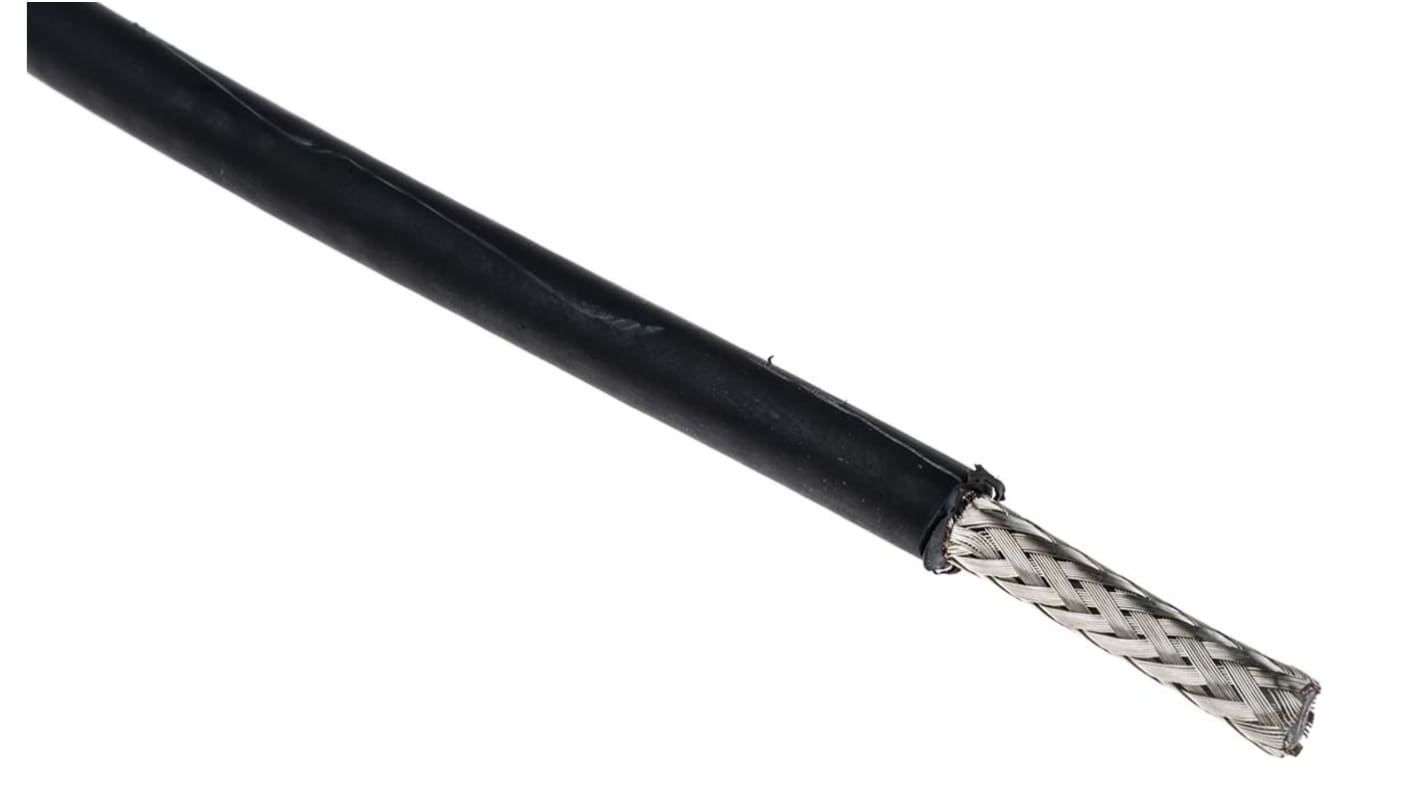

An RG58 coaxial cable for radio frequency connections.
Features and Benefits
·18mm tinned copper stranded conductor
·Solid polyethylene insulation
·Tinned copper braid
·Sheathed in PVC
·18mm tinned copper stranded conductor
·Solid polyethylene insulation
·Tinned copper braid
·Sheathed in PVC
Belden Coaxial Cable, 4.95mm OD, 100m Length - MRG5800.10100
For high-frequency signal transmission you can depend on, turn to this coaxial cable from Belden. The wiring is made from conductive, flexible copper wire strands that are tinned for corrosion resistance. This wiring is insulated with dielectric PE (polyethylene) material to protect it from impact damage and the wear and tear that comes from constant use. The tinned-copper braid shields your radio signals from interference and noise, while the PVC (polyvinyl chloride) outer jacket gives the cable an extra layer of protection. Use it to reliably connect your broadcast, emergency or security communication equipment.
Features & Benefits
• Can operate safely in temperatures from -40°C up to +70°C for use in harsh environments
• Single cable length of 100m for versatility in large installations and for broadcasting over long distances
• Impedance of 50Ω to carry power and transmit data with minimal signal loss
• Single cable length of 100m for versatility in large installations and for broadcasting over long distances
• Impedance of 50Ω to carry power and transmit data with minimal signal loss
Applications
• Wireless antenna communication
• Two-way Radios
• GPS (global positioning system)
• RFID (radio frequency identification)
• Two-way Radios
• GPS (global positioning system)
• RFID (radio frequency identification)
What type of connector can I use with this coaxial cable?
This is a standard size RG (radio guide) 58 coaxial cable. This means you can use it with your choice of universal audio connector, such as a BNC (Bayonet Neill-Concelman) or F type plug.
Specification
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG58 |
| Outer Diameter | 4.95mm |
| CPR Certification | Eca |
| Characteristic Impedance | 50 Ω |
| Attenuation | 79.2, 10.6 dB/100m @ 50MHz, 15.1 dB/100m @ 100MHz, 23.1 dB/100m @ 230MHz, 3.3 dB/100m @ 5MHz, 30.7 dB/100m @ 400MHz, 44.1 dB/100m @ 800MHz, 45.8 dB/100m @ 862MHz, 49.6 dB/100m @ 1GHz, 58.2 dB/100m @ 1350MHz, 66.8 dB/100m @ 1750MHz, 74.6 dB/100m @ 2150MHz |
| Length | 100m |
| Sheath Colour | Black |
| Conductor Strand Type | Stranded |
| Voltage Rating | 4000 V dc |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
| Core Strands | 19/33 |
| Maximum Operating Temperature | +70°C |
| Size of Strands | 0.18 mm |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Operating Temperature Range | Maximum of +70 °C |
| Capacitance | 100pF/m |
| Conductor Material | Tinned Copper |
| Insulation Material | PE |
| Velocity ratio | 66% |
| Minimum Operating Temperature | -30°C |
| Number of Strands | 19 |
