Product Details

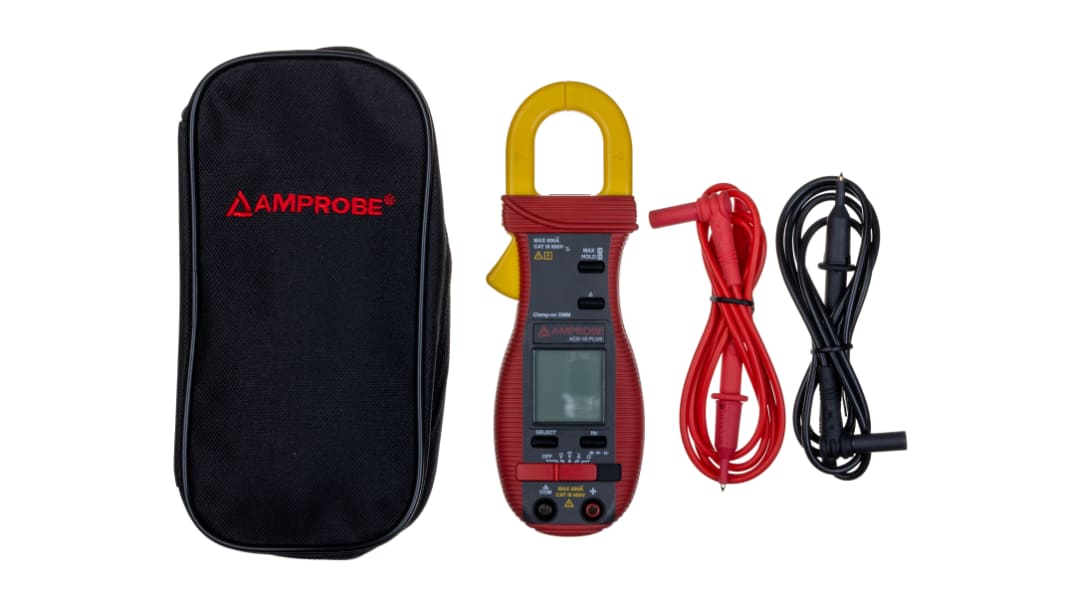

ACD-10 PLUS 600A Clamp Meter
The ACD-10 PLUS Current clamp meter offers thinner jaws over standard clamp meters. The digital clamp meter takes AC/DC measurements and offers Capacitance and Frequency.
The clamp meter also offers thinner jaws over standard clamp meters allowing access to tight areas and still accommodates conductors up to 26mm
AC and DC Voltage to 600V
AC Current to 600A
Thin Jaws, only 10mm thick
Resistance to 40MΩ
Continuity Buzzer
Capacitance to 3000 μF
Frequency measurement
In rush current
Hold and Maximum reading functions
Accommodates conductors up to 26mm in diameter
Auto ranging
Auto power off
Rubber over-molded case
Overload protected
AC and DC Voltage to 600V
AC Current to 600A
Thin Jaws, only 10mm thick
Resistance to 40MΩ
Continuity Buzzer
Capacitance to 3000 μF
Frequency measurement
In rush current
Hold and Maximum reading functions
Accommodates conductors up to 26mm in diameter
Auto ranging
Auto power off
Rubber over-molded case
Overload protected
Supplied with
Test leads, battery installed, soft carrying pouch and users manual
Buy a Fluke, Get one Free is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends €150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.com/en/freefluke
A proof of purchase in the form of a receipt or invoice is required.
Note: Offer not available in South Africa
Between March 1st, 2024 and August 31st, 2024, the customer spends €150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.com/en/freefluke
A proof of purchase in the form of a receipt or invoice is required.
Note: Offer not available in South Africa
Specification
Attribute | Value |
---|---|
Absolute Maximum AC Current Measurement | 600A ac |
Absolute Maximum AC Voltage Measurement | 600V ac |
Absolute Maximum DC Voltage Measurement | 600V dc |
Absolute Maximum Resistance Measurement | 40MΩ |
Model Number | ACD-10 PLUS |
Clamp Meter Type | AC/DC Clamp Meter |
Best AC Current Accuracy | ±(1.5% rdg + 8dgts) |
Best AC Voltage Accuracy | ±(1.5% rdg + 5dgts) |
Functions Measured | AC Current, AC Voltage, DC Voltage, Resistance |
Jaw Capacity Busbars | 26mm |
Best DC Voltage Accuracy | ±(0.3% rdg + 4dgts) |
Safety Category | CAT III 600V |
Best Resistance Measurement Accuracy | ±2% + 4 Digits |
Display Type | LCD |
Battery Type | 3 V Coin Battery |
Safety Category Voltage | 600V |
Safety Category Level | CAT III |
Weight | 139g |
Maximum Conductor Size | 26mm |
Height | 32mm |
Minimum Operating Temperature | 0°C |
Dimensions | 190 x 63 x 32mm |
Length | 190mm |
Width | 63mm |
Maximum Operating Temperature | +40°C |
Power Source | Battery |
