RS PRO Brass Sight Glass Non Return Valve, BSP 1in, 12 bar
- RS stock no.:
- 720-9349
- Manufacturer:
- RS PRO
5 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 3 788,57
(exc. VAT)
R 4 356,86
(inc. VAT)
| Units | Per unit |
| 1 + | R 3 788,57 |
- RS stock no.:
- 720-9349
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Not Applicable
- COO (Country of Origin):
- PT
Product Details

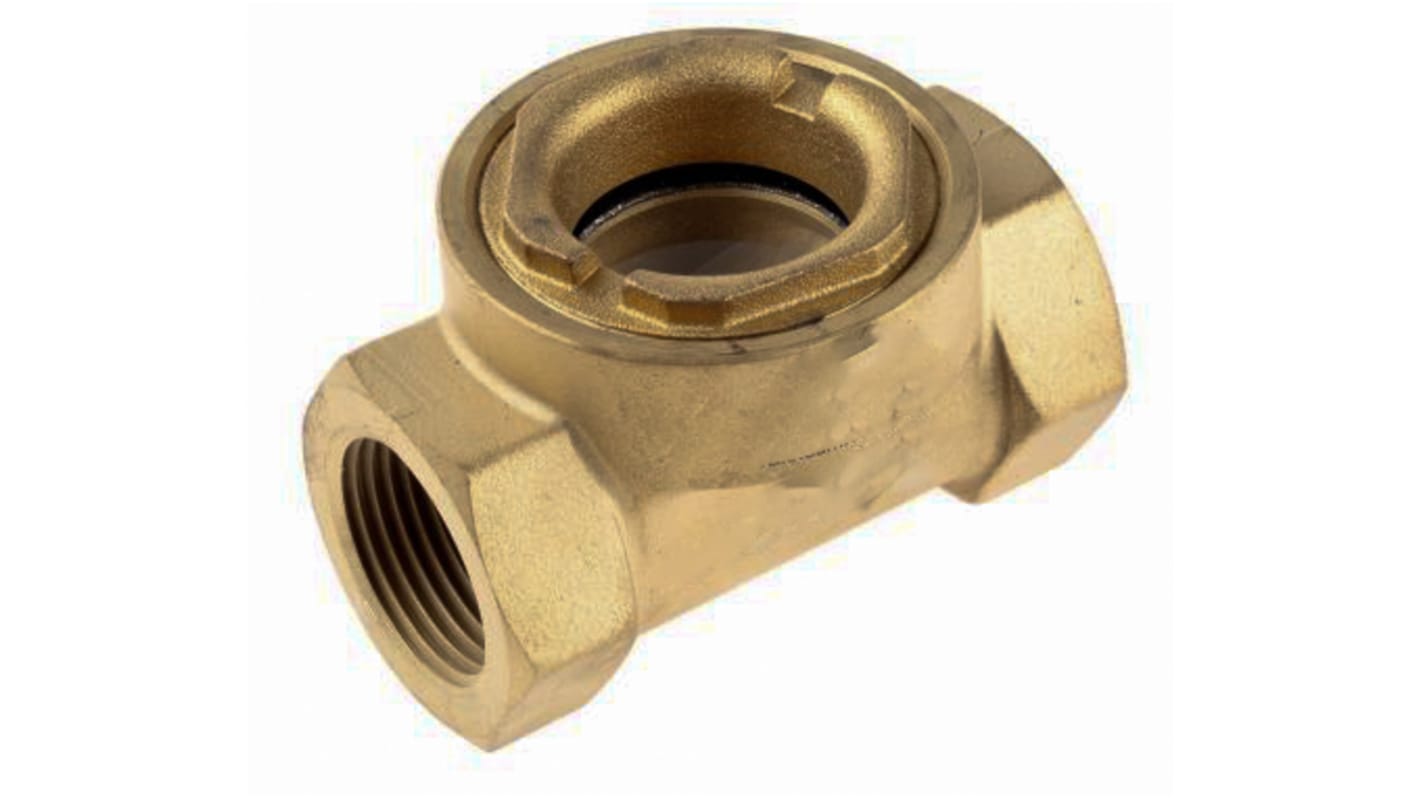

Single Window Sight Glass
A single window sight glass used to visually check the condition and leakage of steam traps. It is recommended that a sight glass be installed downstream of the steam trap, which is exactly how this one has been designed. The body and glass nut are made of brass and the gasket is non-asbestos, with a borosilicate glass window.
Features and Benefits
• Connections are female screwed
• 5 mm thick glass
• Horizontal or vertical installation
• 5 mm thick glass
• Horizontal or vertical installation
Specification
Attribute | Value |
|---|---|
| Type | Sight Glass |
| Body Material | Brass |
| Maximum Working Pressure | 12 bar |
| Thread Size | 1in |
| Thread Standard | BSP |
