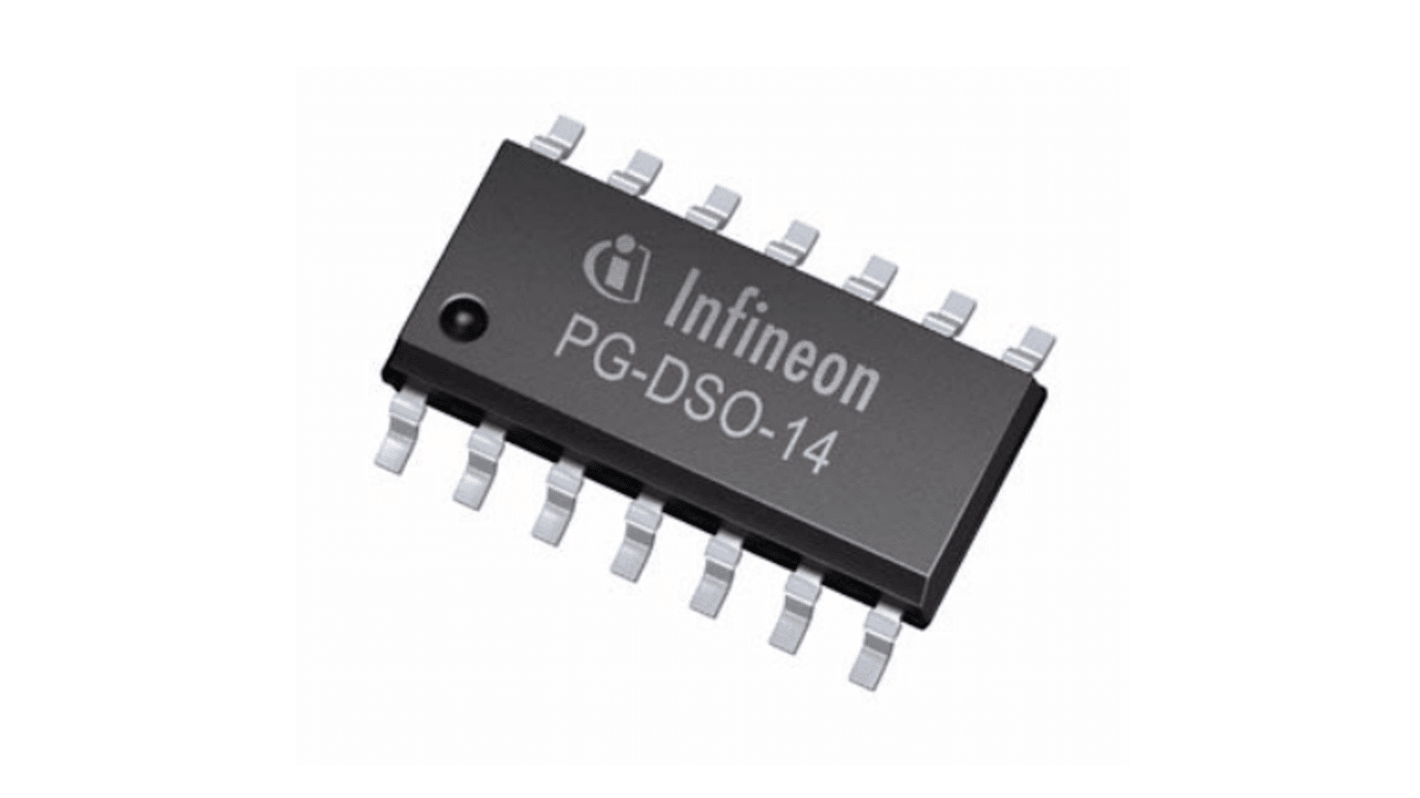

Infineon TLE62513GXUMA2, CAN Transceiver 1.0Mbps, 14-Pin PG-DSO-14
- RS stock no.:
- 229-1893
- Mfr. Part No.:
- TLE62513GXUMA2
- Manufacturer:
- Infineon
12445 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Pack of 5)
R 62,536
(exc. VAT)
R 71,916
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | R 62,536 | R 312,68 |
| 10 - 95 | R 60,972 | R 304,86 |
| 100 - 245 | R 59,142 | R 295,71 |
| 250 - 495 | R 56,776 | R 283,88 |
| 500 + | R 54,504 | R 272,52 |
| *price indicative | ||
- RS stock no.:
- 229-1893
- Mfr. Part No.:
- TLE62513GXUMA2
- Manufacturer:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details
The TLE6251-3G with an excellent passive behavior in Power Down, extremely suitable for mixed power supply HS-CAN networks.
As a successor of the TLE6251G, the TLE6251-3G is designed to provide an excellent passive behavior in Power Down . This feature makes the TLE6251-3G extremely suitable for mixed power supply HS-CAN networks. The TLE6251-3G provides different operation modes with a very low quiescent current in Sleep mode. Based on the high symmetry of the CANH and CANL signals, the TLE6251-3G provides a very low level of electromagnetic emission (EME) within a broad frequency range. The TLE6251-3G is integrated in a RoHS compliant PG-DSO-14 package and fulfills or exceeds the requirements of the ISO11898-5. The TLE6251G and the TLE6251-3G are fully pin compatible and function compatible. Based on the Infineon Smart Power Technology SPT®, the TLE6251-3G provides industry leading ESD robustness together with a very high electromagnetic immunity (EMI). The Infineon Smart Power Technology SPT® allows bipolar and CMOS control circuitry in accordance with DMOS power devices to exist on the same monolithic circuit. The TLE6251-3G and the Infineon SPT® technology are AEC qualified and tailored to withstand the harsh conditions of the automotive environment.
Summary of Features
•HS CAN Transceiver with data transmission rates up to 1 MBaud
•Compliant to ISO 11898-5
•Very low power consumption in Sleep mode
•Bus Wake-Up and local Wake-Up
•Inhibit output to control external circuitry
•Separate V IO input to adapt different micro controller supply voltages
•Separate output for failure diagnosis
•Optimized for low electromagnetic emission (EME)
•Optimized for a high immunity against electromagnetic interference (EMI)
•Very high ESD robustness, ± 9 kV according to IEC 61000-4-2
•Protected against automotive transients
•Receive-Only mode for node failure analysis
•TxD time-out function and RxD recessive clamping with failure indication
•TxD to RxD short circuit recognition with failure indication
•CANH and CANL short circuit recognition with failure indication
•Bus dominant clamping diagnosis
•Under-voltage detection at V CC, V IO and V S
•Power-Up and Wake-Up source recognition
•Short circuit proof and Over-Temperature protection
•Green Product (RoHS compliant)
•AEC Qualified
•Compliant to ISO 11898-5
•Very low power consumption in Sleep mode
•Bus Wake-Up and local Wake-Up
•Inhibit output to control external circuitry
•Separate V IO input to adapt different micro controller supply voltages
•Separate output for failure diagnosis
•Optimized for low electromagnetic emission (EME)
•Optimized for a high immunity against electromagnetic interference (EMI)
•Very high ESD robustness, ± 9 kV according to IEC 61000-4-2
•Protected against automotive transients
•Receive-Only mode for node failure analysis
•TxD time-out function and RxD recessive clamping with failure indication
•TxD to RxD short circuit recognition with failure indication
•CANH and CANL short circuit recognition with failure indication
•Bus dominant clamping diagnosis
•Under-voltage detection at V CC, V IO and V S
•Power-Up and Wake-Up source recognition
•Short circuit proof and Over-Temperature protection
•Green Product (RoHS compliant)
•AEC Qualified
Potential Applications
•Car Audio and Navigation Systems, Infotainment
•Body Controller and Gateway ECU’s
•Dashboard, Instrument Cluster
•Body Controller and Gateway ECU’s
•Dashboard, Instrument Cluster
Specification
Attribute | Value |
|---|---|
| Maximum Data Rate | 1.0Mbps |
| Number of Transceivers | 1 |
| IC Type | Interface IC |
| Power Down Mode | Sleep |
| Maximum Supply Current | 80 mA |
| Package Type | PG-DSO-14 |
| Pin Count | 14 |
