- RS stock no.:
- 425-692
- Mfr. Part No.:
- DT062S-CE06
- Manufacturer:
- Deutsch
59 Available in South Africa for same day despatch or collection. Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
3410 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Added
Price (Excl VAT) Each
R 27,60
(exc. VAT)
R 31,74
(inc. VAT)
Units | Per unit |
1 - 14 | R 27,60 |
15 - 49 | R 26,91 |
50 - 99 | R 26,10 |
100 - 249 | R 25,06 |
250 + | R 24,06 |
- RS stock no.:
- 425-692
- Mfr. Part No.:
- DT062S-CE06
- Manufacturer:
- Deutsch
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
DEUTSCH DT Series Plugs
DEUTSCH DT plug housings are designed for cable to cable connections. Their seals provide a robust seal with a high degree of environmental protection. Safe, versatile and reliable, DT plug connector housings are made from a thermoplastic which is ideal for automotive applications.
You will not struggle for choice as the DT plugs are available in 2 to 12 pin options. They use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.
You will not struggle for choice as the DT plugs are available in 2 to 12 pin options. They use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.
Features and Benefits
IP68 waterproof rating
14-20 AWG (2.5-0.5mm²)
Wire-to-wire connection
2/3/4/6/8/12 cavity arrangements
In-line, flange or PCB mount options
Integrated latch for mating
Wedgelocks confirm contact alignment and retention
Operating Temperature: -55°C to +125°C
14-20 AWG (2.5-0.5mm²)
Wire-to-wire connection
2/3/4/6/8/12 cavity arrangements
In-line, flange or PCB mount options
Integrated latch for mating
Wedgelocks confirm contact alignment and retention
Operating Temperature: -55°C to +125°C

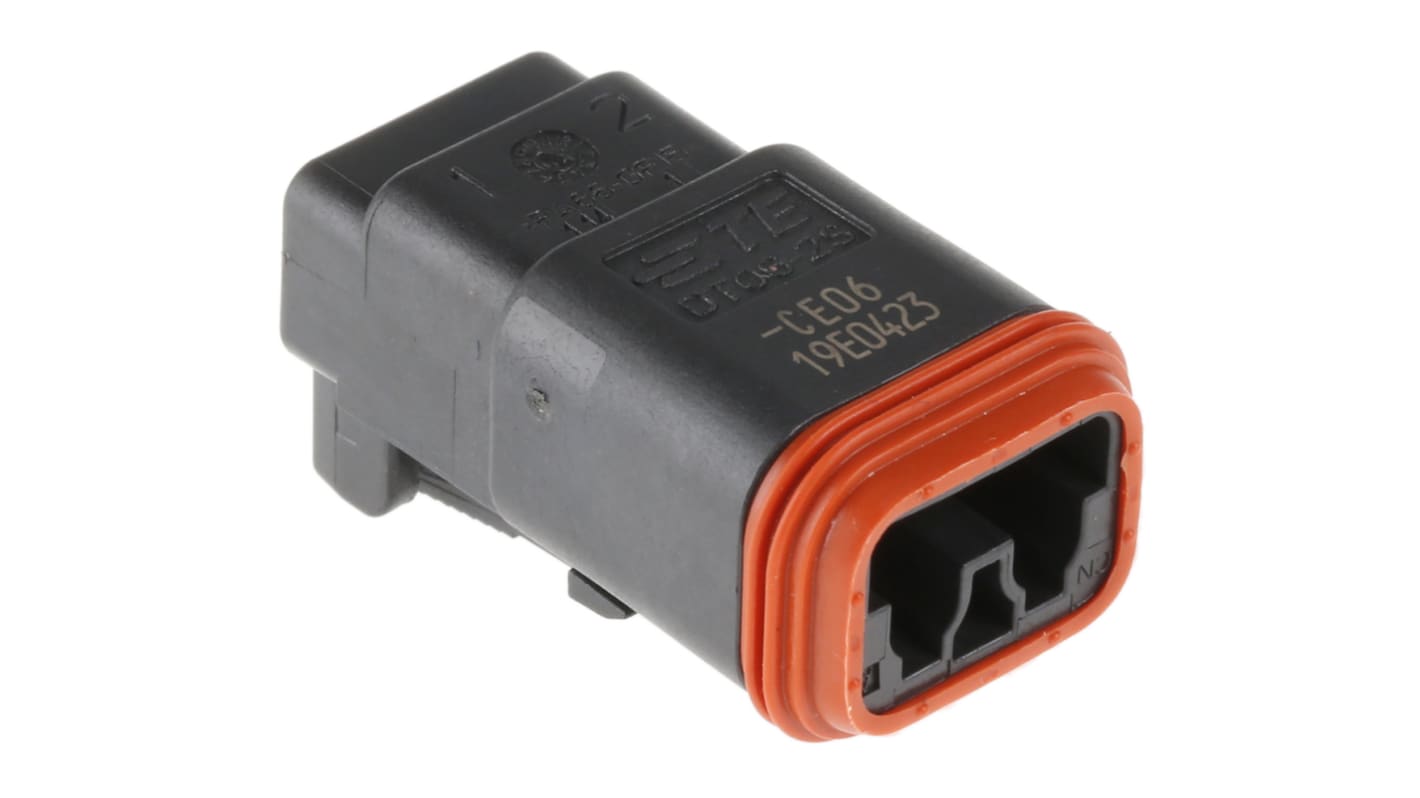

The Deutsch DT062S-CE06 is a 2-way automotive connector in a black plastic housing. This high-performance, tough connector is ideal for automotive applications in harsh environments.
This DT062S-CE06 male connector has a thin wall with 1.35 to 3.05mm wire insulation diameter. It also offers enhanced seal retention and works with the W2S-P012 green secondary lock.
This DT062S-CE06 male connector has a thin wall with 1.35 to 3.05mm wire insulation diameter. It also offers enhanced seal retention and works with the W2S-P012 green secondary lock.
2-way male plug connector
Black plastic housing
Thin wall
Perfect for tough environments
Compatible Wedge: Deutsch W2S-P012 (425-610)
IP68 rating (waterproof)
Voltage rating 250 V
Centerline (Pitch) 5.46mm
Primary locking feature integrated in the housing
Dimensions (WxLxH): 15.01 x 28.4 x 15.77 mm
Black plastic housing
Thin wall
Perfect for tough environments
Compatible Wedge: Deutsch W2S-P012 (425-610)
IP68 rating (waterproof)
Voltage rating 250 V
Centerline (Pitch) 5.46mm
Primary locking feature integrated in the housing
Dimensions (WxLxH): 15.01 x 28.4 x 15.77 mm
Typical Applications:
The DT06-2S-CE06 plug is ideal for use in engines, transmissions, chassis, and cabs. It is suitable for harsher environments, for example in construction, off-road, heavy goods, and agricultural vehicles. Example applications include engine management systems, hydraulics controls, diagnostics, ABS and chassis wiring.
Specification
Attribute | Value |
---|---|
Type | Automotive Connector |
Number of Contacts | 2 |
Gender | Male |
Current Rating | 13A |
Series | DT |
Colour | Black |
Termination Method | Crimp |
IP Rating | IP68 |
Height | 15.77mm |
Width | 15.01mm |
Housing Material | Thermoplastic |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +125°C |
Contact Plating | Nickel |
Contact Material | Copper Alloy |
