- RS stock no.:
- 520-0817
- Mfr. Part No.:
- UVR1C471MPD
- Manufacturer:
- Nichicon
350 Available in South Africa for same day despatch or collection. Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
375 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Price (Excl VAT) Each (In a Pack of 25)
R 5.011
(exc. VAT)
R 5.763
(inc. VAT)
units | Per unit | Per Pack* |
25 - 75 | R 5.011 | R 125.275 |
100 - 225 | R 4.886 | R 122.15 |
250 - 975 | R 4.739 | R 118.475 |
1000 - 2475 | R 4.55 | R 113.75 |
2500 + | R 4.368 | R 109.20 |
*price indicative |
- RS stock no.:
- 520-0817
- Mfr. Part No.:
- UVR1C471MPD
- Manufacturer:
- Nichicon
Technical data sheets
Legislation and Compliance
Product Details

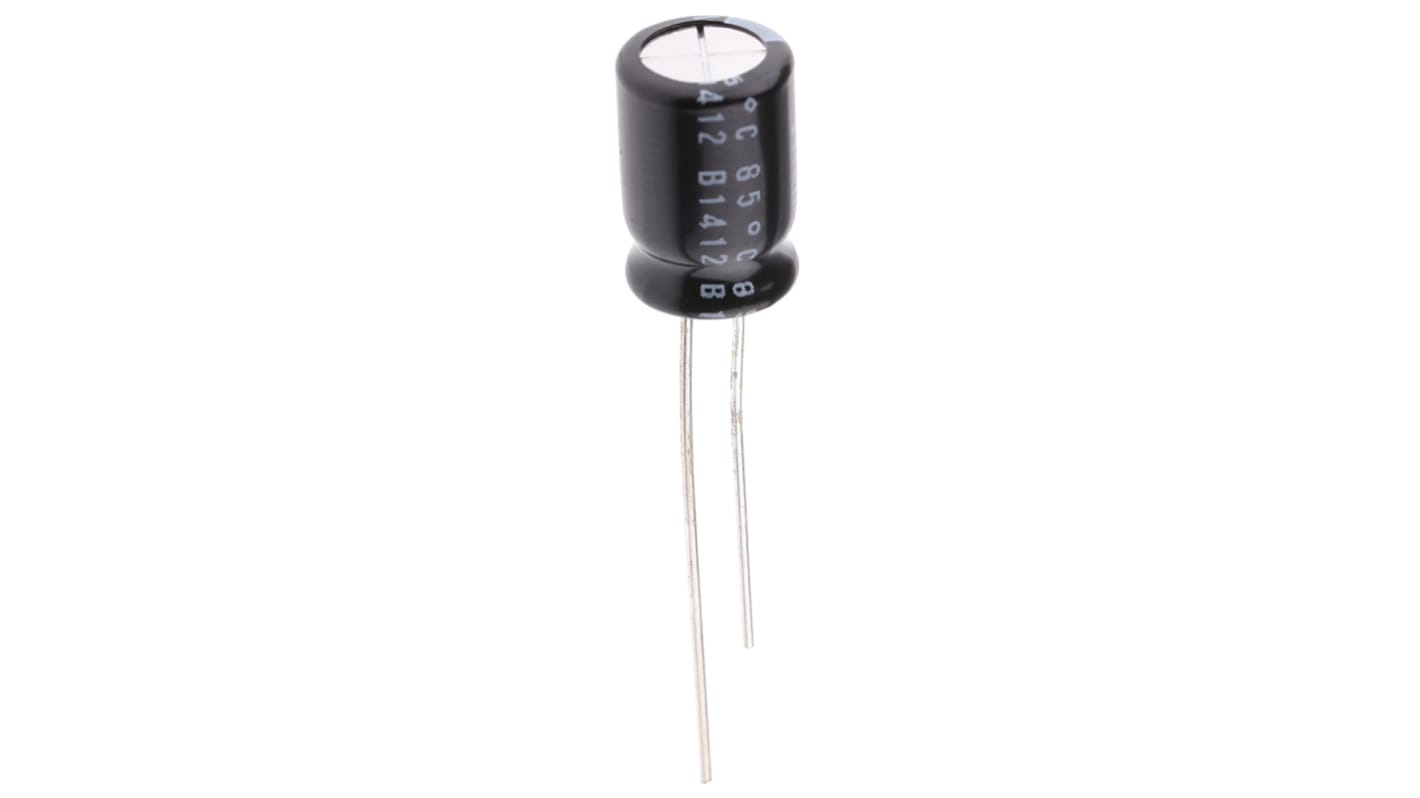

Nichicon VR Series General Purpose Electrolytic Capacitors
Nichicon VR Series Aluminium Electrolytic Capacitors are high reliability capacitors which have a rated life up to 2000 hours. The VR series capacitors offer a high temperature range, high voltage, low impedance and high ripple current.
Features & Benefits:
High reliability
High ripple current
Long life up to 2000 hours
Lead free reflow soldering
Capacitance values up to 33000 μF
High ripple current
Long life up to 2000 hours
Lead free reflow soldering
Capacitance values up to 33000 μF
Specification
Attribute | Value |
---|---|
Capacitance | 470µF |
Voltage | 16V dc |
Mounting Type | Radial, Through Hole |
Technology | Aluminium Electrolytic |
Dimensions | 8 (Dia.) x 11.5mm |
Height | 11.5mm |
Minimum Operating Temperature | -40°C |
Diameter | 8mm |
Maximum Operating Temperature | +85°C |
Lifetime | 2000h |
Lead Pitch | 3.5mm |
Series | VR |
Tolerance | ±20% |
Leakage Current | 3 μA, 4 μA |
Ripple Current | 440mA |
