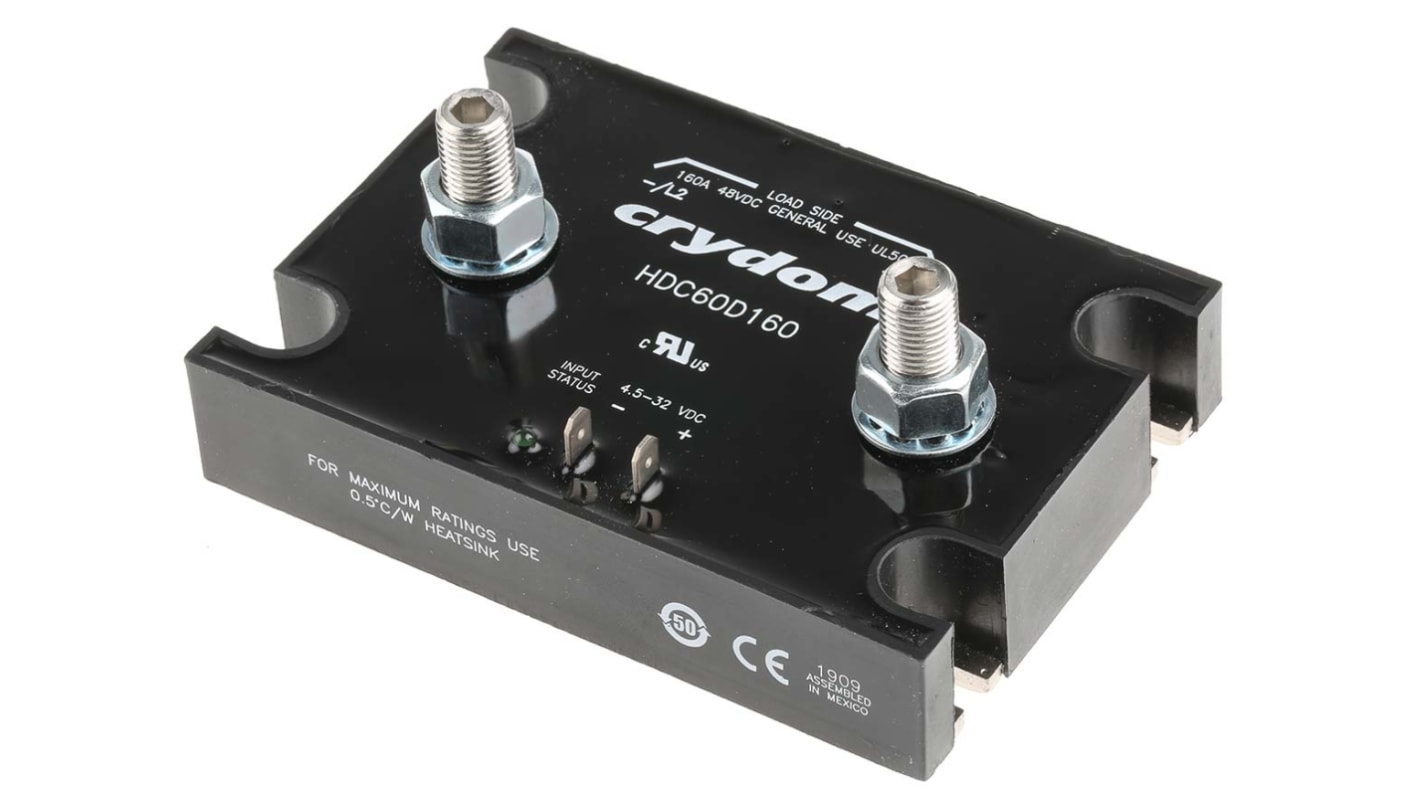

Sensata / Crydom HDC Series Solid State Relay, 160 A Load, Panel Mount, 48 V dc Load, 32 V dc Control
- RS stock no.:
- 776-1412
- Mfr. Part No.:
- HDC60D160
- Manufacturer:
- Sensata / Crydom
On back order for despatch 2024/07/02
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 4 874,49
(exc. VAT)
R 5 605,66
(inc. VAT)
| Units | Per unit |
| 1 + | R 4 874,49 |
- RS stock no.:
- 776-1412
- Mfr. Part No.:
- HDC60D160
- Manufacturer:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Panel Mount Solid State Relays- HDC Series
The H16WD series from Crydom offers a panel mounting solid state relay with current ratings of 120A to 160A @ 72 Vdc. These solid state relays are designed for control of high power DC loads such as coils, clutches, motors, and solenoids and can be used in a variety of applications including packaging, machinery, power supplies and process controls. The HDC series of solid state contactors are housed in a compact, robust industry standard 75x105mm panel mount package and are suited to harsh environments.
Single pole single throw normally open operation
LED status Indicator
Heavy duty stud terminals
Low on-state voltage drop
LED status Indicator
Heavy duty stud terminals
Low on-state voltage drop
DC Switching
Specification
Attribute | Value |
|---|---|
| Maximum Load Current | 160 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 48 V dc |
| Minimum Load Voltage | 7 V dc |
| Maximum Control Voltage | 32 V dc |
| Minimum Control Voltage | 4.5 V dc |
| Switching Type | DC |
| Control Voltage Range | 4.5 → 32 V dc |
| Minimum Load Current | 2.5 mA |
| Terminal Type | Quick Connect |
| Relay Type | Solid State Relay |
| Series | HDC |
| Load Voltage Range | 7 → 48V dc |
| Maximum Turn On Time | 8.5 μs, 90.5 μs |
| Dimensions | 104 x 20.1 x 73.5mm |
| Depth | 20.1mm |
| Minimum Operating Temperature | -30°C |
| Special Features | LED Status Indicator, Heavy Duty Stud Terminals |
| Height | 73.5mm |
| Length | 104mm |
| Operating Temperature Range | -30 → +80°C |
| Maximum Operating Temperature | +80°C |
| Off State Leakage Current | 0.1 mA |
