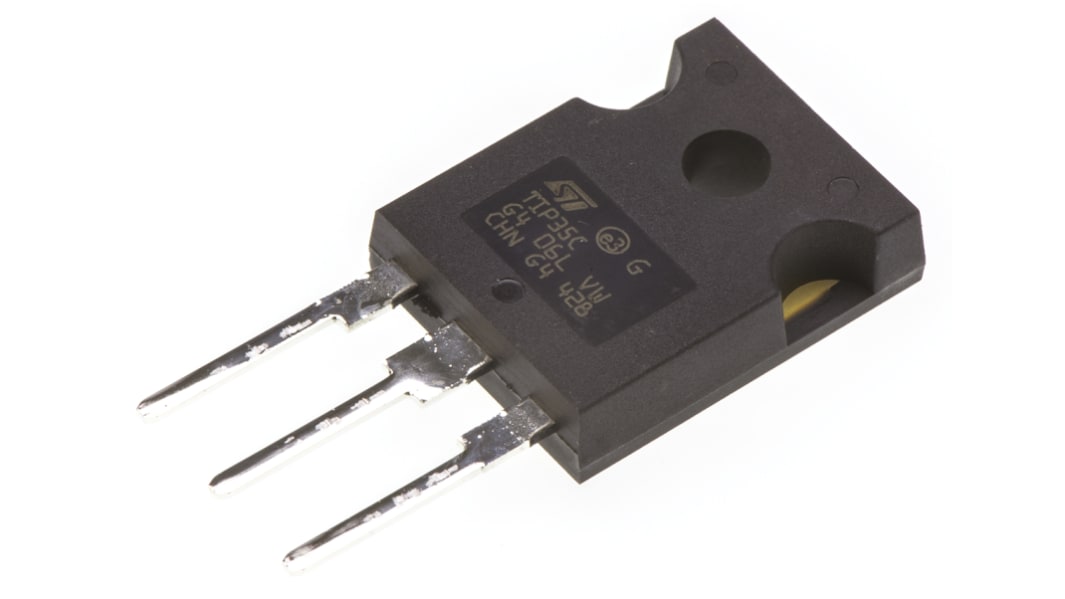

STMicroelectronics TIP35C NPN Transistor, 25 A, 100 V, 3-Pin TO-247
- RS stock no.:
- 251-3564
- Mfr. Part No.:
- TIP35C
- Manufacturer:
- STMicroelectronics
17 Available in South Africa for same day despatch or collection. Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
63 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Added
Price (Excl VAT) Each
R 37,62
(exc. VAT)
R 43,26
(inc. VAT)
| Units | Per unit |
| 1 - 9 | R 37,62 |
| 10 - 49 | R 36,87 |
| 50 - 149 | R 35,76 |
| 150 - 499 | R 34,33 |
| 500 + | R 32,96 |
- RS stock no.:
- 251-3564
- Mfr. Part No.:
- TIP35C
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
TIP35C/ TIP36C Complementary power transistors
ST Microelectronics presents its TIP35C/ TIP36C series of complementary power transistors. This type of transistor is designed for general purpose power amplification and switching such as output or driver stages. The TIP35C/ TIP36C series are specially manufactured in planar technology with base island layout, this results in the transistors showing exceptionally high gain performance whilst also having a very low saturation voltage.
Features and Benefits
- Low collector-emitter saturation voltage
- Complementary NPN - PNP transistors
Applications
- General purpose
- Audio amplifier
- Switching regulators, converters and power amplifiers
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Specification
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 25 A |
| Maximum Collector Emitter Voltage | 100 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 125 W |
| Minimum DC Current Gain | 15 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 100 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 3 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 20.15 x 15.75 x 5.15mm |
