Product Details

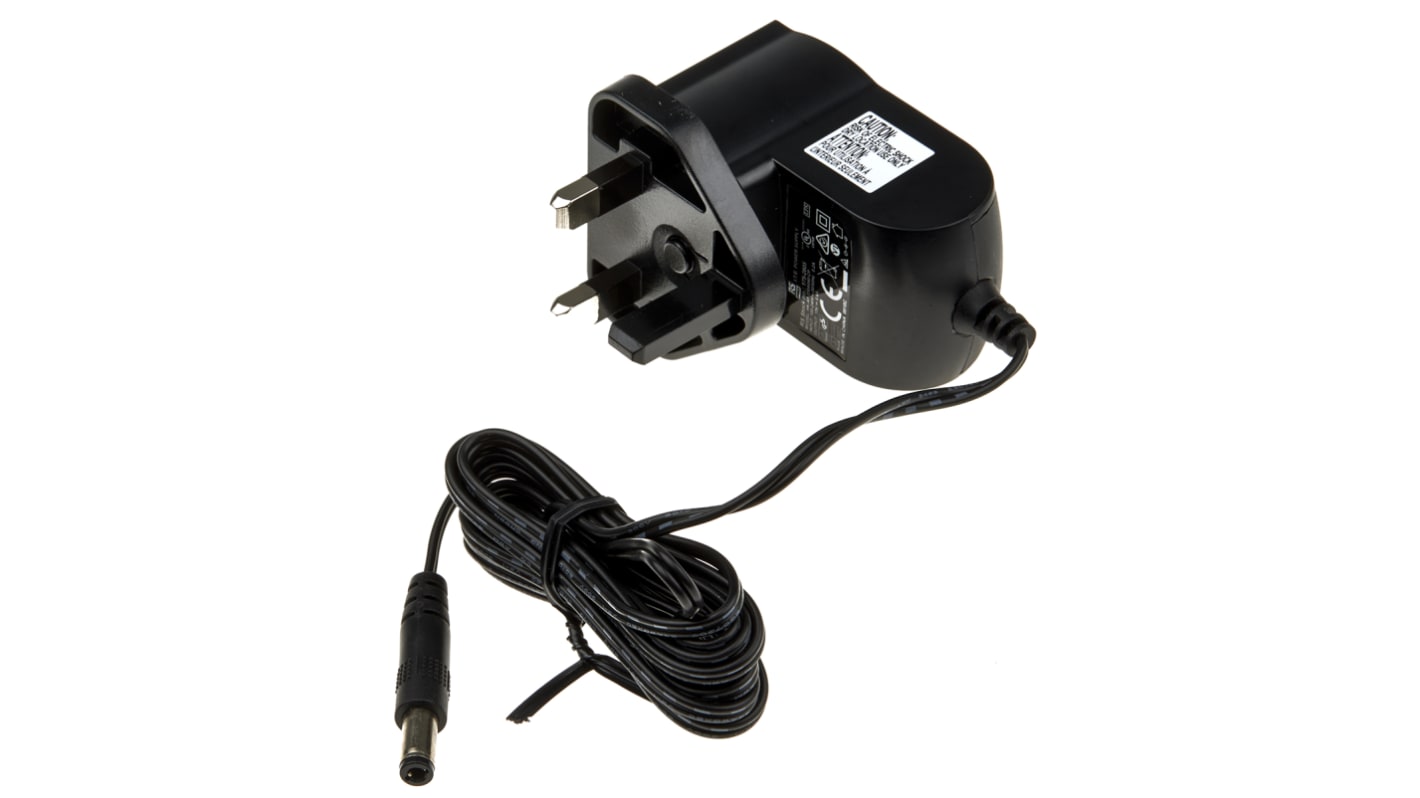

RS PRO Plug In Power Supply
The RS PRO AC/DC adapter is a high-quality and versatile adapter with an output voltage rating of 15VDC and a current rating of 400mA. It is designed to meet the requirements of level VI efficiency regulations. This high-reliability power supply unit is fully factory tested and has a universal voltage input.
Features and Benefits
• Universal input voltages of 90VAC to 264VAC
• Regulated power output of 6W
• Supplied with four interchangeable AC plugs (UK, Europe, US and Australia)
• Protection feature: input protection, output protection and short circuit protection
• Limited Power Source (LPS) adapter
• 2.1mm x 5.5mm connector
• 1 universal output
• Regulated power output of 6W
• Supplied with four interchangeable AC plugs (UK, Europe, US and Australia)
• Protection feature: input protection, output protection and short circuit protection
• Limited Power Source (LPS) adapter
• 2.1mm x 5.5mm connector
• 1 universal output
Applications
• Chargers and adapters
• LCD monitors
• PC power
• Industrial controls
• Internet of things
• LCD monitors
• PC power
• Industrial controls
• Internet of things
Certifications
• EN 55032
Specification
Attribute | Value |
---|---|
Adapter Type | Plug-In Adapter |
Plug Type | Interchangeable |
Output Voltage | 15V dc |
Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
Output Current | 400mA |
Maximum Temperature | +40°C |
Output Connector | 2.1 x 5.5 x 12 mm Centre Positive |
Input Connector | Universal Plug |
Number of Outputs | 1 |
Power Rating | 6W |
Regulated/Unregulated | Regulated |
Cable Length | 1.8m |
Standards Met | CB, CCC, CE, CETLus, FCC, PSE, RCM (C-Tick), TUV-GS, UL |
MTBF | 50000h |
Efficiency | 78.88% |
Length | 65mm |
Series | 25HK-AP |
Depth | 35mm |
Width | 38mm |
Load Regulation | ±5% |
Energy Efficiency Level | VI |
Minimum Temperature | 0°C |
Type | AC/DC Adapter |
